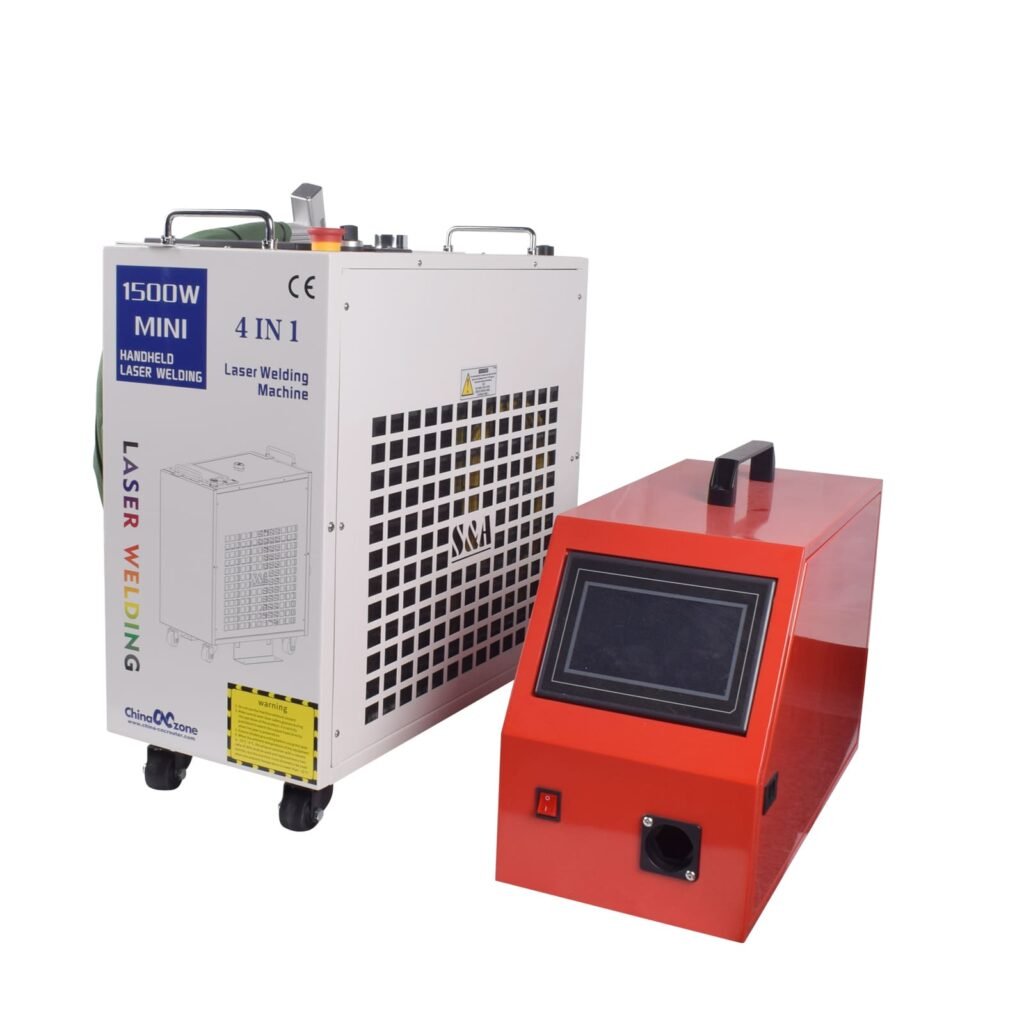

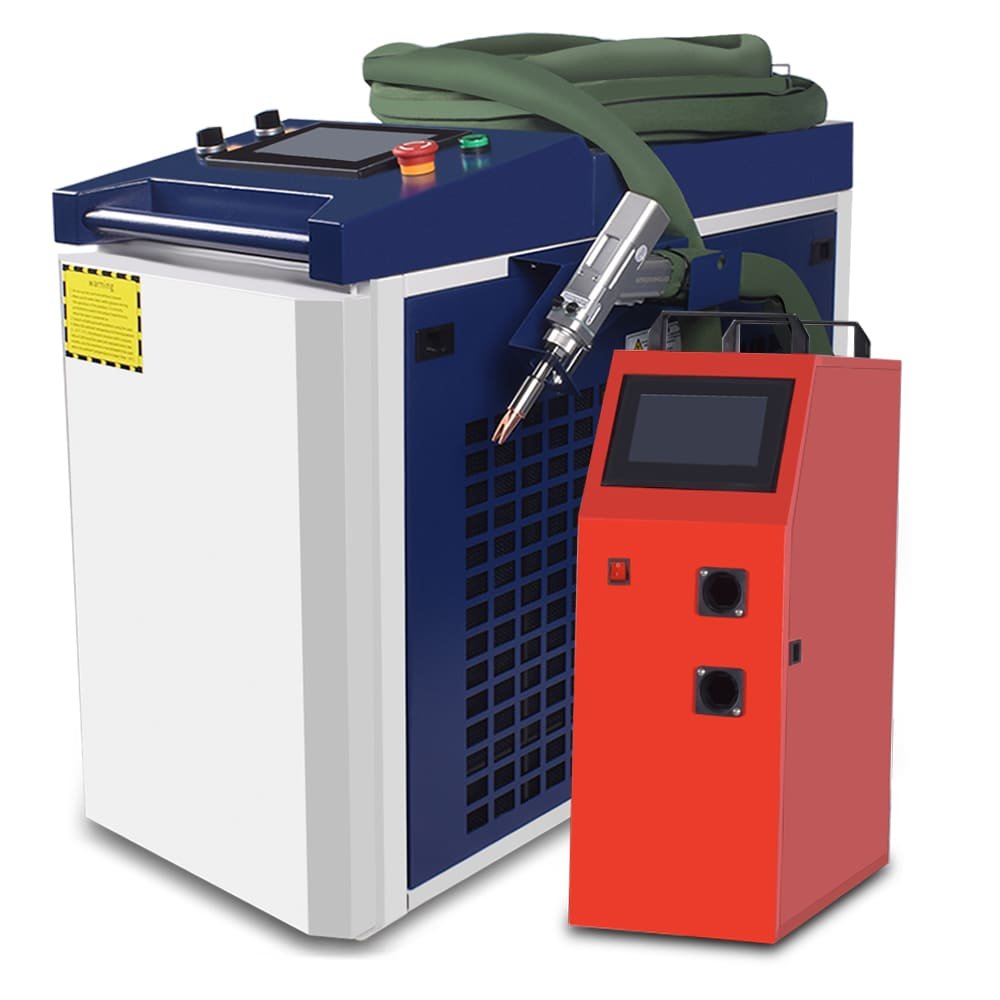

Water-Cooled Laser Welding Machine
A water-cooled laser welding machine is a specialized laser welding equipment that uses a high-powered laser beam to join or weld metals together. It is with built-in water tank for cooling the laser source and the main components, so it is with bigger size and heavier weight(120kg to 160kg) compared with the air cooled laser welding machine.(35KG to 56KG )
All of our water-cooled laser welding machine uses fiber laser , so they are fiber laser welding machine. Compared with traditional MIG and TIG welding, fiber laser welding is with fast speed and high precision.
Now we supply below hot water-cooled laser welding machines and all of them are handheld and moveable, so we also call them portabale and hanheld laser welding machine. They are with diffirent brand of laser sources, diffirent control systems and diffirent prices.
Handheld, widely used, price better, size smaller with lower price
1 Swing type

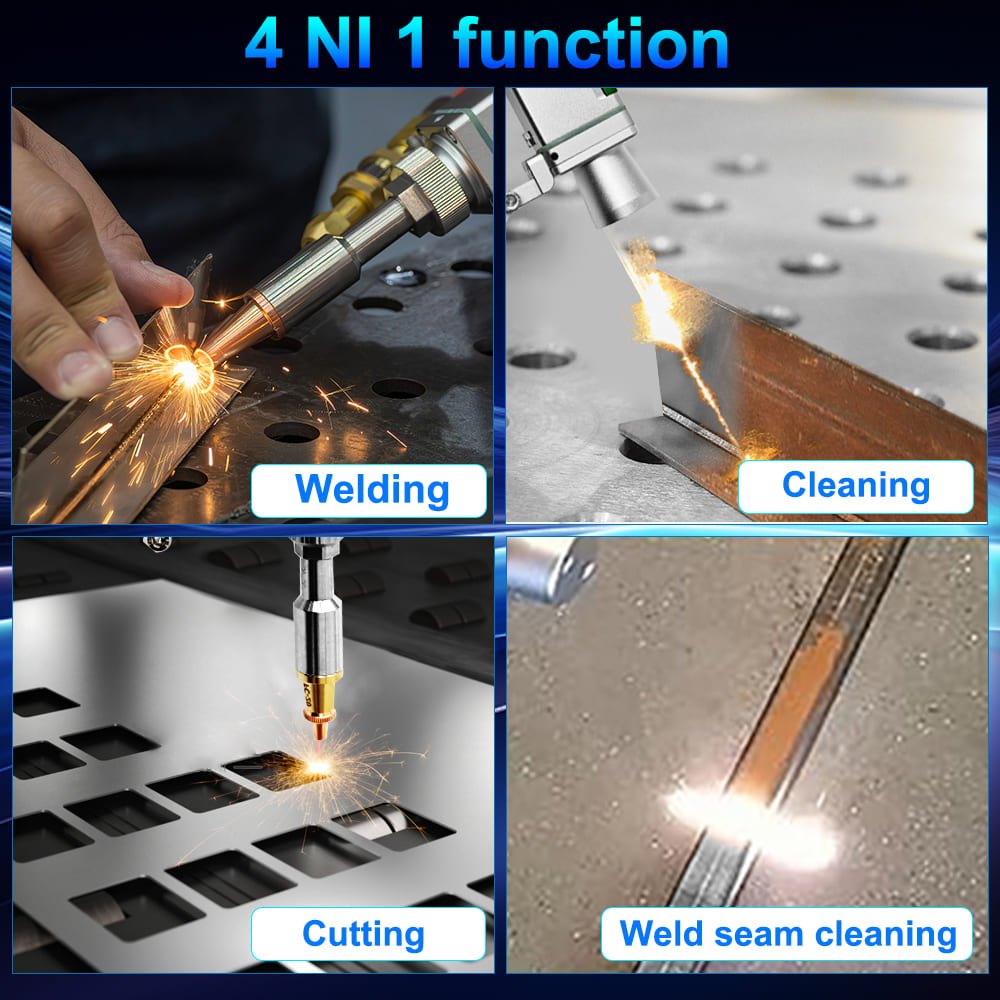

4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning
Materials it can weld: Metals like steel, aluminum, titanium, nickel alloys…..

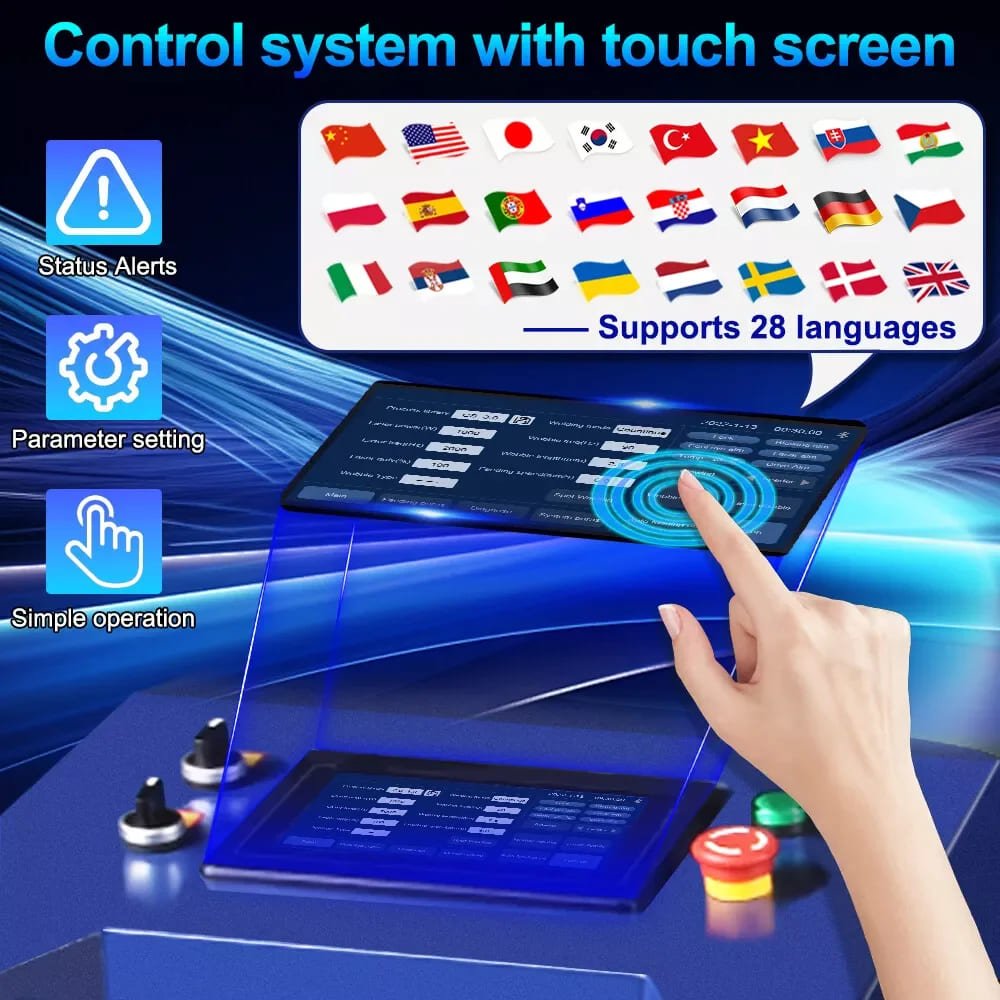

- Support Language: support English, French, Germany, spanish..... total diffirent 20 languages
- Laser power: 1500W/2000W/3000W
- Laser Source brand: RECI
- System Model: Single pendulum system
- Water Chiller: Hanli Water Chiller

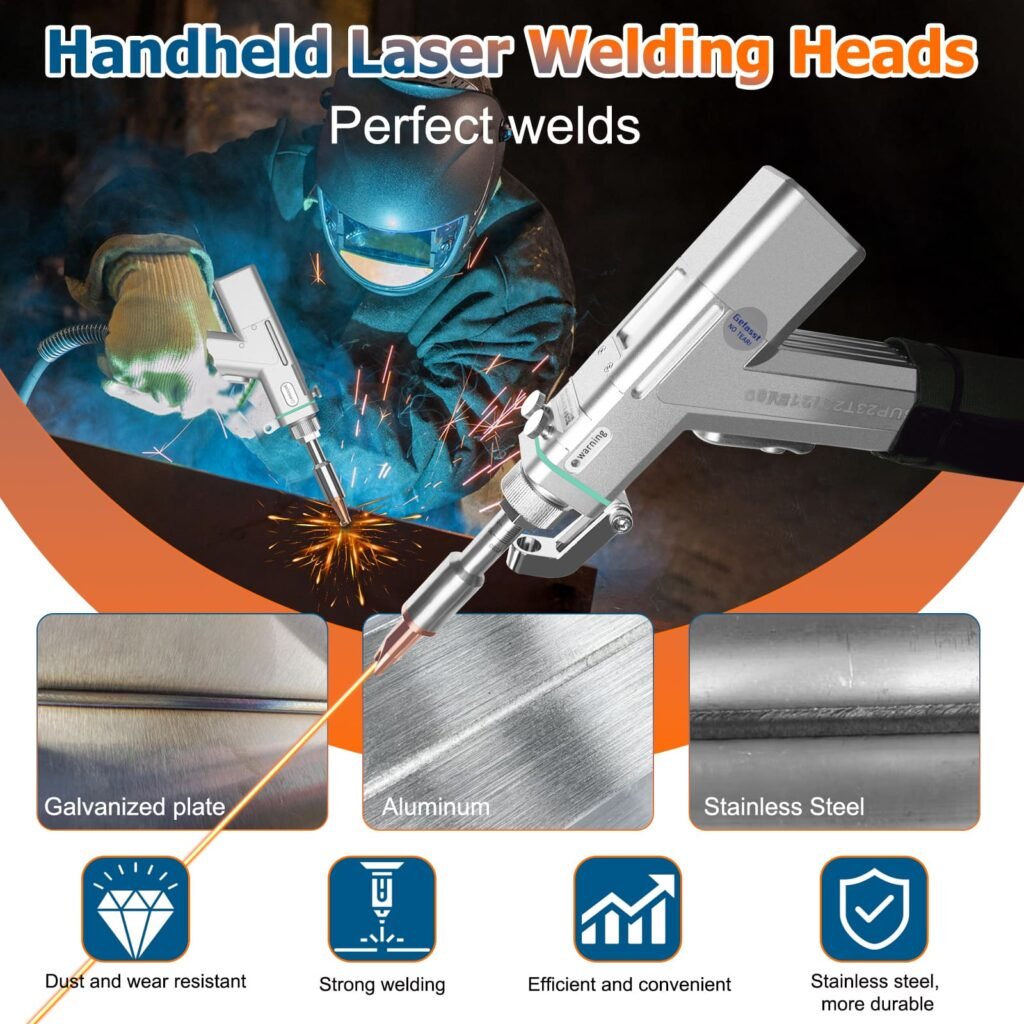

- Laser Gun Mode: HW980
- Laser Wavelength:1070nm
- Operating Mode:Continuous/Modulation
- Modulation frequency: 20khz
- Output fibercable length:10M
- Scan Width:0-5mm
- Input Voltage:220±10%，50/60Hz and 110±10%，50/60Hz
- Cooling method: Water Cooling
- Auto wire feeder: included
- Gross Weigh: 120KG
- Water tank capacity: 10L
Handheld, widely used, hot sale
1 Swing type
4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning
Materials it can weld: Metals like steel, aluminum, titanium, nickel alloys…..
- Support Language: support English, Chinese, Germany, spanish..... total 19 kinds of languages
- Laser power: 1500W/ 2000W/ 3000W
- Laser Source brand: BFL-CW15
- System Model: Single pendulum system
- Water Chiller: S&A CWFL-1500ANW08
- Laser Gun Mode:chaoqiang SUP23T
- Laser Wavelength:1070nm
- Operating Mode:Continuous/Modulation
- Modulation frequency: 20khz
- Output fibercable length:10M
- Scan Width:0-5mm
- Input Voltage:220±10%，50/60Hz and 110±10%，50/60Hz
- Visual Positioning: Red dot
- Cooling method: Water Cooling
- Auto wire feeder: included
- Gross Weigh: 120KG
- Water tank capacity: 10L
4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning, Handheld, widely used.
1 Swing type
Materials it can weld: Metals like steel, aluminum, titanium, nickel alloys…..
- Support Language: English, Chinese, Germany, spanish..... total 19 kinds language
- Laser power: 1500W/2000W/3000W
- Laser Source brand: Raycus
- System Model: Single pendulum system
- Water Chiller Model: S&A CWFL-1500ANW08
- Laser Gun Mode:chaoqiang SUP23T
- Laser Wavelength:1080±5nm
- Operating Mode:Continuous/Modulation
- Modulation frequency: 20khz
- Output fibercable length:10M
- Scan Width:0-5mm
- Input Voltage:220±10%，50/60Hz and 110±10%，50/60Hz
- Visual Positioning: Red dot
- Cooling method: Water Cooling
- Auto wire feeder: included
- Gross Weigh: 160KG for 1500W & 165KG for 2000W
- Water tank capacity: 10L
4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning, Handheld, widely used.
Dual pendulum system/ Supports 24-hour uninterrupted work/ 6 Kinds Swing type/ CE, FDA registered
Materials it can weld: Metals like steel, aluminum, titanium, nickel alloys…..
- Support Language: Chinese /English/Deutsch/ Turkish/ Russian/ Deutsch
- Laser power: 1500W/2000W/3000W
- Laser Source brand: Raycus
- System Model: Dual Pendulum
- Water Chiller Model: S&A CWFL-1500ANW08
- Laser Gun Mode:Relfar FWH30-D10C
- Total power: 5KW
- Laser Wavelength:1080±5nm
- Operating Mode:Continuous/Modulation
- Modulation frequency: 20khz
- Output fibercable length:10M
- Scan Width:0-5mm
- Input Voltage:220±10%，50/60Hz
- Visual Positioning: Red dot
- Cooling method: Water Cooling
- Auto wire feeder: included
- Gross Weigh: 160KG for 1500W & 165KG for 2000W
- Water tank capacity: 10L
LOOK FOR DISTRIBUTORS & AGENCIES WORLDWIDE
Laser welding
1. the weld is smooth and beautiful, the weld workpiece has no deformation, the weld is firm, and no
Subsequent grinding process is required, saving time and cost.Fast welding speed, 2~10 times faster than traditional welding.
2. Easy operating do not require any training
Welding seam beautiful smooth and beautiful, don’t need polish, save your time
No deformation or welding scar, welding the workpiece firmly.
3. easy maintenance
Laser welding has less consumption and long service life. Safer, more environmentally friendly.
4. Wildly used in kitchen and bathroom cabinet, stair lift, shelf, oven, stainless steel door and window
Guardrail, distribution box, stainless steel home.
Laser cleaning
1. Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restore the original base color.
2. Laser Oil Removal: Metal surface oil cleaning (can remove oxide layer at the same time)
3. Laser Color Removal: removes various colors including Auto Duco on various surfaces and cars
4. stripping plating (galvanized layer, aluminized layer, protective plating, etc.)
5. Removal of aluminum alloy, titanium alloy, copper alloy oxide layer
6. Pre-Weld Pretreatments: After laser cleaning pretreats the aluminum alloy, the welding porosity defects are effectively suppressed
7. Post-weld cleaning: Non-Contact NDT removal of post-weld oxide layer and slag residue
8. Aluminum alloy pulsed laser remove dirt and oxide film before welding
3 In 1 Welder Laser Soldering Machine Combo Laser Metal Cleaning Key Features

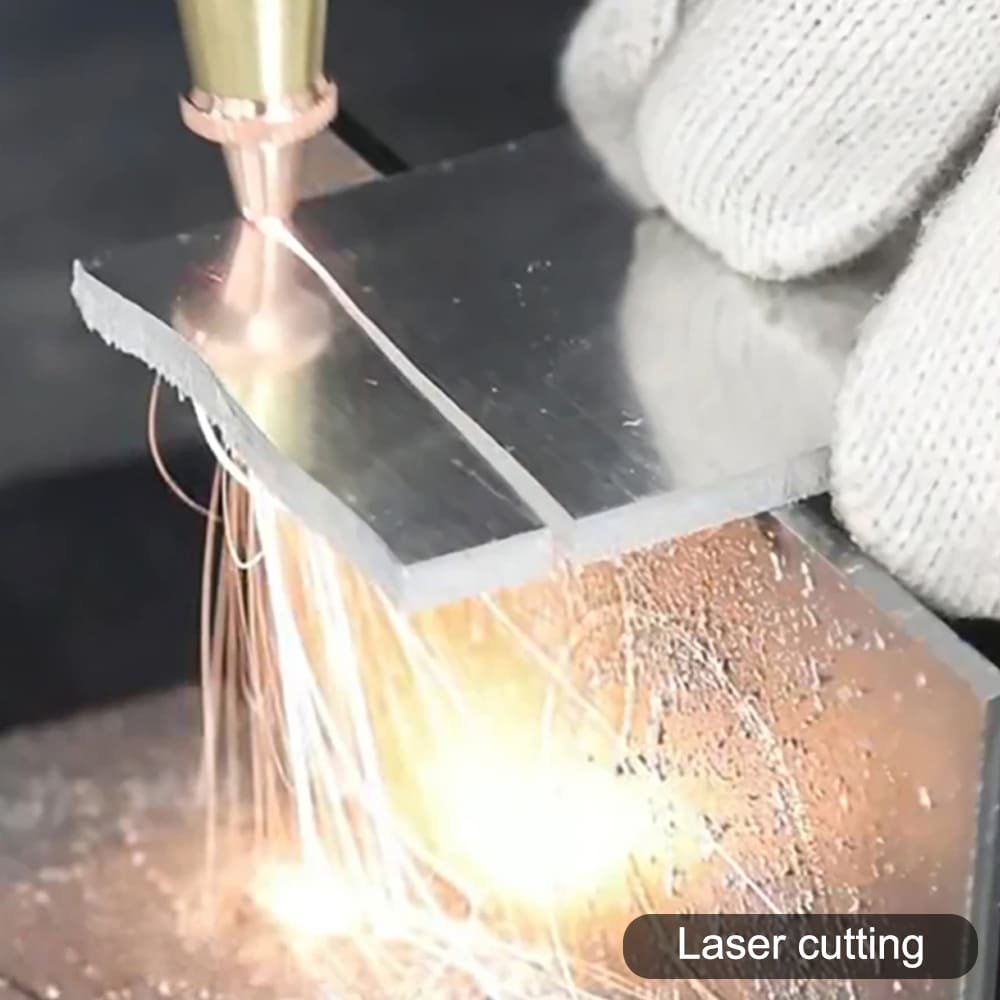

1. Three working modes, welding + cutting + cleaning. Simple switching, just need to replace the copper nozzle,switch the system
2. About fiber cable length
Default length is 10m, if you have other needs, we support shortening or lengthening.
3. Auxiliary gas: nitrogen or argon
If the sweat surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is OK.
4. Via wire feeder
It is the machine default configuration, we will send them together with the whole machine.
5. Machine warranty: 3 years for whole machine, 2 years for laser generator.
we also have powerful 5 in 1 handheld metal laser welding machine for lithium ion battery welding for your selection.
All of our water-cooled laser welding machines have 1500W, 2000W and 3000W models, and the larger power consumption, the faster working speed and the thicker welding material as below.
LOOK FOR DISTRIBUTORS & AGENCIES WORLDWIDE
LOOK FOR DISTRIBUTORS & AGENCIES WORLDWIDE
Scotle Technology Group Co. Ltd. , founded in 2006, is a leading laser welding machine manufacturer and laser equipment supplier from China, and we are specializing in the development and manufacturing for laser equipments such as laser marking machine, laser welding machine and laser cleaning machine. Headquartered in Shenzhen, we also have branches in Huizhou. We are committed to provide high-quality laser equipments and related technical services
Our core value
- Customer first: focal on our customers’ needs and strive to provide our best.
- Innovation: Keep our technology updated according to the market need.
- Teamwork: We are a team and working together to provide professional and fast support.
- Honesty and responsibility: we are resiponsible for each product made by our factory.
Our core product series:
- Fiber Laser welding machine
- Laser cleaning machine
- Laser marking machine
Select Scotle, get your profit increase by 30% ！！！
Three types: air-cooled, water-cooled, platform automatic laser welding machine. The former two are hanldheld Laser welding machine.
According to mutifunction: 4 in 1 and 5 in1. 4 in1 include laser welding, laser cutting, laser cleaning and laser weld seam cleaning. The 5 in 1 add lithium battery laser welding function.
All of them are fiber laser welding machine.
For air-cooled handheld laser welding machine: 700W, 1200W and 1500W, for water cooled handheld: 1000W, 1500W, 2000W, and 3000W. For automatic ones: 1500W, 2000W and 3000W.
Weld common metals like carbon steel, stainless steel, aluminum, and galvanized steel, different power laser source can welding diffirent material and material thickness. The larger the thicker and harder.
CE, Rohs, SGS, FDA……all our laser welding machine got through the strict test and meet the industry high standards.
We have trademark CNCZONE registered in European, and VAT in Germany and Poland.
Our warehouse, your backyard.
We can ship from our China warehouse by express or sea according to your needs. We also have local warehouse in Germany, Poland, Austrilia, Canada, CAUS , NJUS, and UK.
