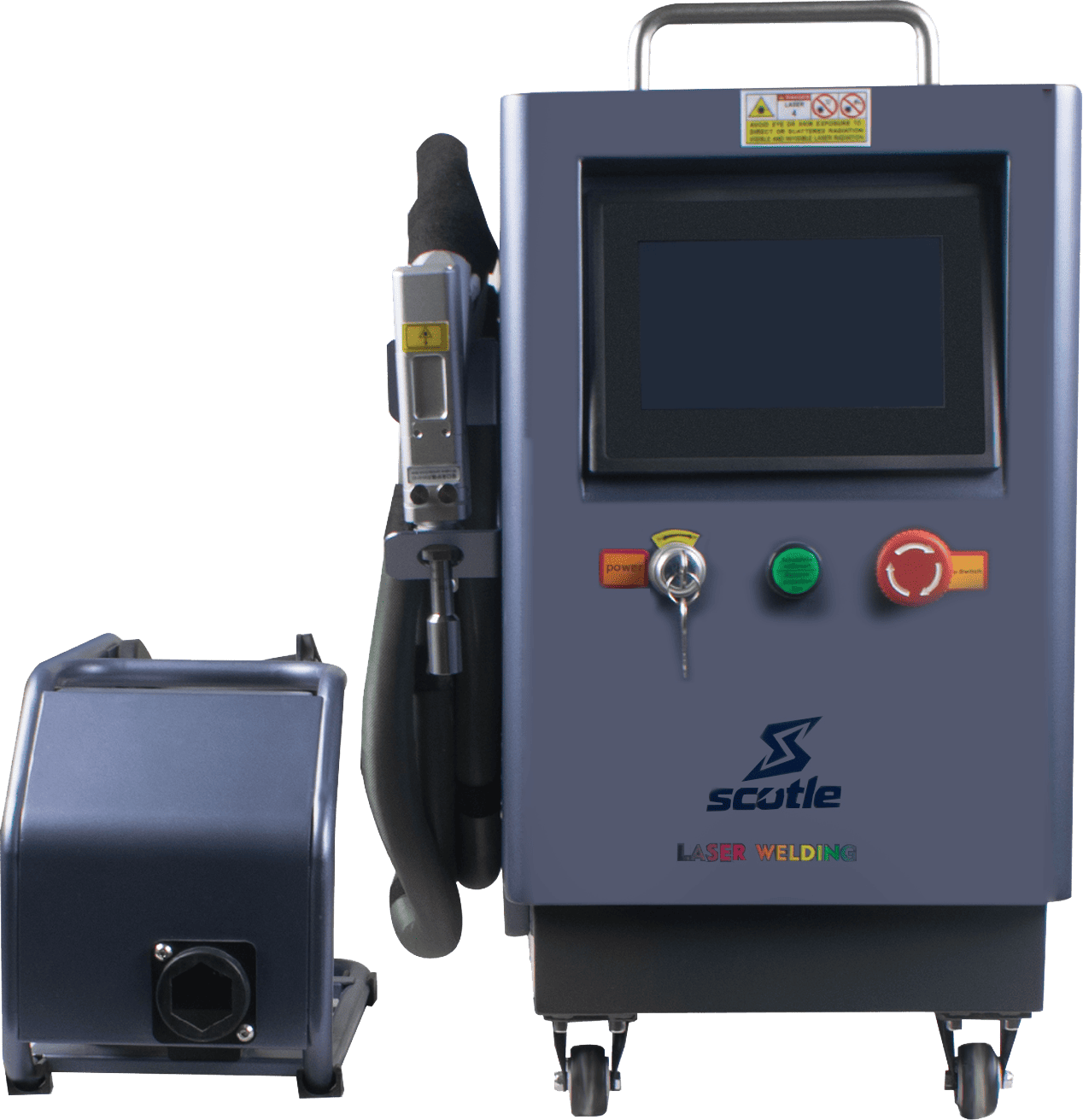

Air Cooled Laser Welding Machine

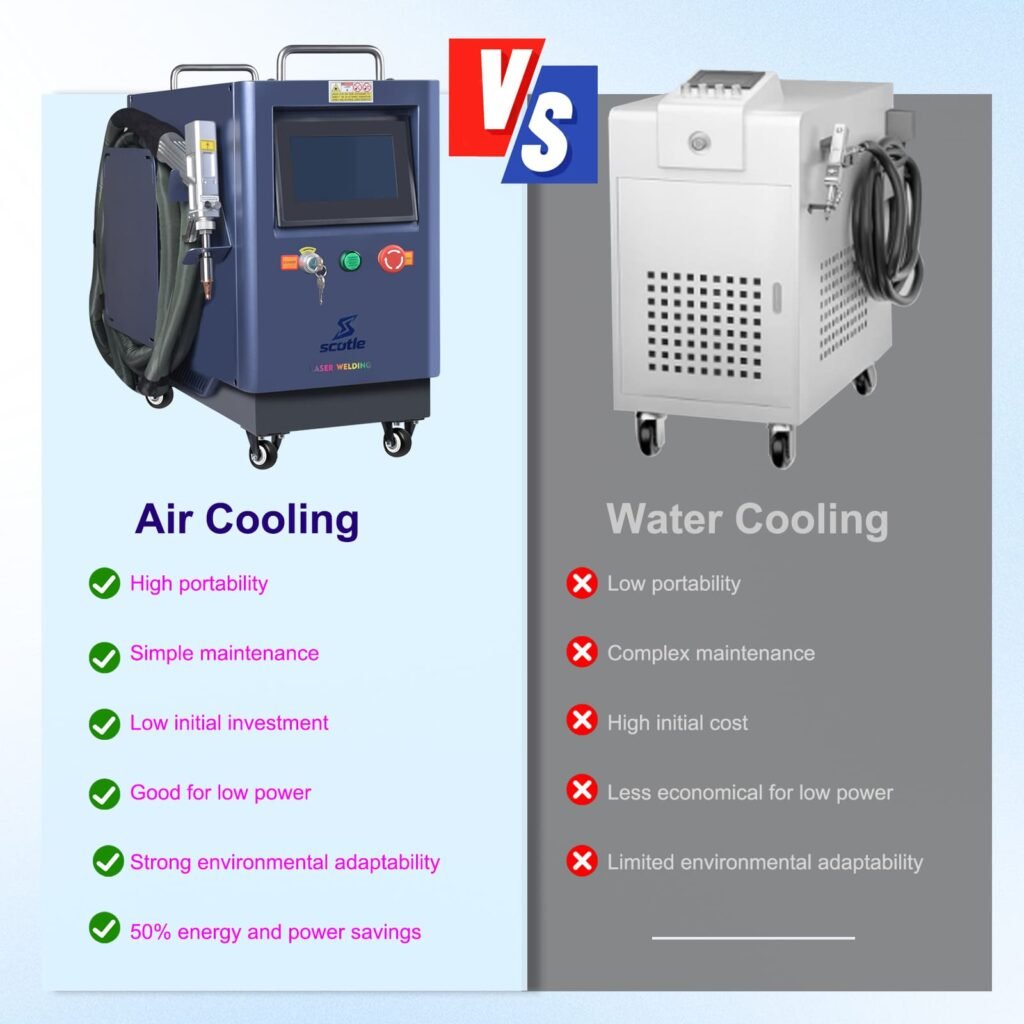

An air-cooled laser welding machine is a type of laser welding equipment that uses air for cooling the laser source and main components instead of water. This is a new cooling method in laser welding field. Compared with the water-cooled laser welding machine, an air cooled one does not need a big water tank, so it is can be made much smaller and lighter, that’s why we also call it a mini laser welding machine or a small laser welding machine.
Below are our main types of air cooled models for your selection, all of them are handheld laser welding machines and apply fiber laser, so they are also fiber laser welding machine.
- Laser Source model:F7
- Maximum output power:700W
- Cooling method:Forced air cooling
- Laser source size:373*304*130mm
- Weight: ≤25kg
- Center wavelength: 1080±10nm
- working temperature:-20℃-45℃
- Fiber length: 10m/32.8inch
- Working mode: continuous/Modulation pulse
- Working voltage: 220V 50HZ
- Total power & Maximum current: 1.7KW 7.8A
- Machine Size:50*32*42cm
- Aluminum welding thickness: 2.0mm(MAX 2.5mm)
Air cooling: Small size, light weight, energy saving, no need water during working, latest Technology with more powerful welding cutting ability.

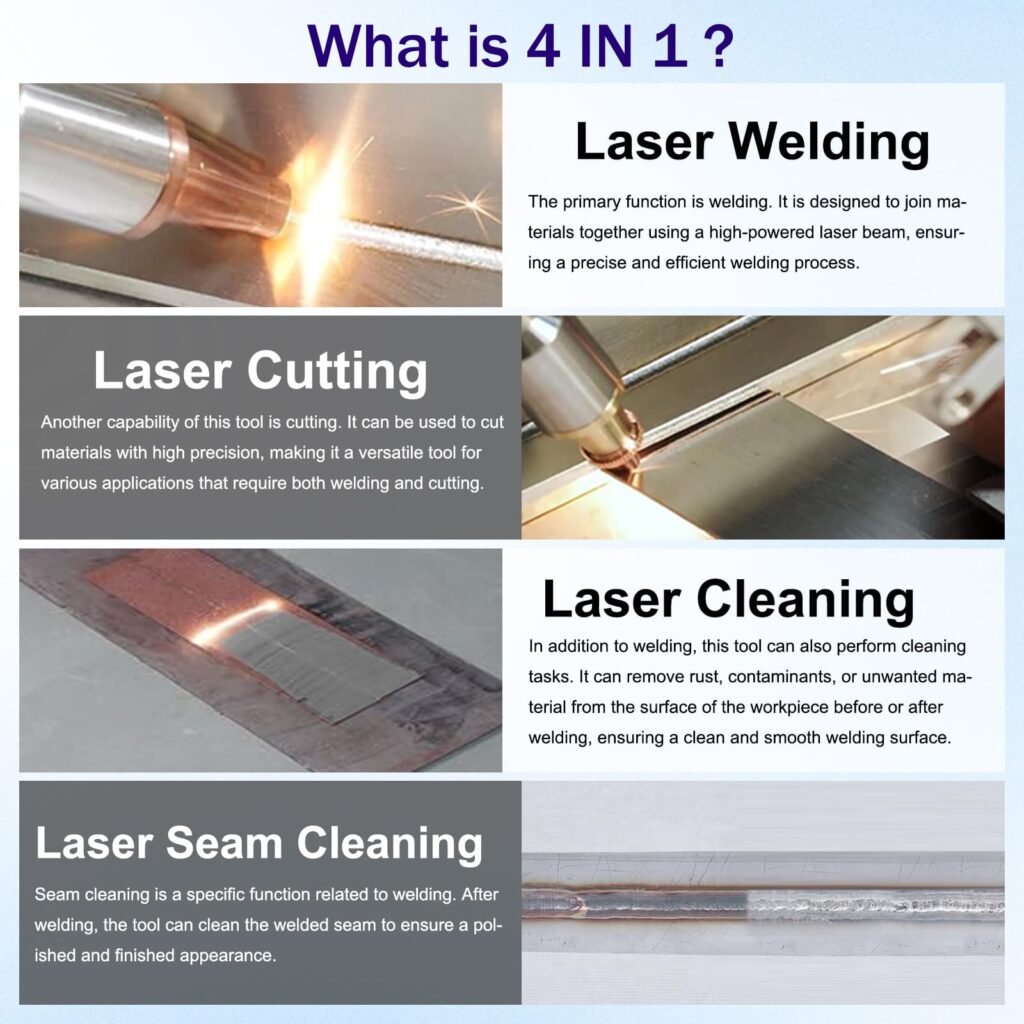

4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning

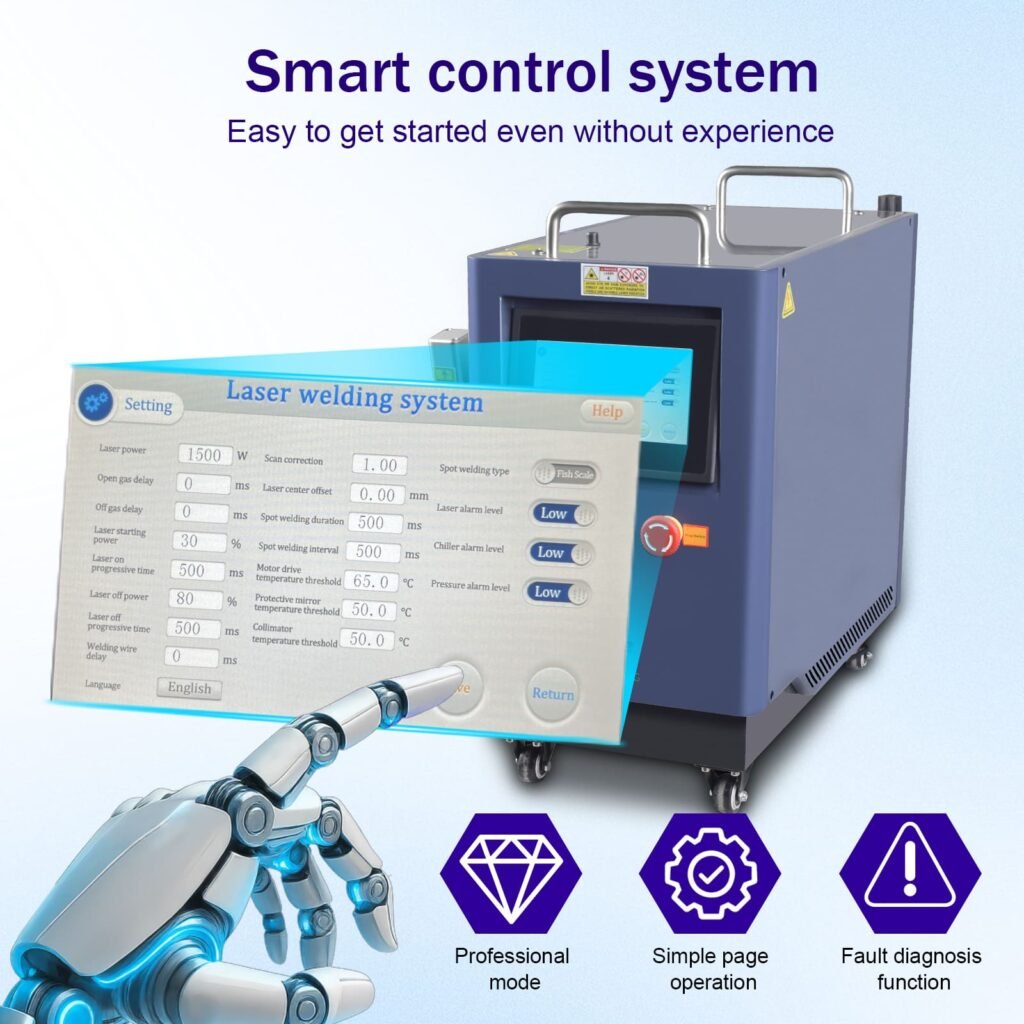

Easy operate with intelligent touch screen.

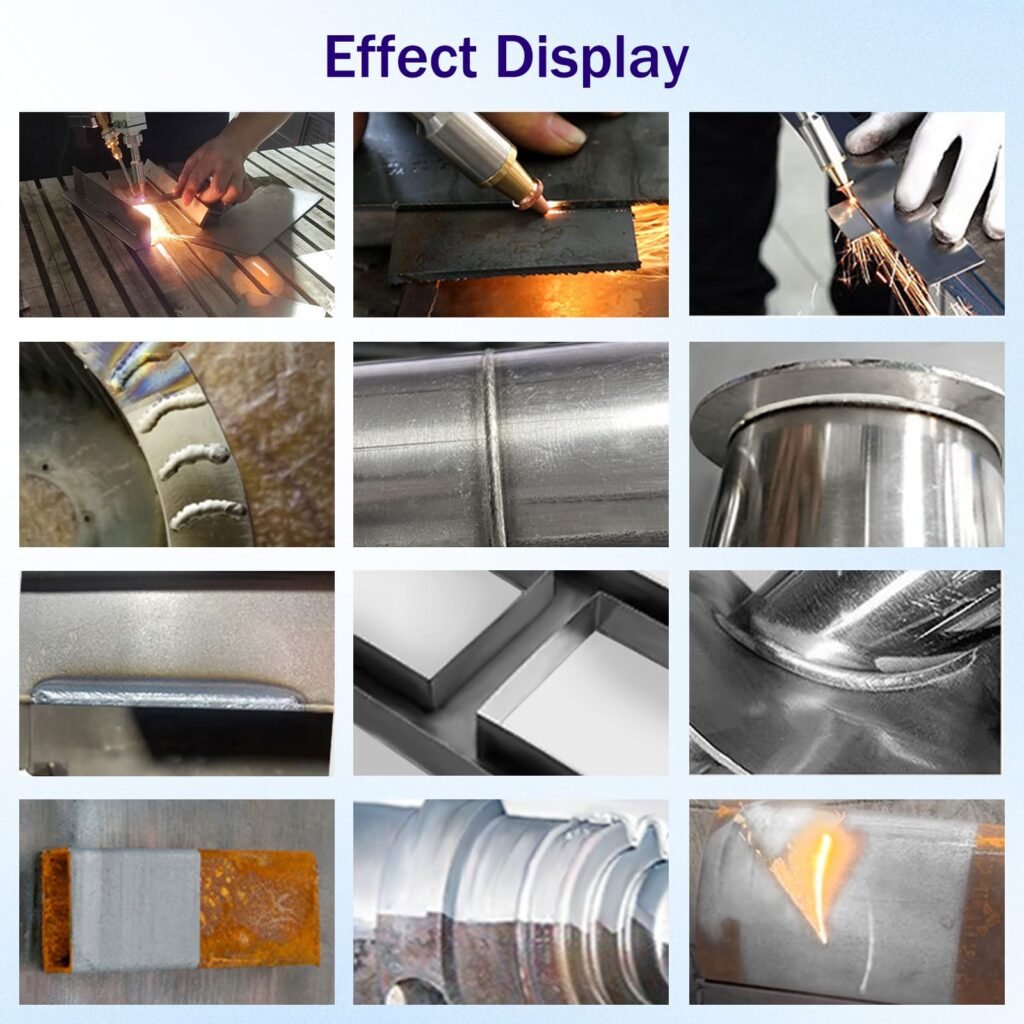

Materials it can weld: Metals like steel, aluminum, titanium, nickel alloys, etc. Both similar and dissimilar metals. Suitable for welding thin and thick materials with accuracy.Capable of welding complex designs and small parts….
- Laser Source model:F12C
- Maximum output power:1200W
- Cooling method:Forced air cooling
- Laser source size:434*402*130mm
- Weight: ≤32kg
- Center wavelength: 1080±10nm
- working temperature:-20℃-45℃
- Fiber length: 10m/32.8inch
- Working mode: continuous/Modulation pulse
- Working voltage: 220V 50HZ
- Total power & Maximum current: 2.8KW 12.8A
- Machine Size:56*32*50cm
- Aluminum welding thickness: 1200W 2.5mm(MAX 3.0mm)/ 1500W 3.0(MAX 3.5mm)
Materials it can weld: Metals like stainless steel, aluminum, titanium, nickel alloys, etc. Both similar and dissimilar metals. Suitable for welding thin and thick materials with accuracy.Capable of welding complex designs and small parts….
4 in 1 multi-functional:laser welding, laser cutting, laser cleaning and laser weld seam cleaning
The difference between 1200W and 1500W is: the later can welding thicker matrial.
LOOK FOR DISTRIBUTORS & AGENCIES WORLDWIDE
Contact us for wholesale price Now!
For less than 2000W laser welding machine, air cooled one is more powerful, for example, a 700W air-cooled laser welding machine can weld max 3.5mm thickness stainless steel, but for a water-cooled one, the power outputs need to get to 1000W.
Actually, the air cooled laser welding machine is becoming more and more popular in the laser welding equipment market now. Because it has its remarkable features as below:

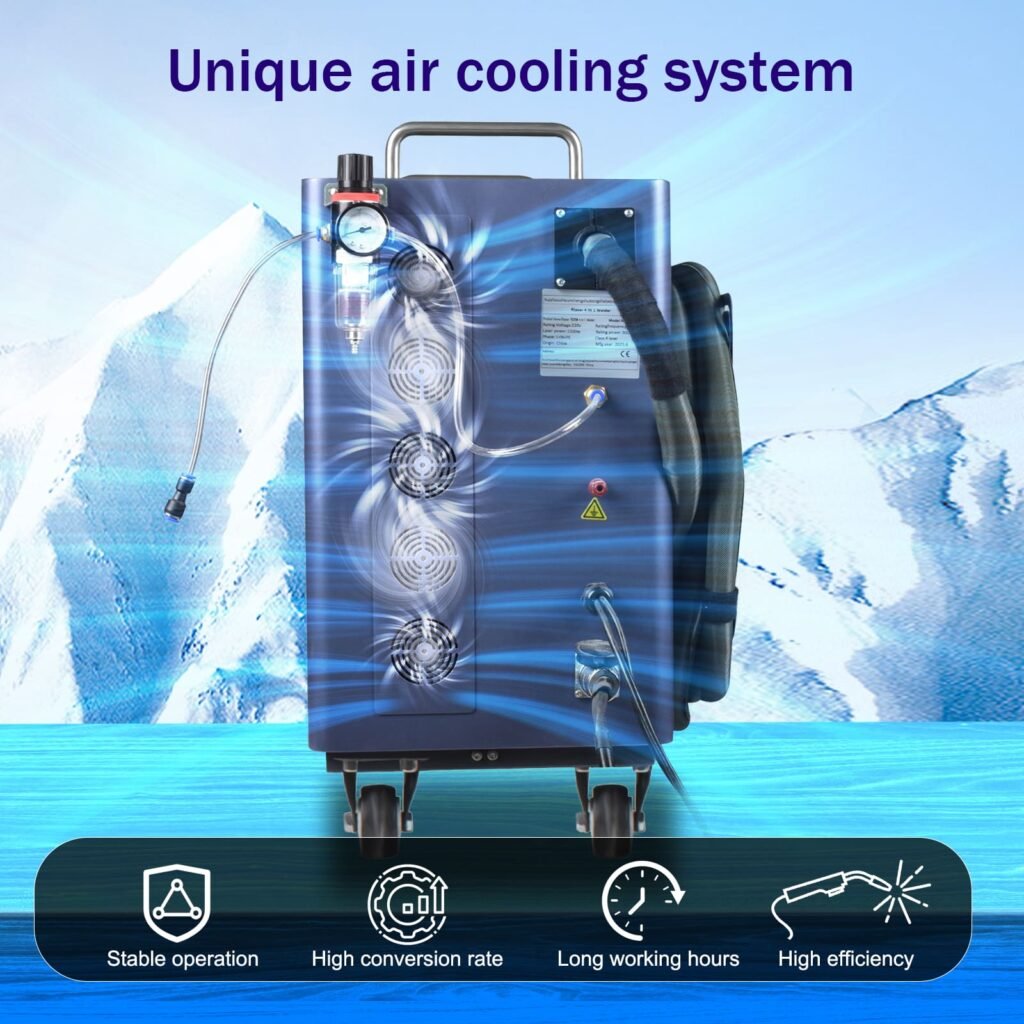

1. Use air cooling system, don’t require a big water tank. Reduce maintenance cost compared with water-cooled ones.

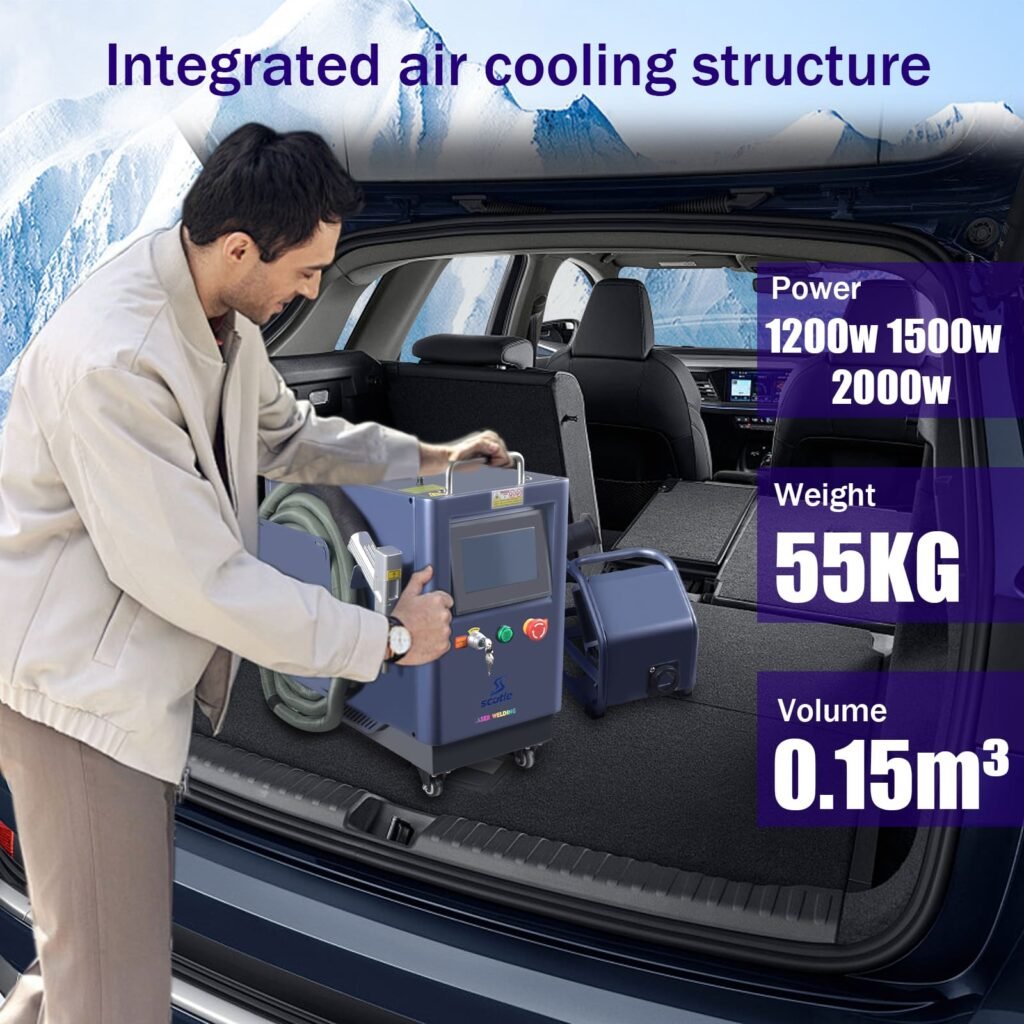

2. Lightweight, smaller size, handheld and highly portable and can easily fit into the trunk of a car, allowing for on-site welding operations.

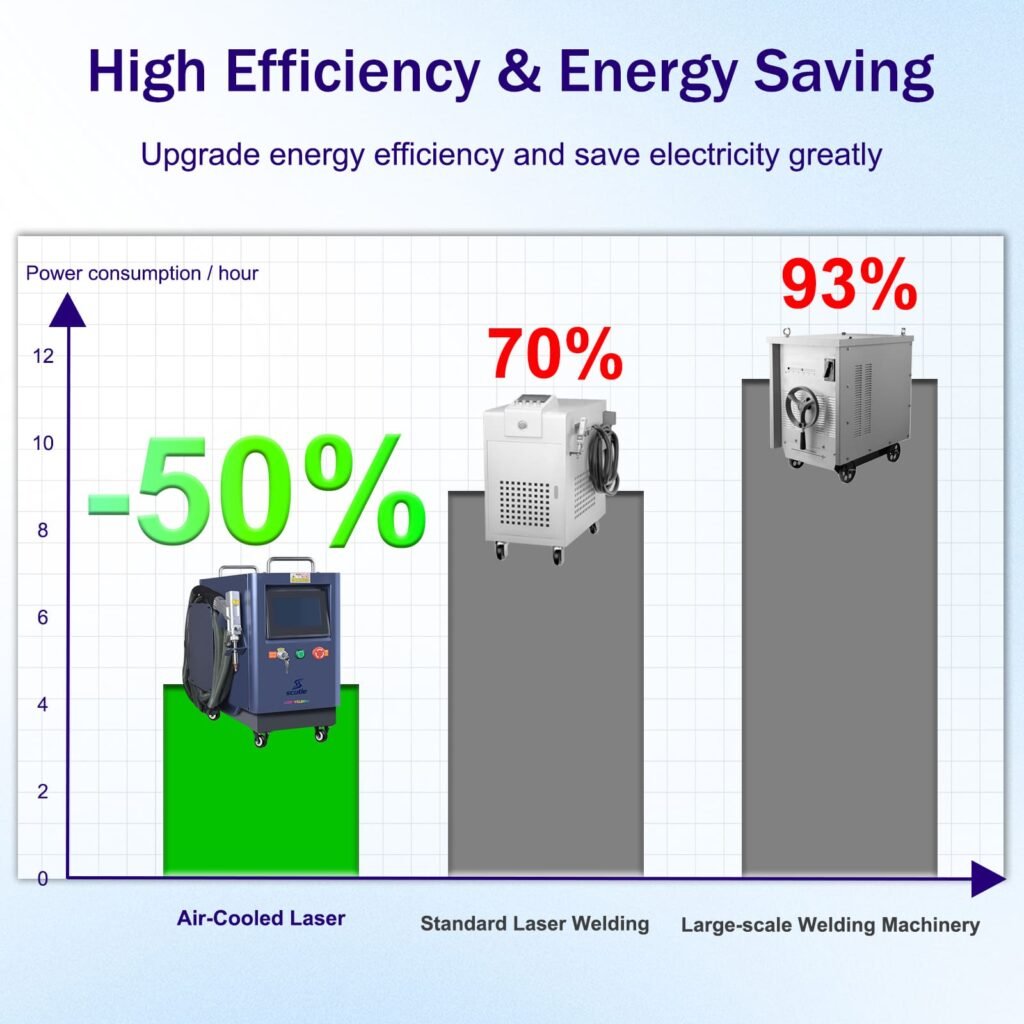

3.They are commonly fiber laser welding machine with lower power output less than 2000W, can get 50% energy saving compared with water-cooled ones. Scotle manufactures 700W, 1200W and 1500W air Cooled handheld laser welding machine for your selection.
4. Widely used for welding diffirent materails such as stainless steel, carbon steel, aluminum alloys, and so on.
5. Provide high welding speed, clean and precise welds, minimal deformation, and reduced post-processing requirements.
6. User-friendly: touchscreen controls and pre-programmed welding parameters for different materials and thicknesses.
When selecting an air-cooled laser welding machine, there are several key factors to consider:
1. Laser power and thickness capacity
The laser power determines the maximum material thickness that can be welded. For air-cooled machines, typical power ranges from 1000-1500W, capable of welding up to 4-6mm thick steel. Higher power allows welding thicker materials.
2. Cooling apacity
Air-cooled laser welding machine rely on fans for cooling, which limits their duty cycle compared to water-cooled units. They are best suited for short welds or thin materials where overheating is less of a concern.
3. Portability
A major advantage of air-cooled handheld laser welding machie is their compact size and lack of external cooling equipment, making them highly portable for on-site work. Evaluate the machine’s weight and dimensions based on your mobility needs.
4.Material Compatibility
Most handheld laser welding machine can weld common metals like carbon steel, stainless steel, aluminum, and galvanized steel. Ensure the model supports the materials you need to weld.
5.Additional Features
Some air-cooled laser welding machine offer multi-functionality like cutting, cleaning, or wire feeders for filler wire addition. Assess if these capabilities are required for your applications. Scotle supply 4 in 1 and 5 in i handheld laser welding machines with wire feeder including.
6.Cost
Air-cooled handheld laser welding typically cost $6,000-$25,000, with higher-end models offering more power and features. Determine your budget while considering the machine’s capabilities.
Scotle is a professional air-cooled handheld laser welding machine manufacturer, funaction powerful, price competitive, Contact us now for discont today!
LOOK FOR DISTRIBUTORS & AGENCIES WORLDWIDE
Scotle Technology Group Co. Ltd. , founded in 2006, is a leading laser welding machine manufacturer and laser equipment supplier from China, and we are specializing in the development and manufacturing for laser equipments such as laser marking machine, laser welding machine and laser cleaning machine. Headquartered in Shenzhen, we also have branches in Huizhou. We are committed to provide high-quality laser equipments and related technical services.
Our core value
- Customer first: focal on our customers’ needs and strive to provide our best.
- Innovation: Keep our technology updated according to the market need.
- Teamwork: We are a team and working together to provide professional and fast support.
- Honesty and responsibility: we are resiponsible for each product made by our factory.
Our core product series:
- Fiber Laser welding machine
- Laser cleaning machine
- Laser marking machine
Select Scotle, get your profit increase by 30% ！！！
Three types: air-cooled, water-cooled, platform automatic laser welding machine. The former two are hanldheld Laser welding machine.
According to mutifunction: 4 in 1 and 5 in1. 4 in1 include laser welding, laser cutting, laser cleaning and laser weld seam cleaning. The 5 in 1 add lithium battery laser welding function.
All of them are fiber laser welding machine.
For air-cooled handheld laser welding machine: 700W, 1200W and 1500W, for water cooled handheld: 1000W, 1500W, 2000W, and 3000W. For automatic ones: 1500W, 2000W and 3000W.
Weld common metals like carbon steel, stainless steel, aluminum, and galvanized steel, different power laser source can welding diffirent material and material thickness. The larger the thicker and harder.
CE, Rohs, SGS, FDA……all our laser welding machine got through the strict test and meet the industry high standards.
We have trademark CNCZONE registered in European, and VAT in Germany and Poland.
Our warehouse, your backyard.
We can ship from our China warehouse by express or sea according to your needs. We also have local warehouse in Germany, Poland, Austrilia, Canada, CAUS , NJUS, and UK.
