Description

✅ Summary for SCOTLE 1500W / 2000W / 3000W Portable Metal Laser Welding Machine (1500W/2000W/3000W)

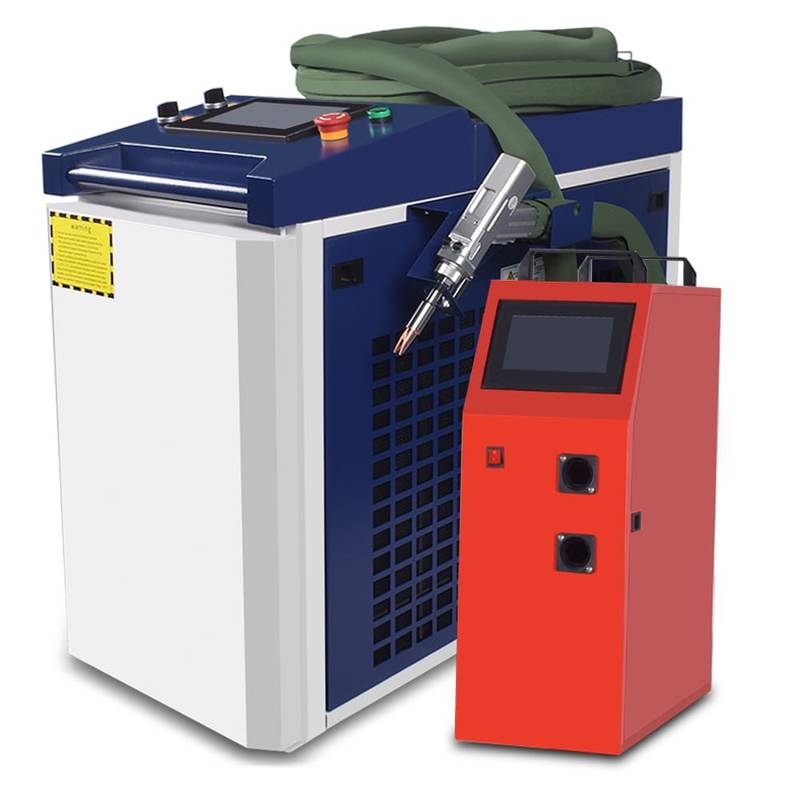

The SCOTLE handheld metal laser welding machine is an advanced 4-in-1 solution combining welding, cutting, cleaning, and weld seam cleaning in a single, portable unit. Powered by Raycus fiber laser sources, it supports 1500W, 2000W, and 3000W options, delivering stable performance with high photoelectric conversion efficiency. The ergonomic handheld gun features a lightweight design and intuitive controls, making it easy to switch between modes and adjust parameters for different materials, including aluminum, stainless steel, carbon steel and more.

It is a single-pendulum handheld laser welding machine with a fixed laser output mode: “–”. For more flexibility, we also offer a dual-pendulum 4-in-1 laser welding machine with 9 selectable laser output modes for your choice.

✅ Core Parts for SCOTLE 1500W / 2000W / 3000W Portable Metal Laser Welding Machine

PS: We offer two wire feeder options for your selection: the single wire feeder (SUP-AMF-A) and the double wire feeder (SUP-AMF-D). The single wire feeder works with 1500W, 2000W, and 3000W handheld laser welding machines, while the double wire feeder is designed exclusively for the 3000W model.

✅Main features for this SCOTLE 1500W / 2000W / 3000W Portable Metal Laser Welding Machine for Aluminum, Stainless Steel

• Portable laser welding machine
  with 360-degree caster wheels, easy to move



• With smart touchscreen control interface
  Easy-to-operate touchscreen control panel with simple mode switching and parameter adjustments for scan speed, width, power, and frequency.

•

•  This handheld metal laser welding machine supports 19 languages for global users.
• 4-in-1 laser welding machine with multi-functional
  Supports laser welding, laser cutting, laser cleaning, and weld seam cleaning—one machine for multiple tasks, improving efficiency and reducing equipment investment.

•

• Lightweight and Ergonomic Handheld Gun
  Handheld gun weighs only 0.75kg, designed with QBH connector, collimating lens, galvo-lens, and focusing system for high-precision welding and cleaning.

•

• Powerful Raycus Fiber Laser Source
  Equipped with trusted Raycus fiber laser with 1500W / 2000W / 3000W options. Delivers stable beam quality and high photoelectric conversion efficiency (>33%).

• Water-Cooled System for Long-Term Stability and save maintain cost
  Efficient cooling ensures stable performance in continuous operation. Anti-freeze guidance included for cold environments.

•  Equipped with 6 safety features,
  Built-in interlocking safety system, safety labels, and protective housing for operator protection.



• Certified & Internationally Compliant
  CE, SGS, FDA, and UDEM certificates for laser welding machine compliance and safety assurance. Ready for export and safe use worldwide.



  ---

  ---

  ✅Technical details for this SCOTLE 1500W / 2000W / 3000W Portable Laser Welding Machine for Aluminum & Stainless Steel

• For SUP23T handheld laser welding gun



• For Raycus fiber laser source



• For Water cooling system



  ---

  ---

  ✅Packing list for this SCOTLE 1500W / 2000W / 3000W Portable Laser Welding Machine for Aluminum & Stainless Steel



  ---

  ---

  ✅This SCOTLE 1500W / 2000W / 3000W Portable Laser Welding Machine for Aluminum & Stainless Steel can be widely used on various metals.
