A compact and reliable jewelry laser welding solution equipped with a CCD camera and microscope, designed for high-precision spot welding on gold and silver with minimal heat impact.
Product Description

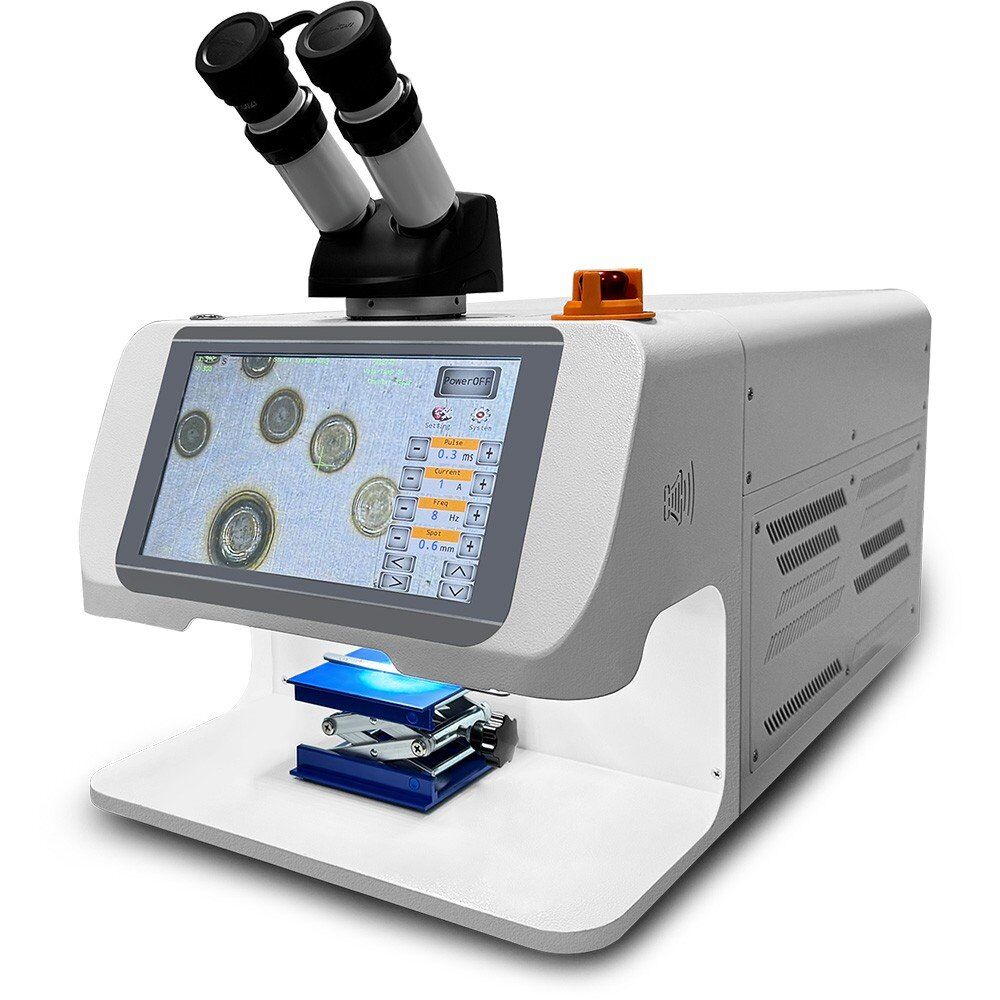

The 200W Nd:YAG Jewelry Laser Spot Welding Machine is a professional micro-welding solution designed specifically for jewelry manufacturing and repair. It enables jewelers to perform precise, clean, and controlled spot welding on gold, silver, and other precious metals while minimizing thermal impact on surrounding areas.
Powered by a pulsed Nd:YAG laser, the machine delivers high peak energy in extremely short pulses, producing strong and consistent welds with a very small heat-affected zone. This makes it especially suitable for delicate jewelry operations such as ring resizing, chain repair, prong reinforcement, hole filling, and fine joint welding, even on thin or sensitive workpieces.
The integrated CCD camera and microscope dual-view system provides clear, real-time observation of the welding area, allowing operators to position the laser spot accurately and work with confidence. Combined with an intuitive touchscreen control interface, key welding parameters—including pulse width, frequency, and spot size—can be adjusted easily to match different materials and application requirements.
Key Features – Scotle Mini10 Jewelry Laser Welding Machine
200W Pulsed Nd:YAG Laser Source (1064nm)
Delivers stable, high peak pulse energy for precise jewelry spot welding with excellent control.
CCD Camera + Microscope Dual-View System
Integrated visual positioning system enables accurate laser spot alignment and clear real-time observation.
Adjustable Welding Parameters
Pulse width, frequency, current, and spot size can be finely adjusted to match different materials and welding requirements.
High-Precision Spot Welding Capability
Supports spot diameters from 0.2–3.0 mm, suitable for micro welding on fine jewelry components.
Touchscreen Control Interface
User-friendly TFT touchscreen allows intuitive parameter setting, monitoring, and operation.
Compact Desktop Design (Mini10)
Space-saving tabletop structure, ideal for jewelry workshops, repair studios, and training labs.
Integrated Cooling System
Built-in cooling ensures stable performance during continuous operation.
Stable Nd:YAG Laser Cavity with Long Service Life
Designed for reliable daily use with consistent welding quality.
Multi-Language System Support
Supports multiple languages for international users (customizable).
Foot Pedal Operation Support
Enables hands-free control for improved welding efficiency and precision.
Technical Details – Scotle Mini10 Jewelry Laser Welding Machine
| Item | Specification |
|---|---|
| Model | Mini10 |
| Laser Type | Nd:YAG solid-state laser |
| Laser Wavelength | 1064 nm |
| Laser Power | 200 W (optional higher power supported) |
| Operating Mode | Pulsed laser |
| Pulse Width | 0.1 – 10 ms |
| Pulse Frequency | 0 – 15 Hz |
| Spot Diameter | 0.2 – 3.0 mm |
| Maximum Welding Depth | 0.1 – 1.5 mm |
| Positioning Method | Reticle positioning |
| Visual System | CCD camera + microscope (dual-view) |
| Control Interface | TFT touchscreen control panel |
| Cooling System | Integrated water cooling (small chiller) |
| Power Supply | AC 220V / 50Hz |
| Power Consumption | Approx. 4 KVA |
| Machine Dimensions | 600 × 350 × 290 mm (L × W × H) |
| Net Weight | Approx. 39 kg |
| Working Environment | Temperature: –20°C to 40°C / Humidity: 45–75% |
| Supported Languages | Multi-language system (customizable) |
| Operation Method | Touchscreen + foot pedal |
More Product Images Showing the Advantages of the Scotle Mini10 Jewelry Laser Welding Machine
Yes. The Laser Spot Welding machine is suitable for precision jewelry repair and other delicate welding applications.
However, welding results for diamond prongs, settings, and small tips depend on the material, structure, thickness, and welding parameters. Since these specific applications have not been fully tested, we recommend sending us samples for a welding test before ordering.
The minimum laser spot size of the Scotle air-cooled desktop model is 0.2 mm.
The adjustable spot-size range varies depending on the machine model.
The machine is suitable for welding various metals and alloys, including:
Actual welding results depend on the material’s reflectivity, thermal conductivity, thickness, joint design, and welding parameters.
The reference welding depths vary by model:
These figures are reference values rather than guaranteed results. Actual welding depth depends on the material, joint structure, laser energy, pulse width, spot size, and operator technique.
Sample testing is recommended for applications with specific welding-depth requirements.
The machine supports argon or nitrogen shielding gas.
Shielding gas is recommended when:
The appropriate shielding gas should be selected according to the material and applicatio
The standard machine is primarily manually operated.
The operator positions the workpiece using the manual worktable, adjusts the focus, observes the welding area through the microscope or CCD display, and triggers the laser using the foot pedal.
Specifications may vary according to the selected configuration.
The machine does not include a pre-installed process library.
However, it supports saving and recalling user-defined welding parameters, making it easier to reuse settings for similar materials and applications.
Rotary-axis compatibility depends on the machine model, structure, and control system.
Some models may support an optional rotary fixture, while others do not. Please contact Scotle to confirm compatibility before ordering.
| Machine model | Screen size | Screen magnification | Microscope magnification |
|---|---|---|---|
| Scotle 200W air-cooled desktop model | 10.8 inches | Up to 25× | 10× |
| Scotle Mini7 air-cooled desktop model | 7 inches | Up to 20× | 10× |
| Scotle 200W water-cooled vertical model | 7 inches | Up to 20× | 10× |
Display and microscope specifications may vary according to the selected configuration.
The standard microscope has a fixed optical magnification and cannot be continuously adjusted.
Please contact Scotle if your application requires a different viewing configuration.
.
The CCD camera uses a 700 TVL imaging chip and provides a clear, real-time view of the welding area for positioning and precision jewelry repair.
The exact camera and display configuration may vary by machine model.
The standard optical lenses are manufactured in China and selected according to the machine’s optical-system requirements.
Both air-cooled and water-cooled models are available.
Please select the cooling method according to the machine model, working environment, and expected operating time.
The standard configuration generally includes:
The included accessories may vary by machine model and order configuration. Please refer to the final quotation and packing list.
Common consumables and replacement parts include:
The service life of the xenon lamp depends on the operating frequency, output energy, pulse width, cooling performance, and maintenance conditions.
There is no fixed replacement interval for every user.
The xenon lamp should be inspected and replaced according to its actual condition, operating frequency, output stability, and accumulated usage. Regular maintenance helps maintain stable welding performance.
Language availability depends on the machine model and controller version.
Please confirm your required operating language with Scotle before ordering.
Yes. Operators can adjust parameters such as laser energy, pulse width, frequency, spot size, and other available settings according to the material and welding requirements.
Parameter availability may vary depending on the model and control system.
Yes. Sample testing is recommended when you have specific requirements for welding depth, appearance, precision, material compatibility, or production efficiency.
Please send us the material information, thickness, application requirements, and sample photos. Physical samples can also be arranged for testing when necessary.
