A professional 200W water-cooled Nd:YAG jewelry laser welding machine with CCD and microscope, designed for precise, stable welding of gold and silver jewelry with minimal heat impact.
Product Description

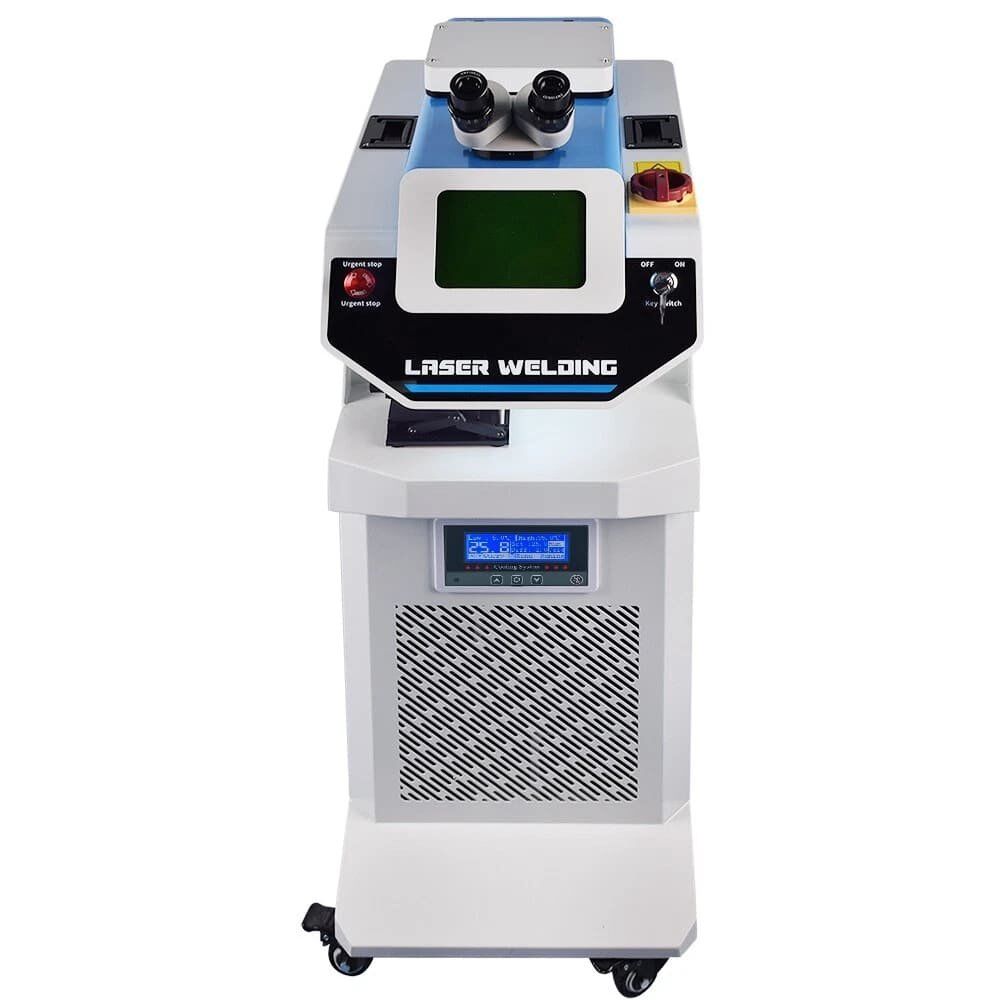

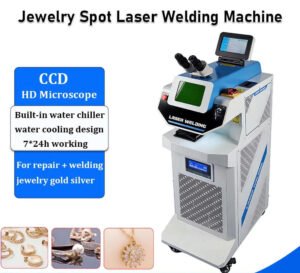

The Scotle 200W Water-Cooled Vertical Nd:YAG Jewelry Laser Welding Machine is designed for precise and stable welding of gold, silver, and fine jewelry materials. Its industrial water-cooling system ensures reliable performance during long working hours without overheating.
Equipped with a microscope and CCD camera, the machine enables accurate positioning and clear real-time observation, delivering clean welds with minimal heat impact and deformation. It is ideal for spot welding, hole filling, prong welding, and jewelry repair, helping professionals improve efficiency while protecting valuable materials.
Why Choose This Jewelry Laser Welding Machine?
✅ Stable Performance for Long Working Hours
The industrial water-cooled system allows continuous, high-power operation without overheating, making it ideal for busy jewelry workshops and long production runs.
✅ High Precision with Minimal Material Damage
The Nd:YAG 1064 nm pulsed laser delivers clean, controlled welds with a very small heat-affected zone, protecting delicate gold and silver jewelry from deformation or discoloration.
✅ Accurate Welding with Clear Visibility
The combination of microscope and CCD camera provides precise positioning and real-time observation, helping operators weld exactly where needed and reduce rework.
✅ Flexible for Multiple Jewelry Applications
Adjustable pulse energy, frequency, and spot size make the machine suitable for spot welding, hole filling, prong repair, inlay welding, and fine detail restoration.
✅ Professional Vertical Design for Better Stability
The floor-standing vertical structure offers improved stability and operator comfort compared to desktop machines, supporting consistent welding quality over time.
✅ Lower Operating Risk and Higher Efficiency
Non-contact laser welding reduces material waste, avoids consumables, and improves productivity—helping jewelers save time and protect valuable materials.
Technical Details – Jewelry Laser Welding Machine
| Item | Specification |
|---|---|
| Model | YME-200W-VI |
| Laser Type | Nd:YAG pulsed laser |
| Laser Wavelength | 1064 nm |
| Maximum Laser Power | 200 W |
| Laser Frequency | 1–30 Hz |
| Pulse Width | 0.1–10 ms |
| Spot Size Adjustment Range | 0.3–2.0 mm |
| Focusing System | Imported ceramic focusing cavity |

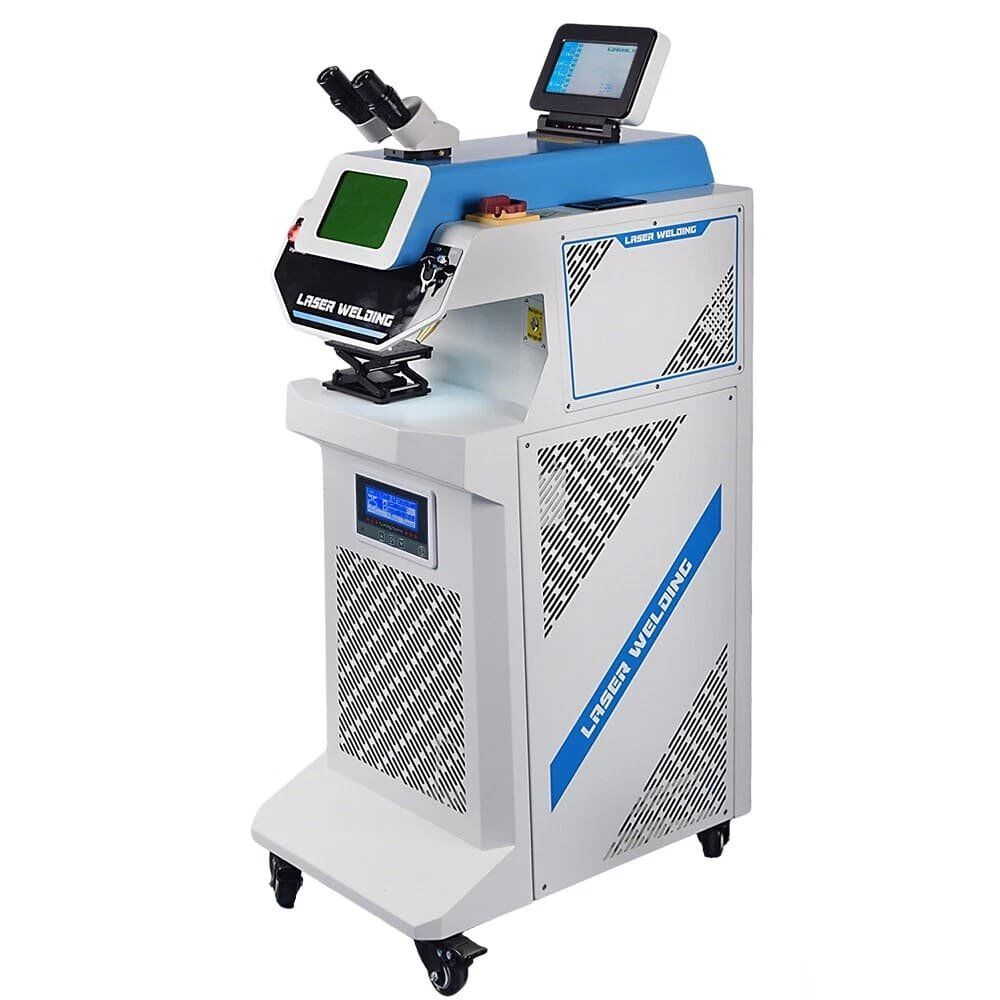

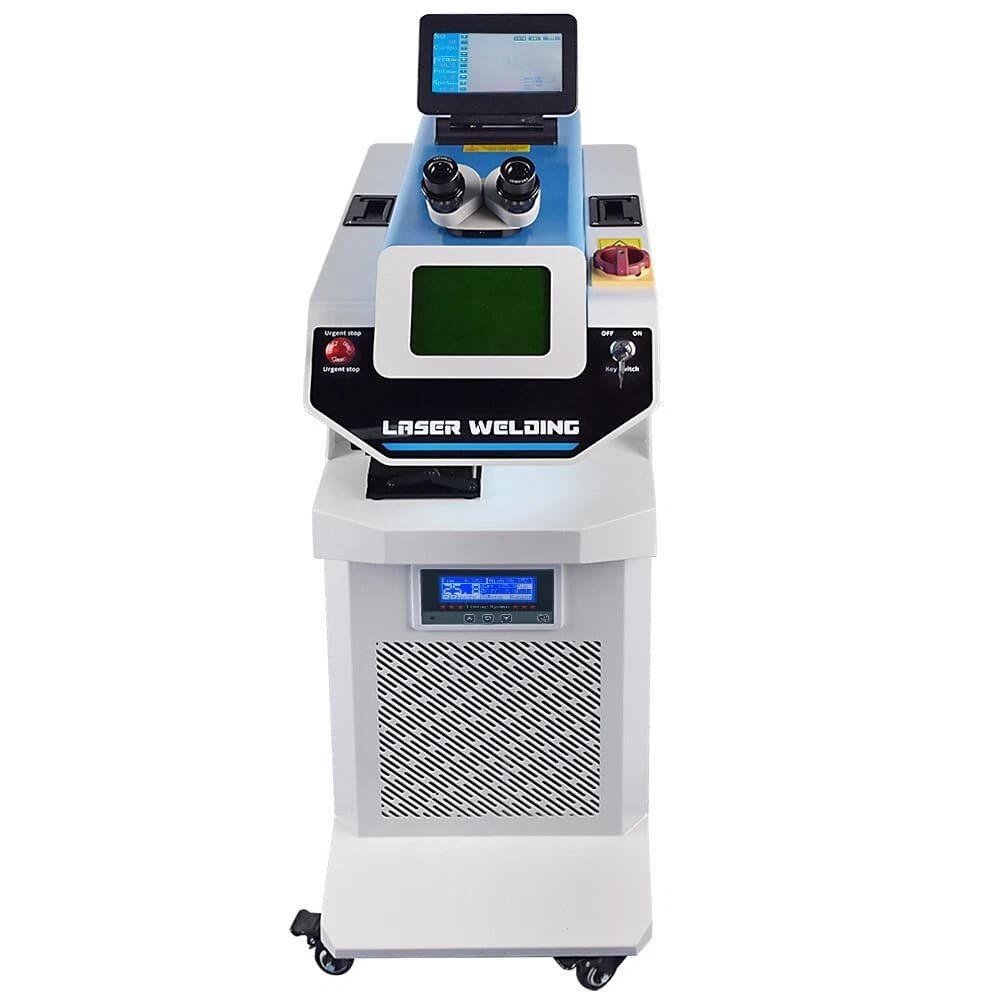

| Aiming & Positioning | Microscope + CCD camera system |

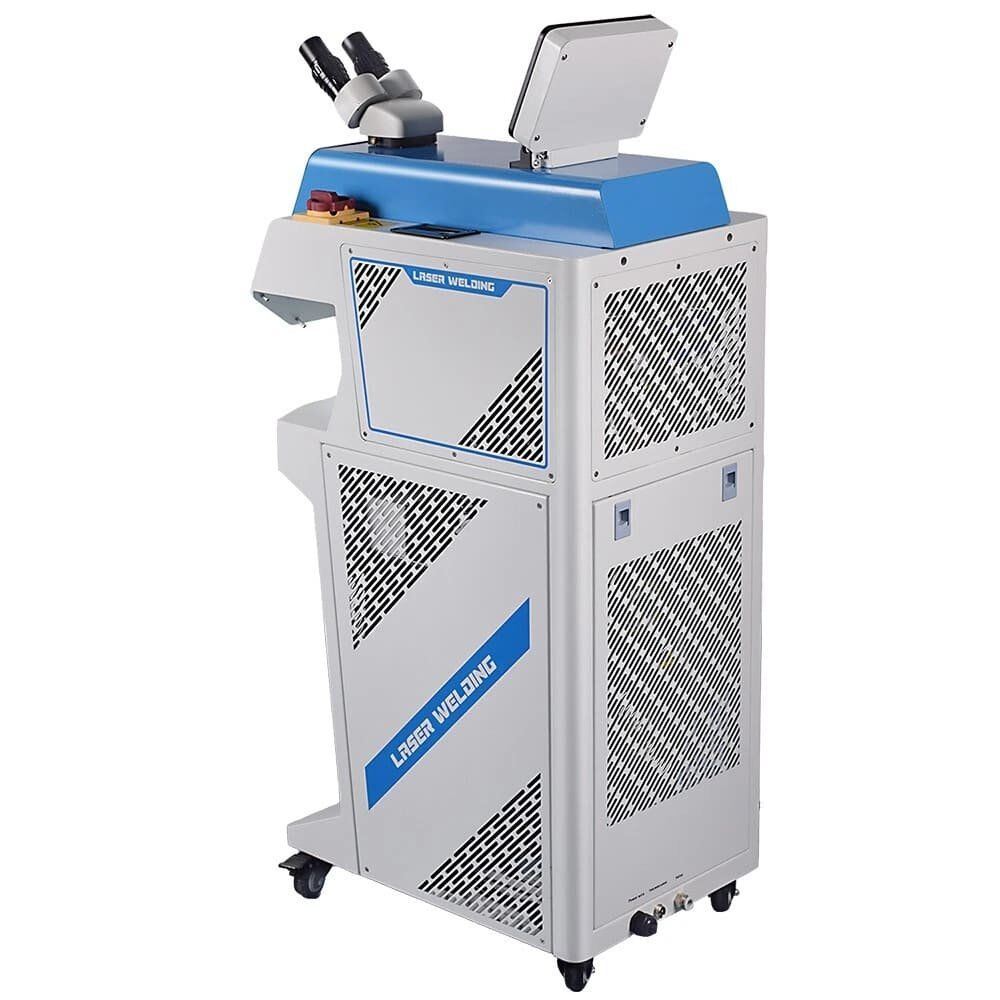

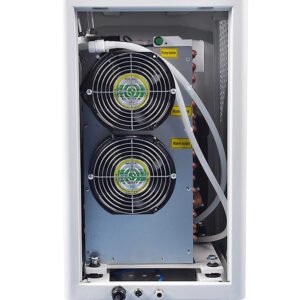

| Cooling System | Industrial water cooling |

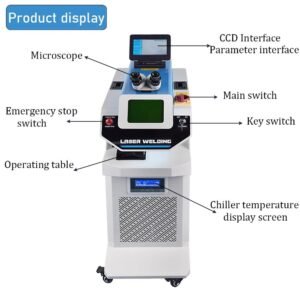

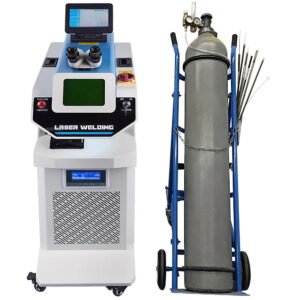

| Protective Gas | Argon or Nitrogen |
| Rated Power | 5 kW |
| Power Supply | 220 V ±5%, 50 Hz |
| Working Current | 40 A |
| Operation Mode | Pedal control |
| Control Interface | Touchscreen control panel |
| Program Storage | Supported |
| Machine Structure | Vertical floor-standing |

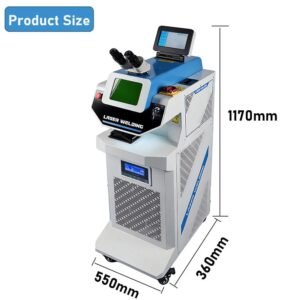

| Overall Dimensions (L × W × H) | 580 × 350 × 1170 mm |
| Net Weight | 60 kg |

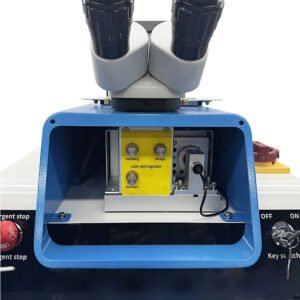

More product images of the Scotle 200W water-cooled vertical Nd:YAG jewelry laser welding machine
Applications of the Scotle 200W Water-Cooled Vertical Nd:YAG Jewelry Laser Welding Machine
Yes. The Laser Spot Welding machine is suitable for precision jewelry repair and other delicate welding applications.
However, welding results for diamond prongs, settings, and small tips depend on the material, structure, thickness, and welding parameters. Since these specific applications have not been fully tested, we recommend sending us samples for a welding test before ordering.
The minimum laser spot size of the Scotle air-cooled desktop model is 0.2 mm.
The adjustable spot-size range varies depending on the machine model.
The machine is suitable for welding various metals and alloys, including:
Actual welding results depend on the material’s reflectivity, thermal conductivity, thickness, joint design, and welding parameters.
The reference welding depths vary by model:
These figures are reference values rather than guaranteed results. Actual welding depth depends on the material, joint structure, laser energy, pulse width, spot size, and operator technique.
Sample testing is recommended for applications with specific welding-depth requirements.
The machine supports argon or nitrogen shielding gas.
Shielding gas is recommended when:
The appropriate shielding gas should be selected according to the material and applicatio
The standard machine is primarily manually operated.
The operator positions the workpiece using the manual worktable, adjusts the focus, observes the welding area through the microscope or CCD display, and triggers the laser using the foot pedal.
Specifications may vary according to the selected configuration.
The machine does not include a pre-installed process library.
However, it supports saving and recalling user-defined welding parameters, making it easier to reuse settings for similar materials and applications.
Rotary-axis compatibility depends on the machine model, structure, and control system.
Some models may support an optional rotary fixture, while others do not. Please contact Scotle to confirm compatibility before ordering.
| Machine model | Screen size | Screen magnification | Microscope magnification |
|---|---|---|---|
| Scotle 200W air-cooled desktop model | 10.8 inches | Up to 25× | 10× |
| Scotle Mini7 air-cooled desktop model | 7 inches | Up to 20× | 10× |
| Scotle 200W water-cooled vertical model | 7 inches | Up to 20× | 10× |
Display and microscope specifications may vary according to the selected configuration.
The standard microscope has a fixed optical magnification and cannot be continuously adjusted.
Please contact Scotle if your application requires a different viewing configuration.
.
The CCD camera uses a 700 TVL imaging chip and provides a clear, real-time view of the welding area for positioning and precision jewelry repair.
The exact camera and display configuration may vary by machine model.
The standard optical lenses are manufactured in China and selected according to the machine’s optical-system requirements.
Both air-cooled and water-cooled models are available.
Please select the cooling method according to the machine model, working environment, and expected operating time.
The standard configuration generally includes:
The included accessories may vary by machine model and order configuration. Please refer to the final quotation and packing list.
Common consumables and replacement parts include:
The service life of the xenon lamp depends on the operating frequency, output energy, pulse width, cooling performance, and maintenance conditions.
There is no fixed replacement interval for every user.
The xenon lamp should be inspected and replaced according to its actual condition, operating frequency, output stability, and accumulated usage. Regular maintenance helps maintain stable welding performance.
Language availability depends on the machine model and controller version.
Please confirm your required operating language with Scotle before ordering.
Yes. Operators can adjust parameters such as laser energy, pulse width, frequency, spot size, and other available settings according to the material and welding requirements.
Parameter availability may vary depending on the model and control system.
Yes. Sample testing is recommended when you have specific requirements for welding depth, appearance, precision, material compatibility, or production efficiency.
Please send us the material information, thickness, application requirements, and sample photos. Physical samples can also be arranged for testing when necessary.
