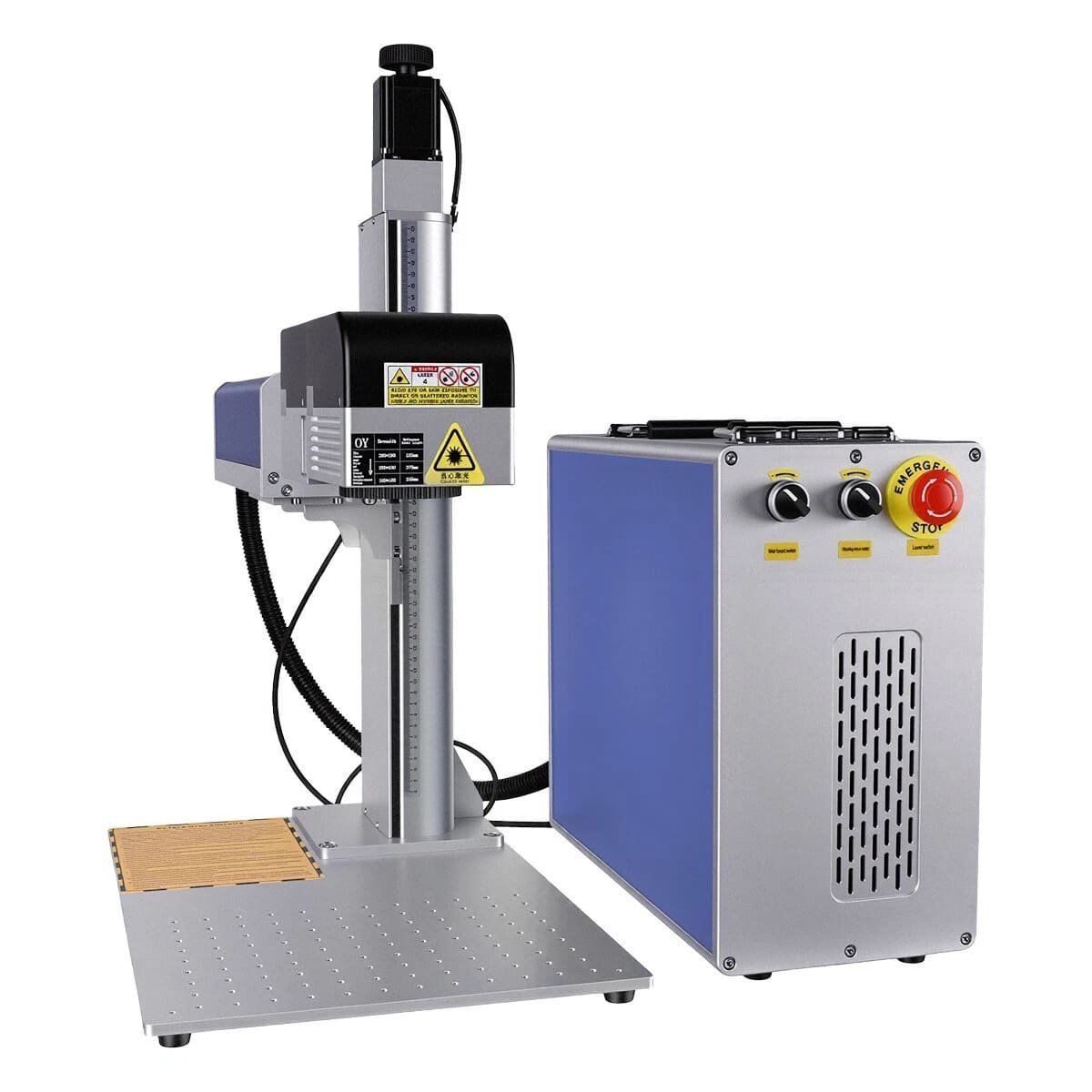

The Scotle 3D Plus 100–300W Dynamic Focus Fiber Laser Marking System is a powerful and versatile solution for high-precision 2D marking, 2.5D relief engraving, and full 3D STL slicing applications.
Powered by a JPT MOPA laser source, Han’s advanced control system, and an OUYA 3D galvanometer, it delivers stable dynamic focus performance, smooth surface finish, precise depth control, and high-speed processing — ideal for molds, metal parts, and complex 3D engraving projects.
The outstanding features for this Scotle 3D Plus 100–300W Dynamic Focus Fiber Laser Marking Machine

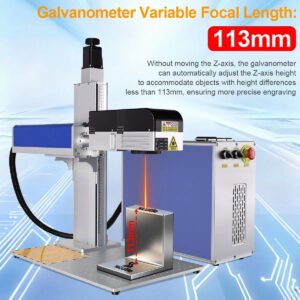

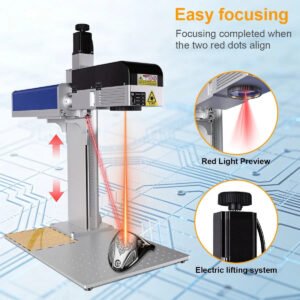

1.True 3D Dynamic Focus – 113mm Height Compensation
Automatic Z-axis adjustment up to 113mm height difference
No manual lifting during uneven surface marking
Real curved, spherical and irregular surface engraving
Far beyond traditional 2.5D systems

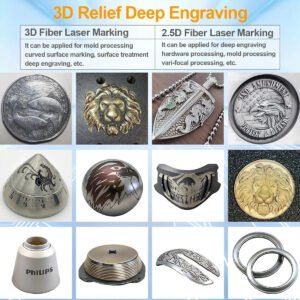

2.Real 3D STL Slicing Engraving
Direct STL file import
True slicing-based 3D engraving
Adjustable cutting step distance
Selectable positive or reverse carving modes
Ideal for mold relief, coin engraving, and deep metal carving
Supports complex 3D models and detailed relief structures
User-friendly interface — even beginners can achieve professional results

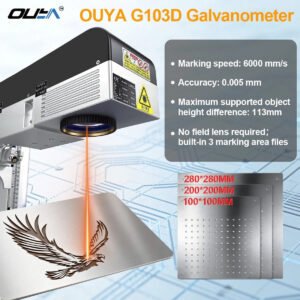

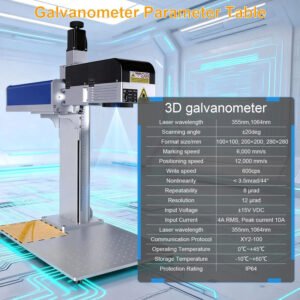

3.High-Speed OUYA 3D Galvanometer
6000 mm/s marking speed
0.005 mm positioning accuracy
280×280mm maximum field
No field lens replacement required

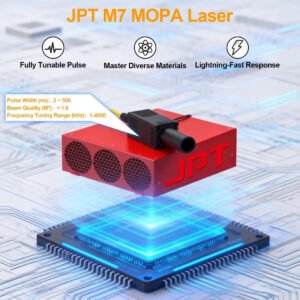

4.JPT MOPA Laser Source (60W–300W)
Adjustable pulse width: 2–500ns
Frequency range: 1–4000kHz
Stable 1064nm output
Ideal for color marking, deep engraving, fine detailing

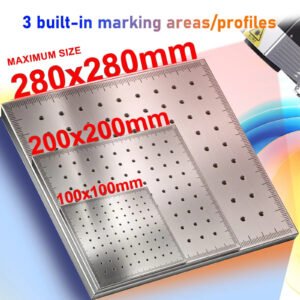

5.Built-in Marking Areas (No Field Lens Needed)
100×100mm
200×200mm
280×280mm
Switch by software, no hardware change required.

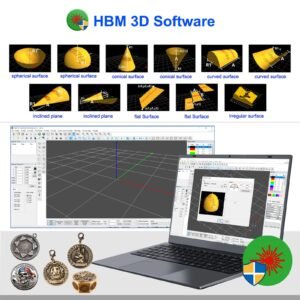

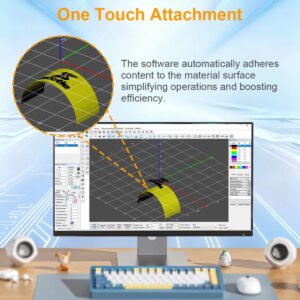

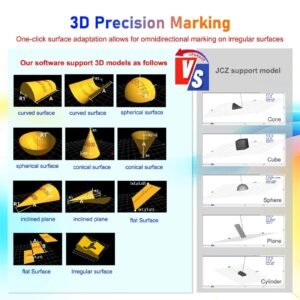

6.One-Touch Surface Attachment and user friendly
Automatically map graphics onto curved surfaces
No manual projection alignment
Perfect for rings, cylinders, spherical objects
7.Multi-Function Platform in One Machine
Supports:
• Standard 2D marking
• 2.5D relief engraving
• Full 3D carving
• Rotary axis processing
One system covers flat, curved, and cylindrical applications.

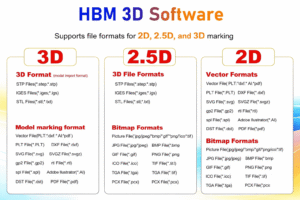

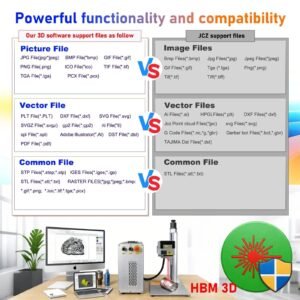

8.Wide File Compatibility
3D: STL, STP, IGES
Vector: AI, DXF, SVG, PLT, PDF
Image: JPG, PNG, BMP, TIF
Note: 3D marking content supports vector file formats and built-in graphics such as text, basic shapes, and QR codes. Bitmap image formats are not supported.

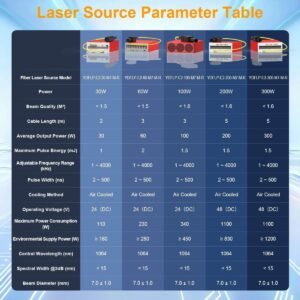

Technical details for this Scotle 3D Plus
| Item | Specification |
|---|---|
| Laser Type | Pulsed Fiber Laser |
| Optional Power | 60W / 100W / 200W / 300W |
| Wavelength | 1064 nm |
| Beam Quality (M²) | < 1.6 |
| Pulse Frequency | 1 – 4000 kHz |
| Pulse Width | 2 – 500 ns |
| Max Pulse Energy | Up to 2 mJ (varies by model) |
| Power Adjustment Range | 0 – 100% |
| Power Stability | < 5% |
| Galvo Scanner | SINO-GALVO SG7110 |
| Max Marking Speed | 5000 mm/s |
| Positioning Speed | 8000 mm/s |
| Cooling System | Air Cooled |
| Supply Voltage | 24V / 48V DC (model dependent) |
| Power Consumption | 330W – 1200W (depending on power) |
| Beam Diameter | 7 ± 0.5 mm |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -10 – 60°C |
| Laser Safety Class | Class 4 |

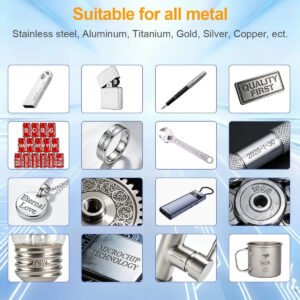

Application of this Scotle 3D Plus

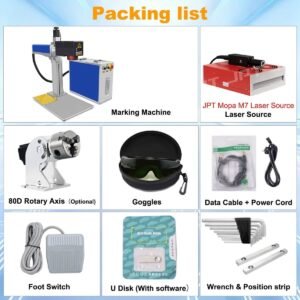

Packinglist for this Scotle 3D Plus

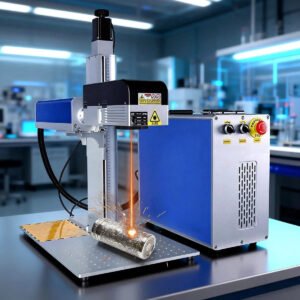

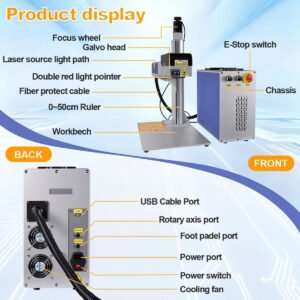

Additional Product Images for this Scotle 3D plus

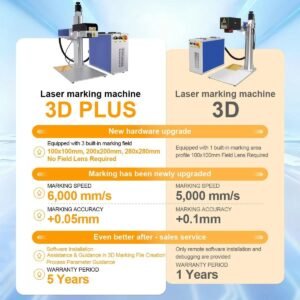

Scotle 3D Plus (OUYA 3D Galvo + Han’s Control) vs Conventional 3D System (JCZ Galvo + JCZ Control)
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
The expected service life is approximately 80,000 hours, which may correspond to more than 8–10 years under suitable operating conditions.
High humidity, dust, poor cooling, contaminated optics, overload operation, and prolonged full-power use may shorten the service life. Stable ventilation, regular lens cleaning, timely filter replacement, and proper operating parameters help extend equipment life.
In addition to most metals, the JPT MOPA fiber laser marking machine can produce black markings on anodized aluminum, coated metals, and selected plastics such as PVC. Plastic marking results depend on the material composition, color, additives, and laser parameters. A sample test is recommended before purchase.
The 60W JPT MOPA fiber laser marking machine is generally easier to optimize for vivid color marking because its lower power allows finer heat control. However, actual results depend on the material and parameter settings.
Yes, we provide operation manuals and video training materials.
A 2.5D fiber laser marking machine has a motorized Z-axis. After the initial focus is set manually, the software controls the Z-axis during processing so the focal point follows the engraving depth automatically. This improves efficiency, depth consistency, and engraving quality.
Yes. Depending on the control system and software, 2.5D and 3D fiber laser marking machines can process deep engraving, layered relief, curved surfaces, cylindrical surfaces, and selected 3D shapes. A suitable 3D model or grayscale bitmap is required.
