🌟Product Overview
The Scotle 3D Fiber Laser Marking & Engraving Machine (60W/100W/200W/300W) features advanced EZCAD3 software and automatic dynamic focus control, enabling high-precision deep and relief engraving on flat, curved, stepped, and irregular metal surfaces. Powered by a high-stability MOPA fiber laser source, it supports large-format 3D marking, making it ideal for stainless steel, aluminum, copper, and other industrial materials. Designed for professionals, this air-cooled machine offers fast marking speed, excellent beam quality, and customizable parameters for superior results in metal fabrication, automotive, and mold-making applications.
🌟The advantages of SCOTLE 3D Fiber Laser Marking & Engraving Machine

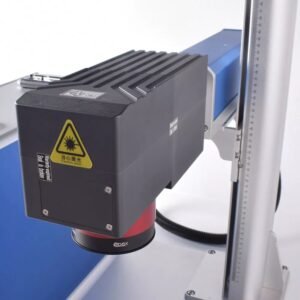

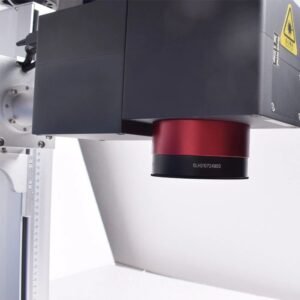

🌟The core parts information for this SCOTLE 3D Fiber Laser Marking & Engraving Machine
🌟Key Features for this SCOTLE 3D Fiber Laser Marking & Engraving Machine
Available in Multiple Power Options
Comes in 50W, 60W, 100W, 200W, 300W models to suit a wide range of materials and engraving depths.

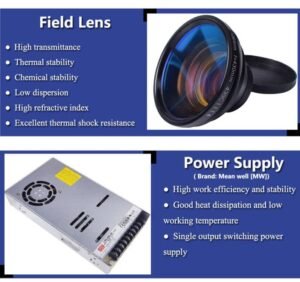

Supports Multiple Field Lenses & Focus Aid
Compatible with lenses for different marking areas (70×70mm, 110×110mm, 175×175mm, etc.), with dual red-light focus indicator for accurate focal adjustment.
Air-Cooled Design
Efficient air cooling system—no water chiller required. Compact and low-maintenance, suitable for workshops and production lines.

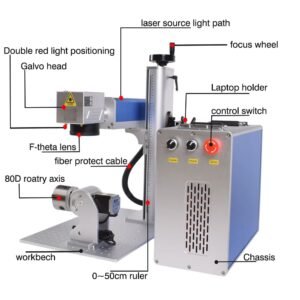

Rotary Marking Support
Capable of marking cylindrical objects such as rings, pipes, and mugs with 360° rotary engraving via optional rotary axis.
Wide Material Compatibility
Engraves metals like stainless steel, aluminum, copper, silver, and gold, as well as plastics and coated materials.
Certified for Global Safety Standards
Complies with IEC 60825-1, EN ISO 12100, EN 60204-1, and registered with the FDA for Class IV laser safety compliance
.
🌟Technical details for this SCOTLE 3D Fiber Laser Marking & Engraving Machine
✅For 2.5D and 3D comparison
✅For JPT MOPA fiber laser source
🌟Application for SCOTLE Scotle 3D Dynamic Fiber Laser Marking & Engraving Machine
🌟 Packing list for SCOTLE 3D Dynamic Fiber Laser Marking & Engraving Machine
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
The expected service life is approximately 80,000 hours, which may correspond to more than 8–10 years under suitable operating conditions.
High humidity, dust, poor cooling, contaminated optics, overload operation, and prolonged full-power use may shorten the service life. Stable ventilation, regular lens cleaning, timely filter replacement, and proper operating parameters help extend equipment life.
In addition to most metals, the JPT MOPA fiber laser marking machine can produce black markings on anodized aluminum, coated metals, and selected plastics such as PVC. Plastic marking results depend on the material composition, color, additives, and laser parameters. A sample test is recommended before purchase.
The 60W JPT MOPA fiber laser marking machine is generally easier to optimize for vivid color marking because its lower power allows finer heat control. However, actual results depend on the material and parameter settings.
Yes, we provide operation manuals and video training materials.
A 2.5D fiber laser marking machine has a motorized Z-axis. After the initial focus is set manually, the software controls the Z-axis during processing so the focal point follows the engraving depth automatically. This improves efficiency, depth consistency, and engraving quality.
Yes. Depending on the control system and software, 2.5D and 3D fiber laser marking machines can process deep engraving, layered relief, curved surfaces, cylindrical surfaces, and selected 3D shapes. A suitable 3D model or grayscale bitmap is required.
