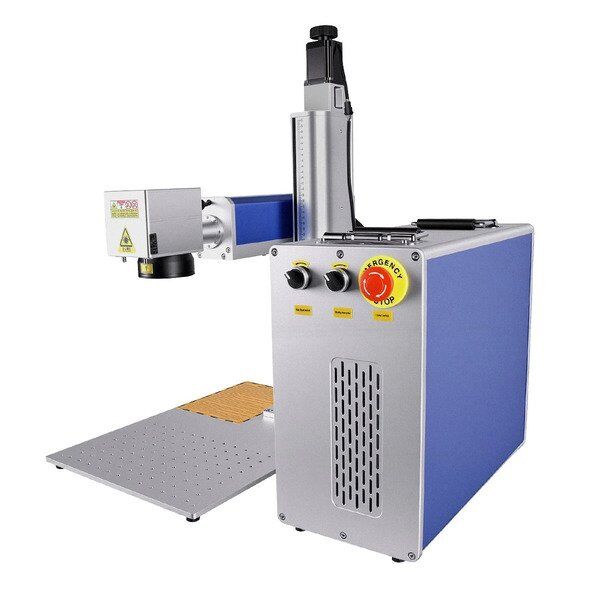

Scotle 2.5D Plus Fiber Laser Engraving Machine for Deep & Relief Metal Engraving

Hilight for this Scotle 2.5D Plus Fiber Laser Engraving Machine

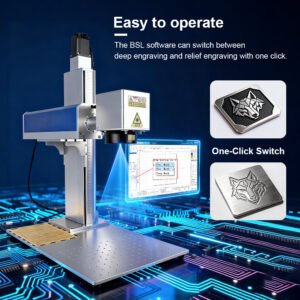

🔹 True 2.5D Deep & Relief Engraving Capability

Supports Yin (deep engraving) and Yang (relief engraving) modes through advanced STL 3D file slicing technology. The layered engraving process provides precise depth control and detailed surface texture, making it ideal for professional metal carving applications.

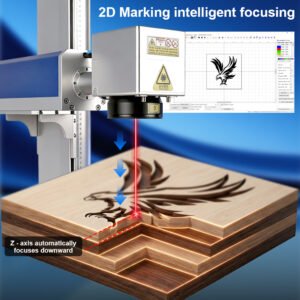

🔹 Electric Z-Axis with Automatic Layered Focusing

Equipped with a motorized Z-axis system that automatically adjusts height during layered engraving, maintaining consistent laser focus and stable engraving depth throughout the entire process.

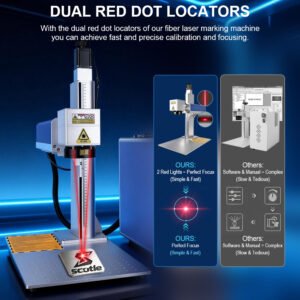

🔹 Dual Red-Light Fast Focusing System

Built-in dual red-light positioning enables quick and accurate focal adjustment. When the two red dots overlap, optimal focus is achieved — eliminating the need for manual measurement tools.

🔹 Supports Both 2D Marking & 2.5D Engraving Modes

Compatible with standard 2D marking as well as advanced 2.5D deep carving. 2D marking supports LightBurn software, while 2.5D engraving operates through dedicated slicing software for precise deep and relief engraving.

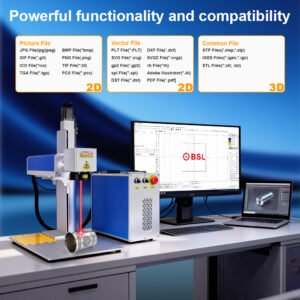

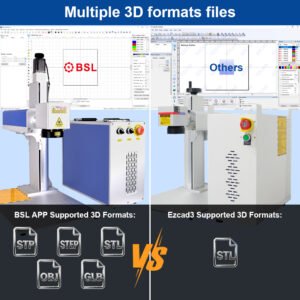

🔹 STL, Bitmap & Vector File Compatibility

Supports STL 3D files, grayscale bitmap engraving, and vector graphic marking. Flexible file compatibility allows users to create complex deep engraving designs with full control over slicing parameters and layer settings.

🔹 Rotary Axis Expansion for Cylindrical Engraving

Optional rotary axis support enables precise engraving on cylindrical objects such as rings, tubes, and round components.

🔹 Replaceable Field Lens for Flexible Working Areas

Supports interchangeable field lenses (e.g., 175×175mm, 200×200mm), allowing users to adapt the engraving area to different production requirements.

Technical details for this Scotle 2.5D Plus Fiber Laser Engraving Machine

More Images of the Scotle 2.5D Plus Fiber Laser Engraving Machine
