Introduction
In laser marking applications, fiber lasers are the most widely used technology for marking metals and industrial materials.
Most traditional fiber laser marking machines use Q-switched fiber lasers. However, in recent years, MOPA fiber lasers (Master Oscillator Power Amplifier) have become increasingly popular due to their higher flexibility and superior marking quality.
MOPA lasers allow independent control of pulse width and frequency, enabling advanced applications such as stainless steel color marking, black marking on anodized aluminum, and precision micro-engraving.
This article explains the differences between MOPA and Q-switched fiber lasers, and helps users choose the right laser for their application.
What Is a MOPA Fiber Laser?
A MOPA fiber laser uses a seed laser combined with a fiber amplifier to generate pulsed laser output.
Compared with traditional Q-switched lasers, MOPA lasers offer:
- Adjustable pulse width
- Adjustable frequency
- More flexible laser parameter control
- Better processing quality for sensitive materials
Typical adjustable ranges include:
| Parameter | Range |
|---|---|
| Pulse Width | 1–400 ns |
| Frequency | 1 kHz – 2 MHz |
| Peak Power | Tens of kW |
Because of this flexibility, MOPA lasers are widely used in high-precision laser marking applications.
What Is a Q-Switched Fiber Laser?
Q-switched fiber lasers use acousto-optic modulation (AO) to generate pulsed laser output.
Characteristics include:
- Fixed pulse width
- Limited frequency adjustment
- Strong pulse energy
Q-switched lasers are commonly used for:
- Metal engraving
- Basic industrial marking
- Deep engraving applications
They are generally more suitable when strong engraving depth is required.
Key Differences Between MOPA and Q-Switched Lasers
The main difference between these two technologies lies in pulse parameter control.
| Feature | Q-Switched Laser | MOPA Laser |
|---|---|---|
| Pulse Width | Fixed | Adjustable |
| Frequency | Limited | Wide range |
| Parameter Control | Basic | Highly flexible |
| Marking Quality | Standard | High precision |
| Heat Impact | Higher | Lower |
| Color Marking | Not possible | Supported |
Because MOPA lasers provide greater control, they can produce more refined marking results.
Applications of MOPA Fiber Lasers

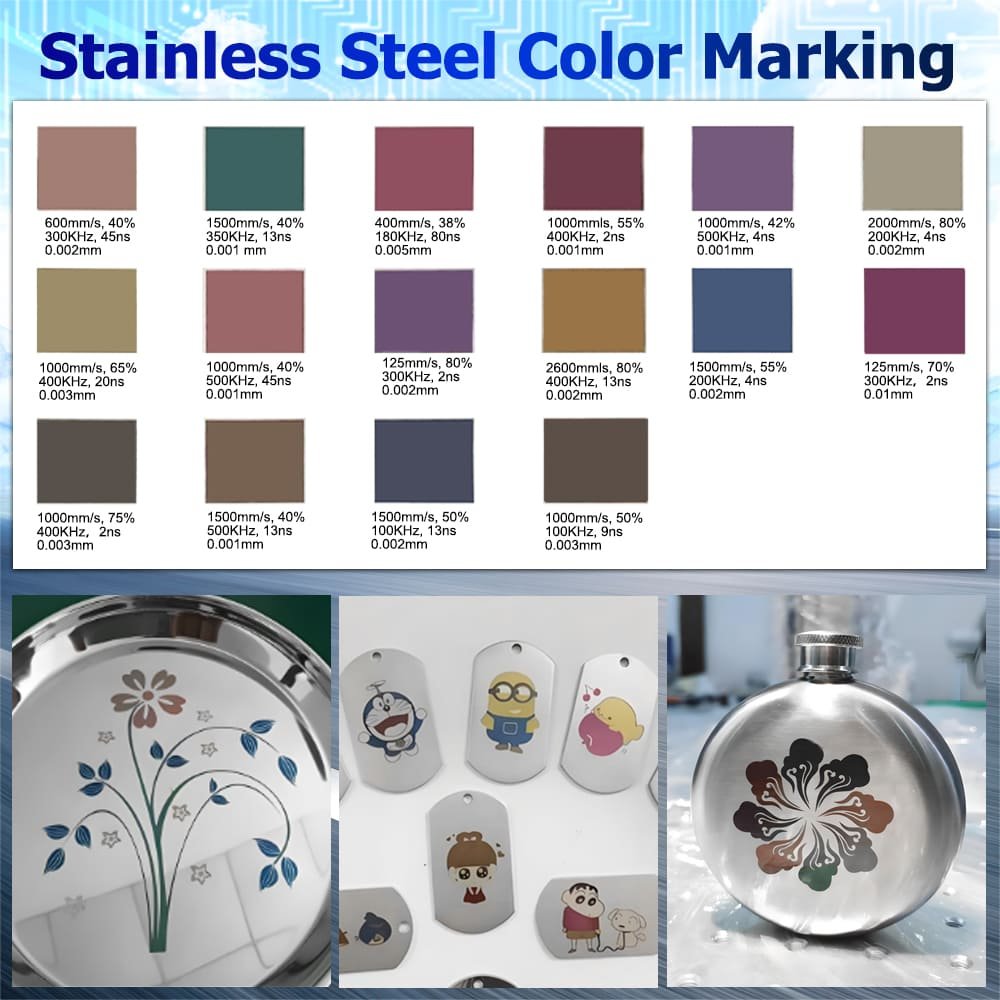

Stainless Steel Color Marking
MOPA lasers can generate different colors on stainless steel surfaces by adjusting frequency and pulse width.
Typical applications include:
- Logos
- Decorative graphics
- Medical instruments
- Kitchenware
This effect cannot be achieved with standard Q-switched lasers.

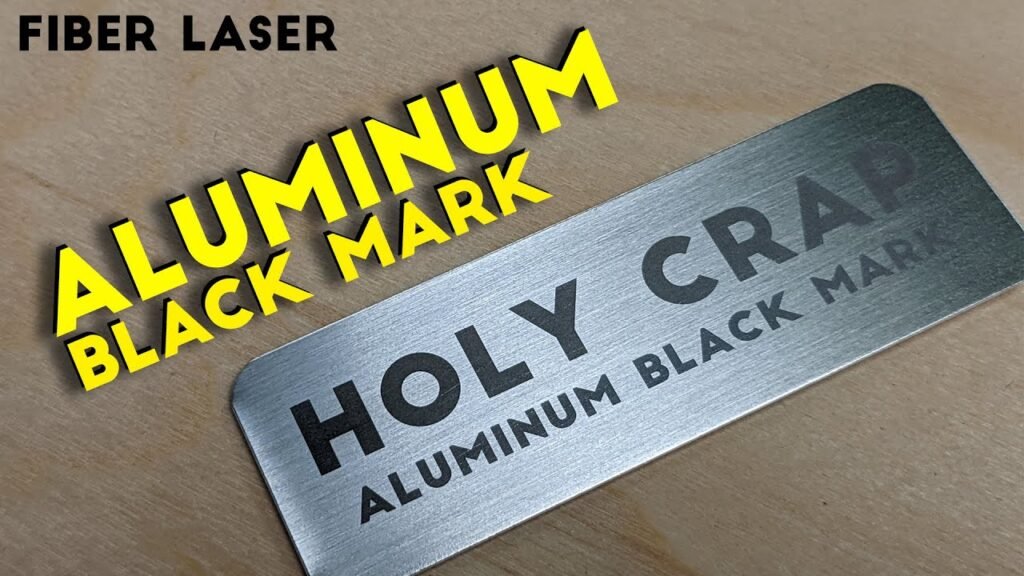

Black Marking on Anodized Aluminum
MOPA lasers can produce high-contrast black marks on anodized aluminum surfaces.
Applications include:
- Electronics housings
- Consumer electronics
- Industrial panels

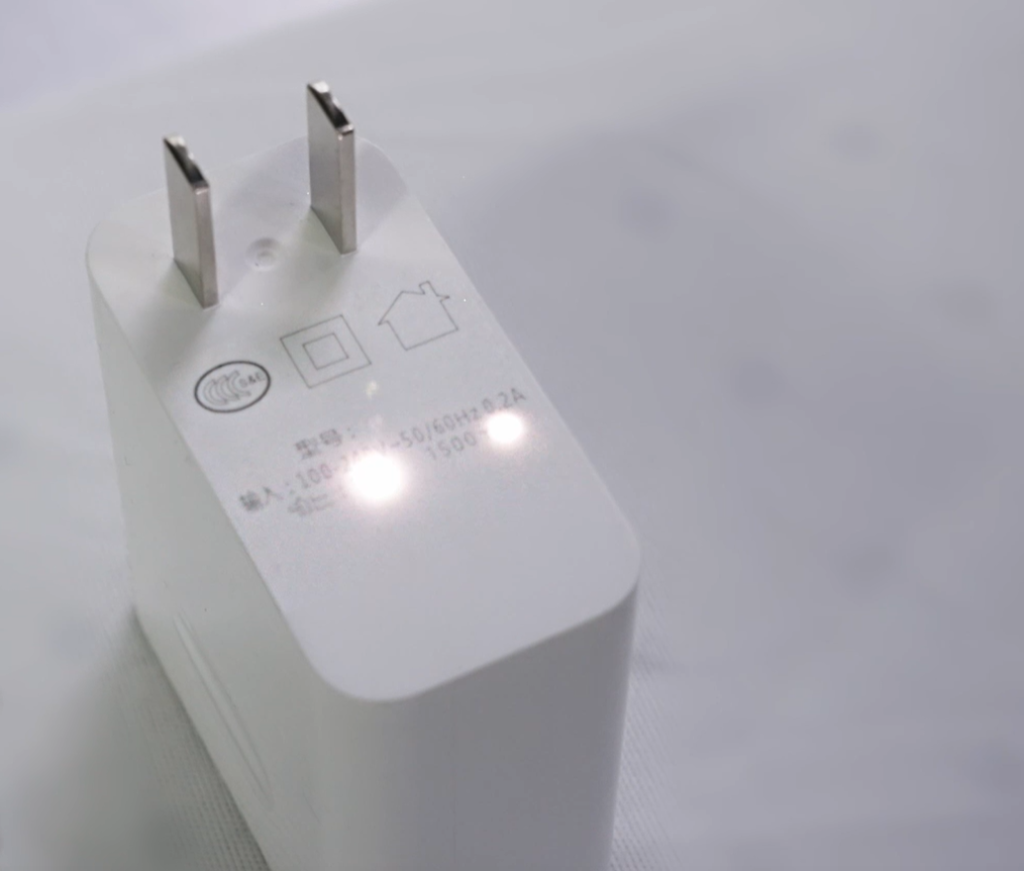

Precision Marking on Plastics
MOPA lasers can reduce thermal damage and prevent yellowing when marking certain plastics.
This is useful for:
- Electronic components
- Automotive parts
- Plastic housings
When Should You Choose MOPA?
MOPA lasers are recommended if your application requires:
- Stainless steel color marking
- Black marking on anodized aluminum
- Fine engraving with minimal heat impact
- High-precision industrial marking
Q-switched lasers may still be suitable for deep engraving or standard metal marking applications.
Conclusion
Both MOPA and Q-switched fiber lasers are widely used in laser marking systems.
However, MOPA lasers provide greater flexibility and superior marking quality, making them ideal for advanced marking applications.
As laser processing technology continues to evolve, MOPA fiber lasers are becoming the preferred choice for high-end laser marking systems.
FAQ
What is the difference between MOPA and Q-switched fiber lasers?
The main difference is pulse control.
MOPA lasers allow independent adjustment of pulse width and frequency, while Q-switched lasers typically have fixed pulse width and limited frequency control.
Can MOPA lasers mark color on stainless steel?
Yes. MOPA fiber lasers can create color markings on stainless steel by controlling laser parameters that affect the oxide layer formed on the metal surface.
Are MOPA lasers better for laser marking?
MOPA lasers are better for precision marking, color marking, and heat-sensitive materials, while Q-switched lasers may still be suitable for deep engraving applications.
