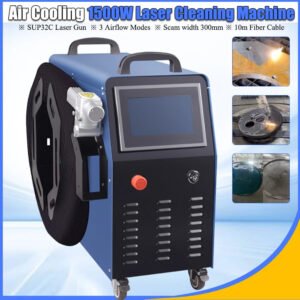

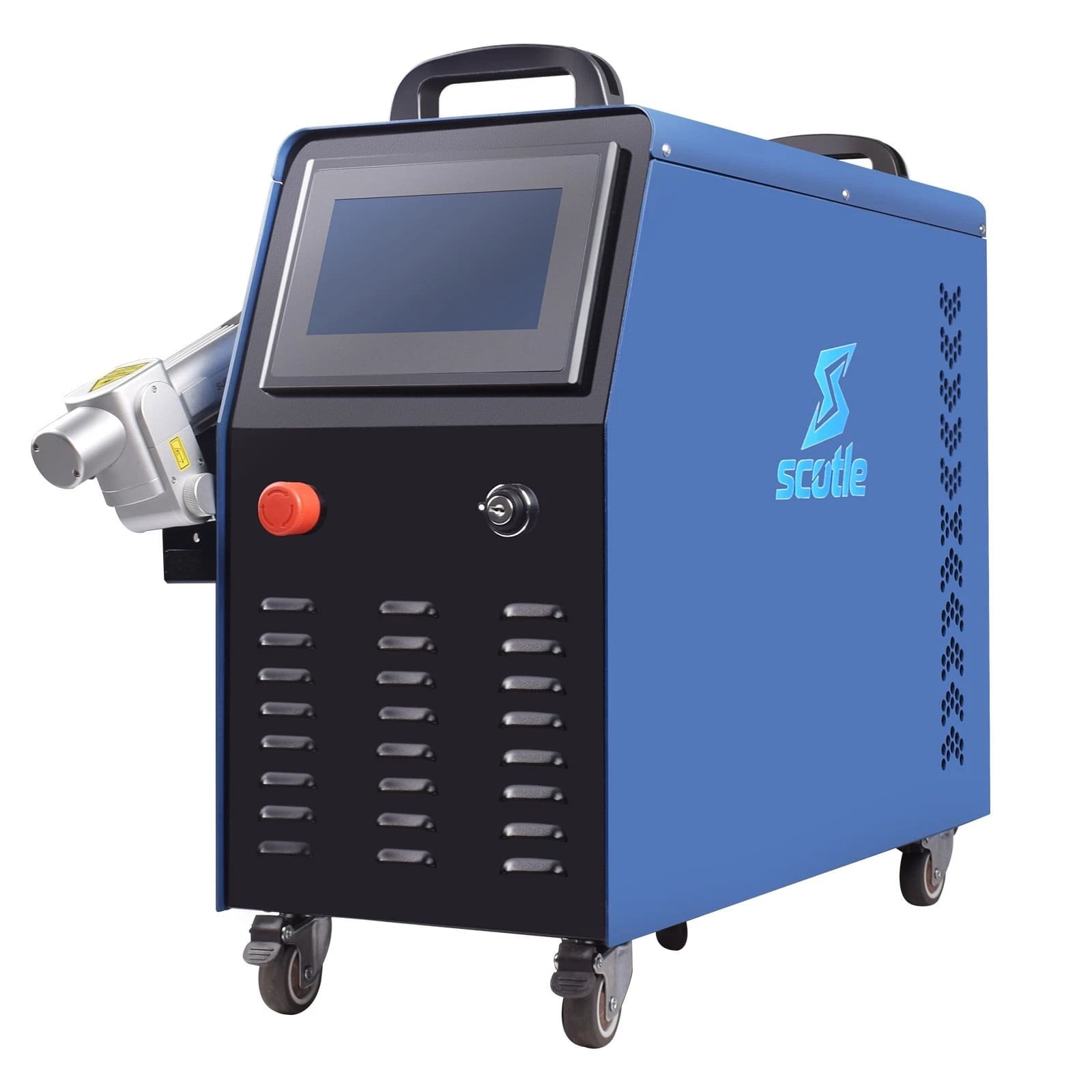

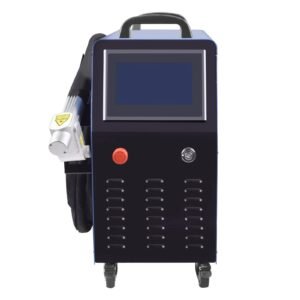

The Scotle 1500W / 2000W Air-Cooled Handheld Fiber Laser Cleaning Machine is a compact industrial laser cleaning system designed for efficient metal surface treatment.
Using a continuous-wave fiber laser and an air-cooled design, the machine operates without water or antifreeze, simplifying installation and maintenance. It enables non-contact removal of rust, paint, oxide layers, coatings, and surface contaminants, making it suitable for workshops, maintenance tasks, and on-site industrial applications.
Why Choose this Scotle 1500W / 2000W Air-Cooled Handheld Fiber Laser Cleaning Machine？
1.Air-Cooled Design, Simple Structure
Air cooling eliminates the need for water tanks, chillers, or antifreeze.
This reduces system complexity and makes the machine easier to deploy and maintain.
2.Easy Installation & Operation
Powered by standard 220V / 50–60Hz, the system can be put into operation quickly.
Touchscreen control and clear operating logic help users get started with minimal training.

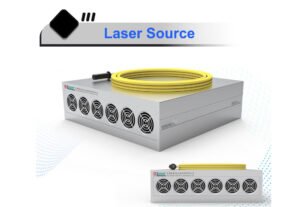

3.1500W / 2000W Continuous Fiber Laser Power
The high-power CW fiber laser efficiently removes rust, oil, paint, coatings, and oxide layers from metal surfaces with stable and consistent performance.
4.Non-Contact Cleaning, Reduced Base Material Impact
Laser cleaning is a non-contact process that does not require chemicals or abrasives, helping preserve the integrity of the metal substrate during surface treatment.

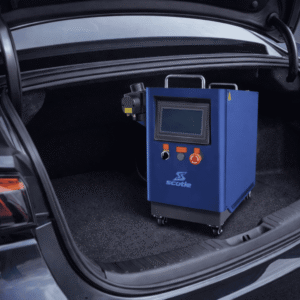

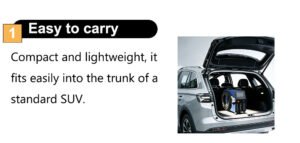

5.Handheld & Portable Configuration
Compact machine size combined with a handheld cleaning head allows flexible use in workshops, equipment maintenance, and on-site cleaning environments.
6.Built-In Safety & Monitoring
The system includes safety locks, emergency stop, alarm prompts, and real-time monitoring of temperature and operating status to support safe industrial operation.
Technical Details of the Main Parts of Scotle 1500W / 2000W Air-Cooled Handheld Fiber Laser Cleaning Machine
| Parameter | Specification |
|---|---|
| Model | F12A |
| Laser Type | Continuous Wave (CW) Fiber Laser |
| Rated Output Power | 1500 W/ 2000W |
| Power Adjustment Range | 10–100% |
| Output Power Stability | ≤ ±2% |
| Operating Mode | Continuous operation (24 hours non-stop) |
| Laser Wavelength | 1080 ± 10 nm |
| Beam Quality (M²) | ≤ 1.2 |

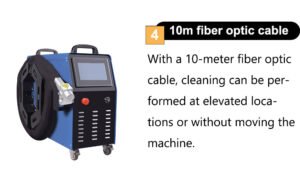

| Fiber Cable Length | 10 m (standard) |
| Total Power Consumption | ≤ 3500 W |
| Cooling System | Air-cooled |
| Operating Temperature Range | −20°C to 45°C |
| Control Interface | DA / RS-232 |
| Machine Dimensions (L × W × H) | 434 × 402 × 130 mm |
| Net Weight | 24 kg |
| Applications | Laser rust removal, paint & coating removal, oxide layer cleaning, oil & contaminant removal, metal surface preparation |

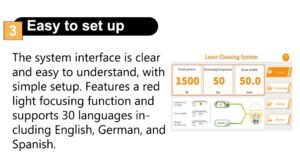

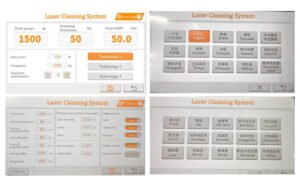

Smart Controller Features and technical：
Multi-language Support
Supports 30+ languages, including English, German, and Spanish.
Real-Time System Monitoring
Monitors the machine status in real time to prevent issues proactively and make troubleshooting faster.
Parameter Presets (Recipe Storage)
Stores multiple process parameter sets for quick selection before operation.

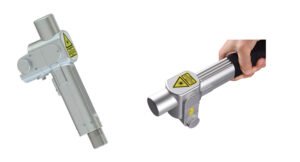

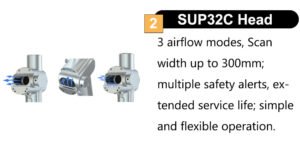

Technical details for laser cleaning head for this scotle air-cooled laser metal cleaner
| Item | Specification |
|---|---|
| Supply Voltage (V) | 220V ±5% AC, 50/60 Hz |
| Operating Ambient Temperature (°C) | 10°C to 40°C |
| Working Environment Humidity (%) | ≤ 70% |
| Cooling Method | Air cooling |
| Applicable Wavelengths | 1080 nm (±10 nm) |
| Applicable Power | ≤ 3000 W |
| Collimating Mirror | D16T5F60 |
| Focusing Lens | D30T3.5F800 |
| Protective Goggles | D30T3 |
| Recommended Air Flow | 10–15 L/min (0.15 MPa at 20°C) |
| Focus Vertical Adjustment Range | ±10 mm |
| Weight | 0.9 kg |
| Compatible Laser | Beam collimated to φ ≤ 14 mm |
Applications of Scotle 1500W / 2000W Air-Cooled Handheld Fiber Laser Cleaning Machine
The Scotle air-cooled handheld fiber laser cleaning machine is suitable for a wide range of metal surface cleaning applications, including:
Rust removal from steel and metal components
Paint and coating removal before welding or repainting
Oxide layer and surface contaminant cleaning
Equipment maintenance and refurbishment
Workshop-based and on-site industrial cleaning tasks
It is commonly used in manufacturing, metal fabrication, equipment maintenance, automotive repair, and industrial service environments.
Packing list of Scotle 1500W / 2000W Air-Cooled Handheld Fiber Laser Cleaning Machine
Warranty
1. The machine warranty is 2 years, once the machine parts was bad, we will send you a new one parts free (Except for wear parts).
2. Available 24 hours online, Monday through Friday.
3. We also have water cooled laser cleaning machine and pulsed laser cleaning machine for your slection.
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
Yes. It is designed with a smart touchscreen control system and requires only basic training.
Yes, we provide remote technical support, video guidance, and lifetime service assistance.
Yes, it is suitable for welding stainless steel, carbon steel, aluminum, and galvanized steel.
Yes, we provide operation manuals and video training materials.
Yes, shielding gas such as argon or nitrogen is recommended to ensure high-quality welding results.
No water chiller required, lower maintenance cost, easier installation, and more portable for on-site work.
