Description

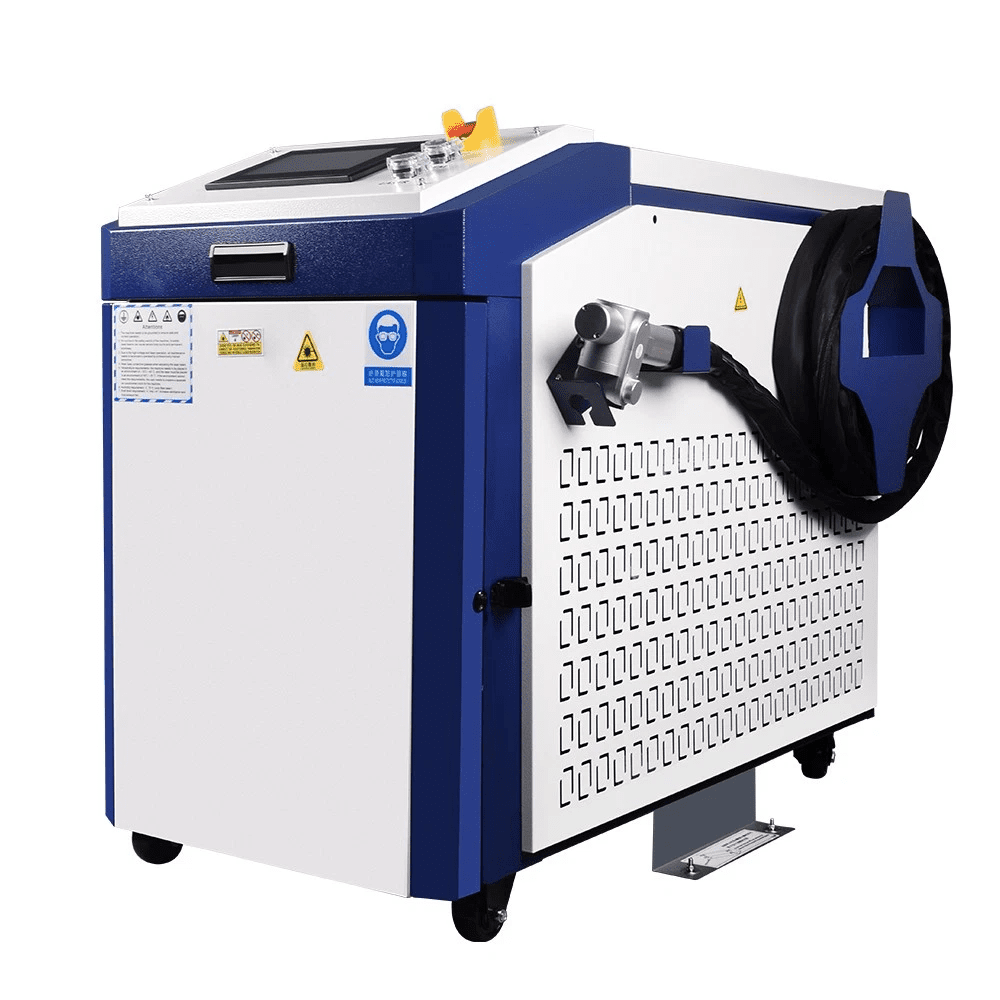

1.Why Choose this Scotle 3000W Water-Cooled Raycus Fiber Laser Cleaning Machine?
High-Power 3000W Raycus Fiber Laser
Powered by a genuine Raycus 3000W fiber laser source, the machine provides strong and stable laser output, making it suitable for fast removal of thick rust layers and surface coatings.
Water-Cooled System for Long-Time Operation
The industrial water-cooling system with a 16L water tank ensures stable performance during continuous, high-load operation, helping support long working hours and extend the service life of the laser system.
Continuous & Modulated Laser Cleaning Modes
The system supports both continuous wave and modulated pulse cleaning modes, allowing flexible adjustment for different materials, surface conditions, and cleaning requirements.
High Cleaning Efficiency
With a rust removal efficiency of 35–40 m² per hour, this machine significantly improves productivity compared with traditional mechanical or chemical cleaning methods.
Handheld Cleaning Gun, Easy to Operate
Equipped with a handheld laser cleaning gun and an 800 mm working distance, the system allows flexible operation on large or complex workpieces while remaining easy to operate.
Non-Contact & Environment-Friendly
Laser cleaning is a non-contact and environmentally friendly process that removes contaminants without abrasives, chemicals, or secondary pollution, effectively protecting the base material.
2.Technical Specifications for Scotle 3000W Water-Cooled Raycus Fiber Laser Cleaning Machine
| Item | Specification |
|---|---|
| Laser Power | 3000W |
| Laser Source Brand | Raycus |
| Laser Type | Fiber Laser |
| Voltage | AC 220V |
| Current | 44A |
| Total Power Consumption | 9000W |
| Phase | L + N + PE |
| Cooling Method | Water-Cooled |
| Laser Working Mode | Continuous / Modulated Pulse |
| Fiber Cable Length | 10 m |
| Working Distance (Gun to Material) | 800 mm |
| Laser Frequency | 5000 Hz |
| Scanning Speed | Up to 20,000 mm/s |
| Scanning Area | 300 × 300 mm |
| Duty Cycle | 100% |
| Communication Port | RS232 / AD |
| Laser Gun Model | FW20-DC30A |
| Optical Interface | QBH |
| Wavelength | 1080 nm |
| Single-Pass Cleaning Thickness | 3–4 mm |
| Cleaning Efficiency | 35–40 m²/h (rust removal) |
| Working Environment | Ambient temperature: −20 to 40 °C; Operating temperature: 10–40 °C; Humidity: 10%–90% (non-condensing) |
| Cooling Medium | Distilled or deionized water (antifreeze required below 0 °C) |
| Water Tank Capacity | 16 L |
| Packing Size | 104 × 56 × 93 cm |
| Packing Weight | 170 kg |

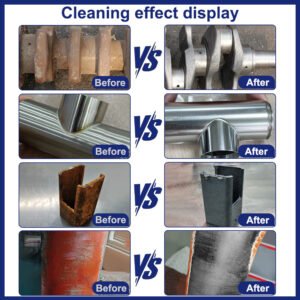

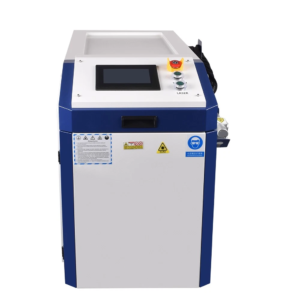

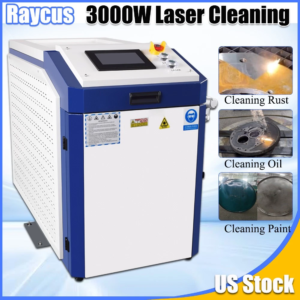

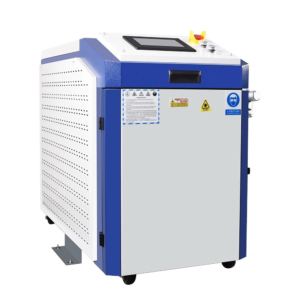

3. More pictures for this Scotle 3000W Water-Cooled Raycus Fiber Laser Cleaning Machine

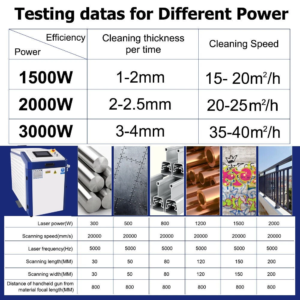

4.Laser cleaning efficiency comparison of different power levels (1500W, 2000W and 3000W)
5.Laser cleaning machine applications for mold cleaning, paint stripping and industrial surface treatment

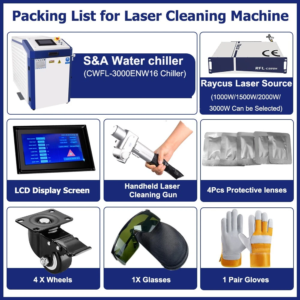

6.Packing list for Scotle 3000W Water-Cooled Raycus Fiber Laser Cleaning Machine
7. FAQ for this Scotle 3000W Water-Cooled Raycus Fiber Laser Cleaning Machine
Is this machine suitable for long-term industrial operation?
Yes. The combination of a water-cooled system and 100% duty cycle allows the machine to operate continuously under industrial working conditions.
What materials can be cleaned with this machine?
It is mainly designed for metal surfaces, including carbon steel, stainless steel, and other commonly used industrial metals.
Will laser cleaning damage the base material?
No. Laser cleaning is a non-contact process that removes surface contaminants without mechanical abrasion or chemical corrosion, helping preserve the original material surface.
What type of cooling water should be used?
Distilled water or deionized water is recommended. When operating in environments below 0 °C, antifreeze must be added.
Is the machine difficult to operate?

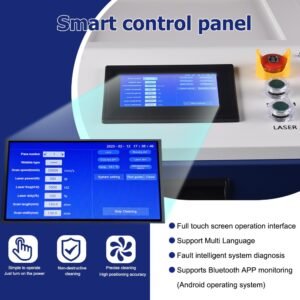

No. With a handheld cleaning gun and intuitive control system, the machine is designed to be easy to operate, even for users with limited laser experience.
