Introduction
Laser marking machines are widely used for engraving logos, serial numbers, barcodes, and product identification on metal surfaces. Compared with traditional marking methods, laser technology provides high precision, fast processing speed, and permanent marking results.
Among the various types of laser marking machines, fiber laser marking machines are the most widely used due to their versatility and efficiency. They are suitable for a wide range of materials and applications, especially in metal processing industries.
Fiber laser marking machines are commonly classified into 2D, 2.5D, and 3D machines according to their engraving capability and control technology.
In general, these machines provide different levels of processing capability. A 2D fiber laser marking machine is designed primarily for flat surface marking. A 2.5D fiber laser marking machine supports both standard 2D marking and layered deep engraving. A 3D fiber laser marking machine provides the most advanced capability, enabling curved surface marking while also supporting both 2D marking and deep engraving.
Overview of 2D, 2.5D and 3D Fiber Laser Marking Machines
Before explaining each type in detail, the following table provides a quick overview of their main differences.
| Laser Machine | Main Capability | Surface Type | Typical Applications |
|---|---|---|---|
| 2D Fiber Laser Marking Machine | Surface marking | Flat surfaces | Logos, serial numbers, QR codes |
| 2.5D Fiber Laser Engraving Machine | Deep engraving | Flat surfaces | Coins, molds, relief engraving |
| 3D Fiber Laser Marking Machine | Dynamic focusing | Curved or complex surfaces | Automotive parts, complex components |
This overview helps users quickly understand the main capabilities of each fiber laser marking machine.
What Is a 2D Fiber Laser Marking Machine
A 2D fiber laser marking machine is the most common type of laser marking machine and is mainly used for marking flat surfaces.
In a 2D fiber laser marking machine, the laser beam scans across the X and Y axes to create patterns, text, or codes on the material surface. The focus position remains fixed during the marking process, which means the machine is primarily designed for surface marking rather than deep engraving.
Typical applications include:
Logos and trademarks
Serial numbers
QR codes and barcodes
Product identification
Simple graphics
Because of its high speed and stable performance, 2D fiber laser marking machines are widely used in industries such as electronics, hardware tools, automotive parts manufacturing, and metal processing.

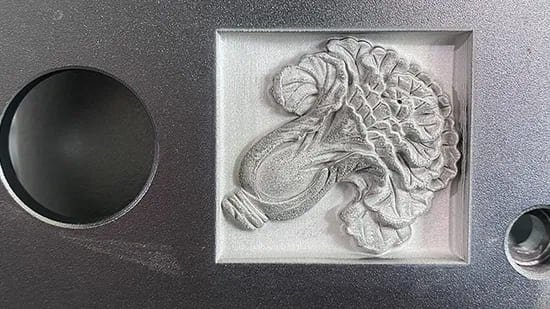

What Is a 2.5D Fiber Laser Engraving Machine
A 2.5D fiber laser engraving machine provides enhanced engraving capability compared with a standard 2D marking machine.
Unlike 2D machines, a 2.5D fiber laser marking machine allows Z-axis control during the engraving process. This enables the laser to remove material layer by layer, making deep engraving and relief carving possible.
Because a 2.5D machine supports both surface marking and deep engraving, it offers greater flexibility for more complex engraving tasks.
Typical applications include:
Coin engraving
Mold engraving
Metal relief carving
Deep engraving on stainless steel or aluminum
Industrial nameplates
2.5D fiber laser machines are commonly used in applications that require both marking and deep engraving capabilities.

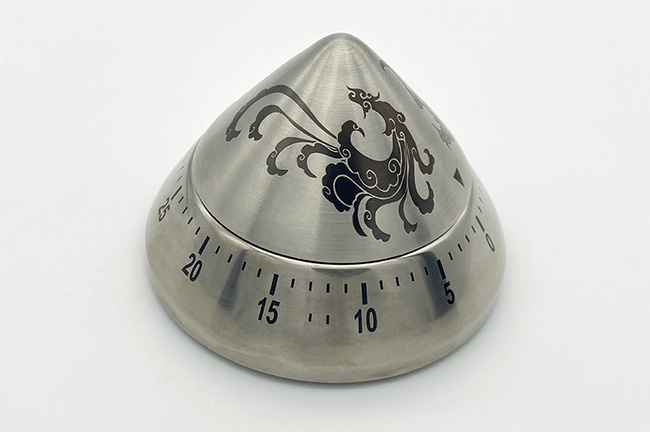

What Is a 3D Fiber Laser Marking Machine
A 3D fiber laser marking machine uses a dynamic focusing system that automatically adjusts the focal position during the marking process.
Unlike 2D and 2.5D machines, a 3D fiber laser marking machine can maintain accurate focus even when marking curved or uneven surfaces. This makes it possible to process objects with complex shapes or height differences.
In addition to 3D surface marking, 3D fiber laser marking machines can also perform standard 2D marking and deep engraving, making them the most versatile fiber laser marking solution.
Typical applications include:
Curved surface marking
Cylindrical objects
Automotive components
Complex metal parts
Industrial molds
Because of its advanced focusing capability, a 3D fiber laser marking machine is ideal for applications that require high precision on complex geometries.
Comparison of 2D, 2.5D and 3D Fiber Laser Marking Machines
The following table summarizes the key differences between these three types of fiber laser marking machines.
| Feature | 2D Laser Machine | 2.5D Laser Machine | 3D Laser Machine |
|---|---|---|---|
| Processing surface | Flat surfaces | Deep engraving | Curved or complex surfaces |
| Z-axis control | No | Layered engraving | Dynamic focus control |
| Typical applications | Logos, codes, identification | Coins, molds, relief carving | Complex parts, curved surfaces |
| Processing capability | Surface marking | Deep engraving | 3D surface marking |
This table clearly illustrates the technical differences between the three types of fiber laser marking machines.
Typical Engraving Depth Comparison
Different fiber laser marking machines provide different engraving capabilities depending on their control technology and focusing methods.
The following table shows a general comparison of their typical engraving capabilities.
| Fiber Laser Machine | Typical Engraving Capability | Main Processing Feature |
|---|---|---|
| 2D Fiber Laser Marking Machine | Surface marking (usually < 0.1 mm) | High-speed marking on flat surfaces |

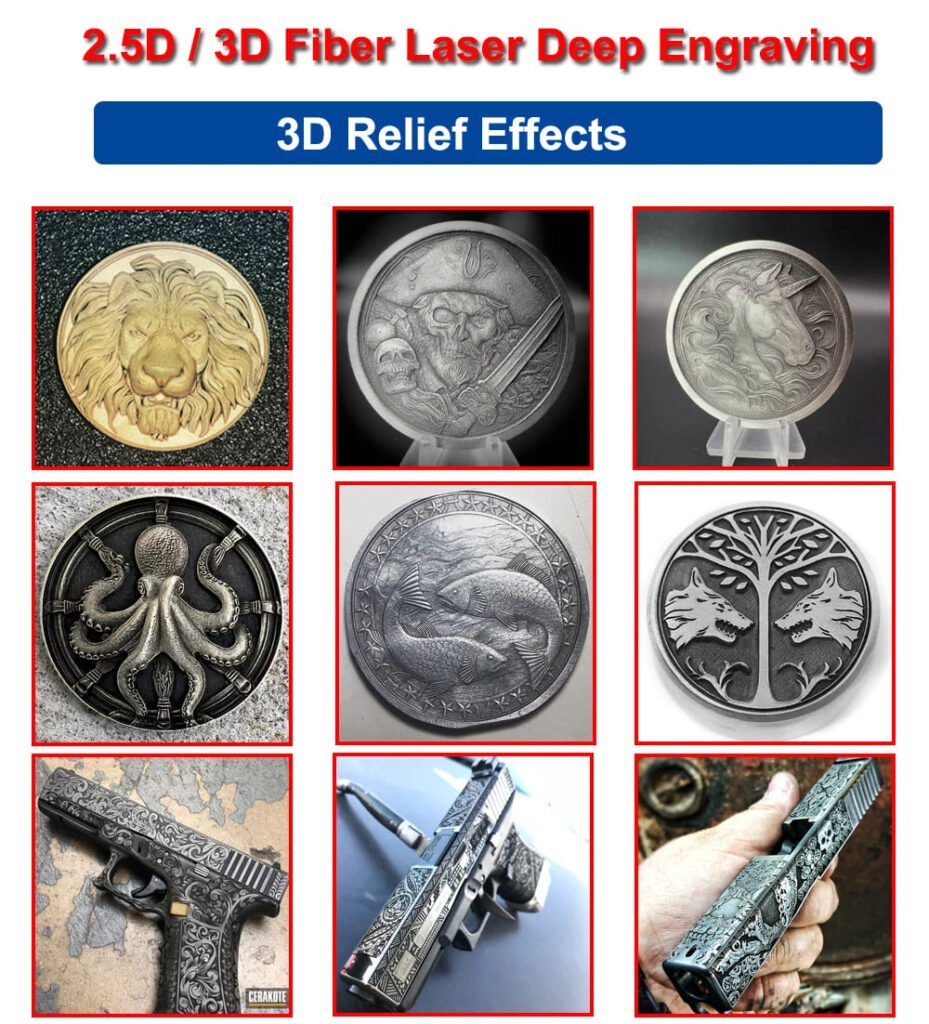

| 2.5D Fiber Laser Engraving Machine | Deep engraving (up to several millimeters depending on material and laser power) | Layered engraving with Z-axis control |
| 3D Fiber Laser Marking Machine | Surface marking, deep engraving, and curved surface marking | Dynamic focusing for complex geometries |
In general:
2D laser marking machines are designed primarily for high-speed surface marking tasks such as logos, serial numbers, and barcodes.
2.5D laser marking machines allow the laser to remove material layer by layer, making them suitable for deep engraving applications such as coins, molds, and metal relief carving.
3D fiber laser marking machines provide the highest flexibility and can maintain accurate focus on curved or uneven surfaces while also supporting standard marking and deep engraving tasks.
How to Choose the Right Fiber Laser Marking Machine
Selecting the right fiber laser marking machine mainly depends on the complexity of the marking task and the surface geometry of the workpiece.
| Application Requirement | Recommended Machine |
|---|---|
| Standard surface marking | 2D fiber laser marking machine |
| Deep engraving | 2.5D fiber laser engraving machine |
| Curved or irregular surfaces | 3D fiber laser marking machine |
Choosing the appropriate machine ensures better engraving quality, higher production efficiency, and more stable processing performance.
Conclusion
2D, 2.5D, and 3D fiber laser marking machines provide different engraving capabilities depending on the complexity of the marking application.
2D machines are mainly used for fast and efficient marking on flat surfaces.
2.5D machines enable layered engraving for deep carving and relief effects.
3D fiber laser marking machines offer dynamic focusing technology, allowing precise marking on curved and irregular surfaces.
Understanding these differences helps users select the most suitable fiber laser marking machine based on their engraving depth requirements, surface geometry, and production needs.
Scotle manufactures 2D, 2.5D, and 3D fiber laser marking machines, providing flexible solutions for different industrial marking and engraving applications.
