The Scotle 6000W Industrial Continuous Wave (CW) Laser Cleaning Machine is a high-power solution designed for rapid removal of heavy rust, thick coatings, and oxide layers over large surface areas. Featuring a continuous-wave fiber laser and industrial water cooling system, it delivers stable output and maximum cleaning efficiency for demanding industrial applications where productivity is critical.
Product Overview

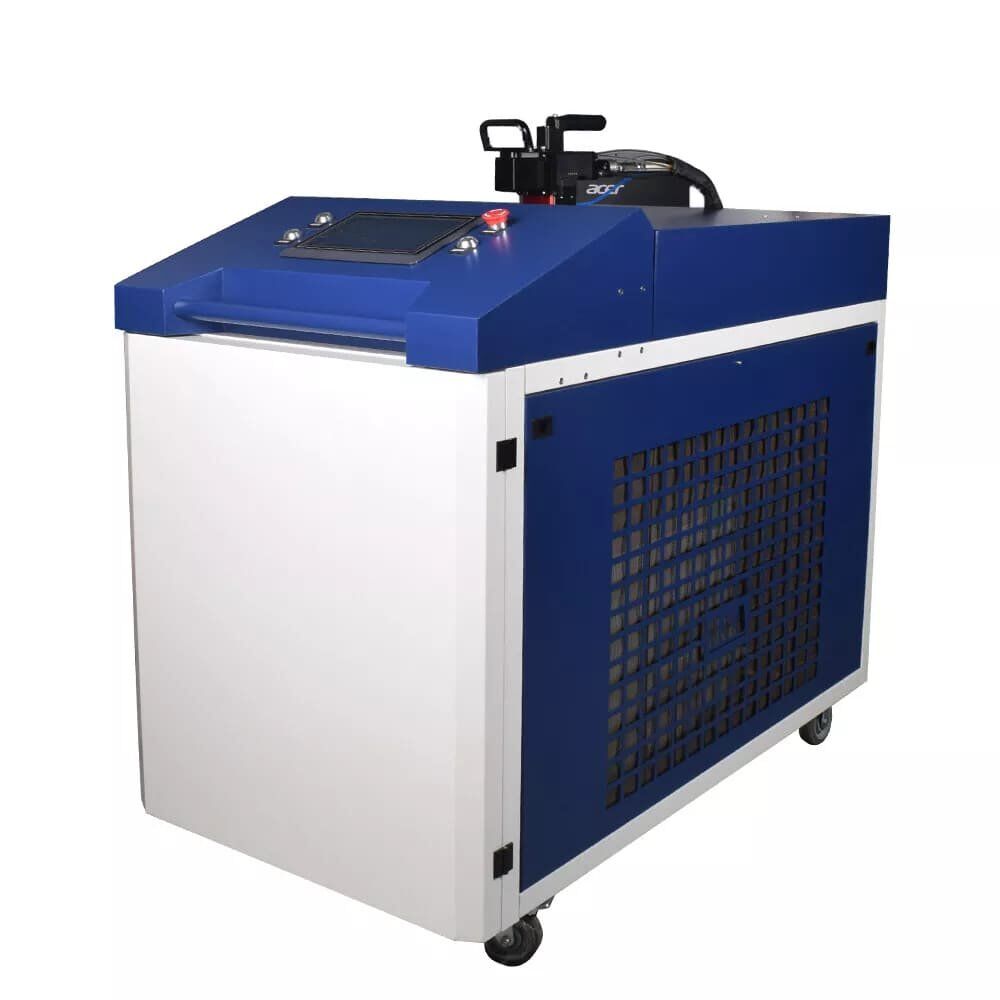

The Scotle 6000W Industrial Continuous Wave (CW) Laser Cleaning Machine is a high-power industrial laser cleaning system engineered for large-area, heavy-duty surface treatment.
Designed for applications where cleaning speed, removal depth, and production efficiency are critical, this CW system uses a continuous-wave fiber laser to deliver stable, high-energy output for efficient removal of thick rust layers, heavy coatings, and oxide scales.
Compared with pulsed laser cleaning machines that focus on precision and minimal thermal input, it is particularly well suited for demanding industrial environments where productivity is the priority.

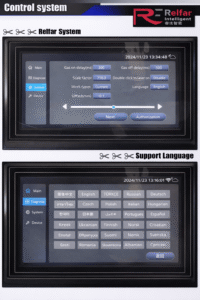

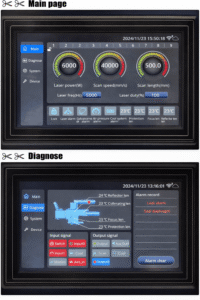

This portable handheld laser cleaning machine features the Relfar intelligent touchscreen control system, making operation simple and minimizing learning time and training costs.
Core Configuration
Laser Power: 6000W (Continuous Wave fiber laser)

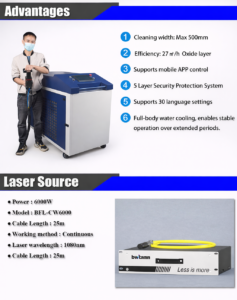

Laser Source Options:
Raycus Fiber Laser
BWT Fiber Laser

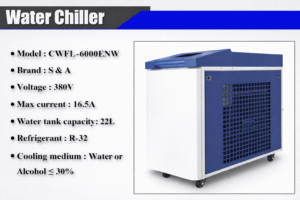

Cooling System: Industrial water chiller
Operation Mode: Continuous laser cleaning
Cleaning Type: Non-contact, high-efficiency thermal ablation
Laser Source Comparison (Raycus vs BWT)
| Item | Raycus 6000W | BWT 6000W |
|---|---|---|
| Industry recognition | Very high (global industrial standard) | Rapidly growing, high-end manufacturer |
| Beam stability | Excellent | Excellent |
| Industrial uptime | Proven long-term reliability | Strong, especially in automated systems |
| Maintenance & service | Widely available worldwide | Competitive, factory-level support |
| Cost efficiency | Stable, slightly higher | Often more cost-effective |
The two options demonstrate similar performance characteristics and power capability. Selection is primarily influenced by budget constraints and customer-specific brand requirements.
Core Components and technical details of this Scotle 6000W Industrial Continuous Wave (CW) Laser Cleaning Machine

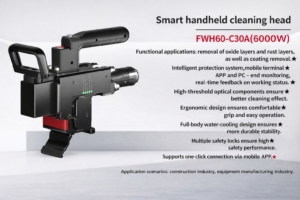

Technical Specifications – Smart Handheld Cleaning Head
| Item | Specification |
|---|---|
| Product Name | Intelligent Handheld Cleaning Head |
| Model | FWH60-C30A |
| Fiber Interface | QBH |
| Wavelength Range | 1070 ± 20 nm |
| Rated Power | ≤ 6 kW |
| Collimation Focal Length | 75 mm |
| Focusing Focal Length | 1500 mm |
| Scanning Width | 200 – 500 mm |
| Scanning Speed | 40,000 mm/s |
| Auxiliary Gas Pressure | ≥ 0.5 – 0.8 MPa |
| Effective Clear Aperture | Ø20 mm |
| Weight | 2.2 kg |
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
Yes. It is designed with a smart touchscreen control system and requires only basic training.
Yes, we provide remote technical support, video guidance, and lifetime service assistance.
Yes, it is suitable for welding stainless steel, carbon steel, aluminum, and galvanized steel.
Yes, we provide operation manuals and video training materials.
Yes, shielding gas such as argon or nitrogen is recommended to ensure high-quality welding results.
No water chiller required, lower maintenance cost, easier installation, and more portable for on-site work.
