Product Description
The Scotle 6000W Handheld Fiber Laser Welding Machine for Heavy-Duty Industrial Applications is a high-power industrial welding solution designed for continuous, high-load production environments. Built for demanding welding tasks, it delivers deep penetration, stable weld seams, and exceptional efficiency on thick metal materials.
Powered by a 6000W fiber laser source, this handheld laser welding machine is ideal for welding carbon steel, stainless steel, aluminum alloys, and other high-strength metals commonly used in heavy machinery, structural fabrication, shipbuilding, and industrial manufacturing. Compared with lower-power laser welders, the 6000W system provides significantly higher welding speed, deeper fusion depth, and superior joint strength.
The ergonomic handheld welding gun allows flexible operation on large workpieces and complex geometries, making it suitable for both workshop and on-site welding tasks. Combined with an industrial-grade water-cooling system and an intelligent control interface, the machine ensures stable performance during long-term, high-duty operation, making it a reliable solution for demanding industrial welding applications.
Core Configuration
Laser Power:
6000W Continuous Wave (CW) Fiber Laser
Laser Source Options:
-
BWT Fiber Laser (Standard Configuration)
-
Raycus Fiber Laser (Optional)
Cooling System:
Industrial Water Chiller
Operation Mode:
Continuous Wave Laser Welding
Welding Type:
Non-contact, high-efficiency laser fusion welding
Laser Source Options Comparison
| Item | BWT Fiber Laser (Standard) | Raycus Fiber Laser (Optional) |
|---|---|---|
| Configuration | Standard | Optional |
| Positioning | High cost-performance industrial solution | Well-known global brand |
| Output Stability | Excellent, suitable for long-duty welding | Excellent, widely recognized |
| Welding Performance | Strong penetration & stable seams | Strong penetration & stable seams |
| Maintenance Cost | Lower | Slightly higher |
| Recommended For | Most industrial users, factories, workshops | Customers with brand preference or specified projects |
👉 Note: Both laser sources are fully compatible with the Scotle 6000W handheld welding system and meet industrial-grade reliability standards.
Outstanding features and technical details
Handheld Welding Head Specifications
| Item | Specification |
|---|---|
| Name | Intelligent single pendulum handheld welding head |
| Model | FWH60-S40C |
| Fiber Interface | QBH |
| Wavelength Range | 1070 ± 20 nm |
| Rated Power | ≤ 6000 W |
| Collimating Focal Length | 50 mm |
| Focus Length | 250 mm |
| Focus Adjustment Range | −10 mm ~ +10 mm |
| Spot Adjustment Range | 0 ~ 12 mm |
| Auxiliary Gas Pressure | ≤ 1 MPa |
| Weight | 1.3 kg |

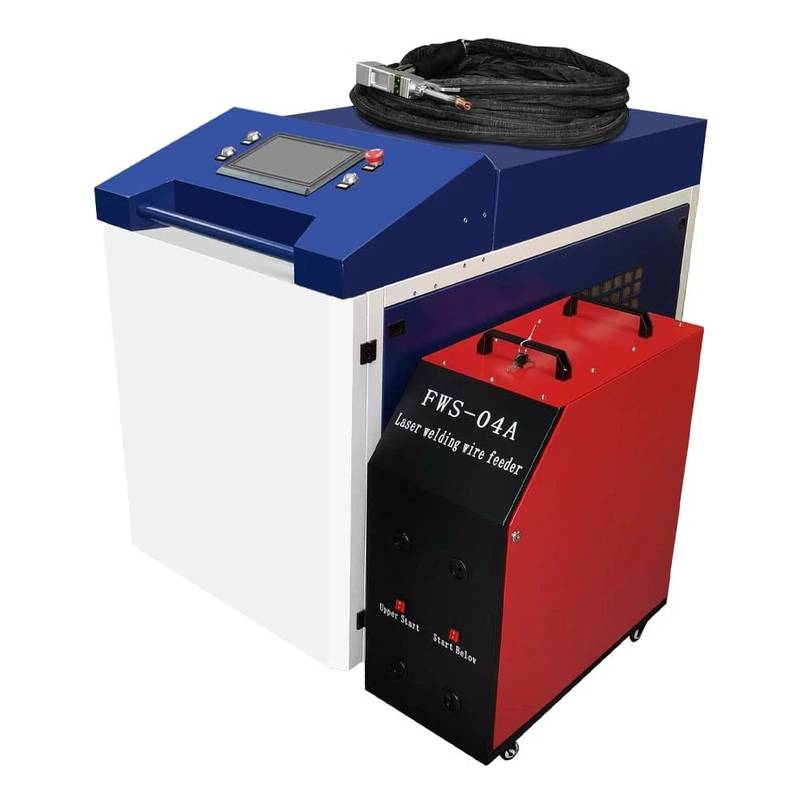

Wire Feeder Specifications (FWS-04A)
| Item | Specification |
|---|---|
| Name | Laser welding four wire feeder |
| Model Number | FWS-04A |
| External Dimensions | 690 mm (L) × 310 mm (W) × 690 mm (H) |
| Max. Welding Wire Core Diameter | Φ 2.0 mm |
| Weight | 38 kg |
| Power Supply | 220 V |
| Reduction Ratio | 1 : 5 |
| Motor Type | 57 stepper motor |
| Max. Welding Wire Weight | 20 kg |
More product images – Scotle 6000W Handheld Fiber Laser Welding Machine
Intelligent control panel for Scotle 6000W handheld fiber laser welding machine
Material cutting thickness varies depending on the laser power level. For reference only.
Scotle 6000W handheld fiber laser welding machine on different metal welding applications
