A high-precision UV laser marking system with CCD vision and conveyor, designed for automated and continuous industrial production.
Product Description

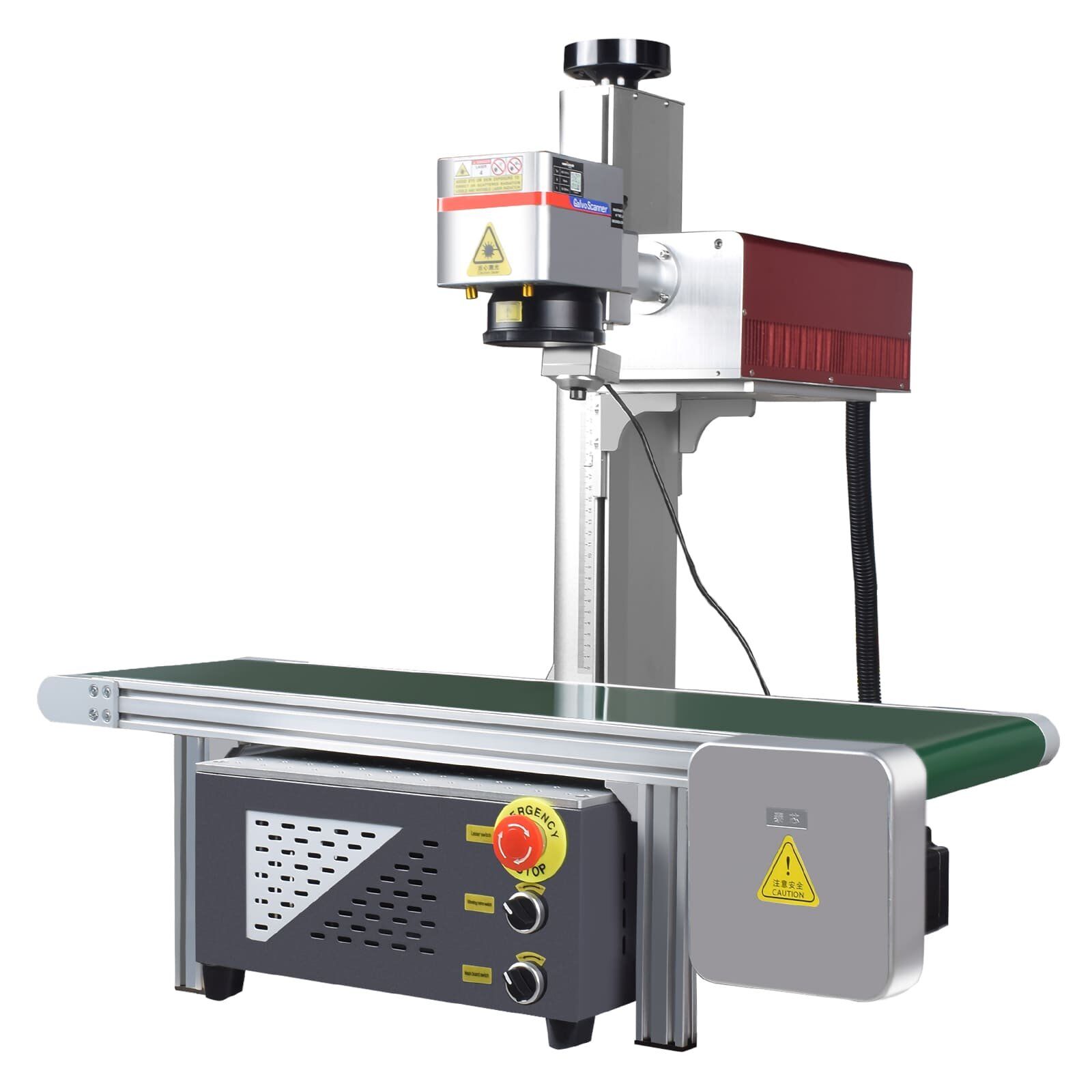

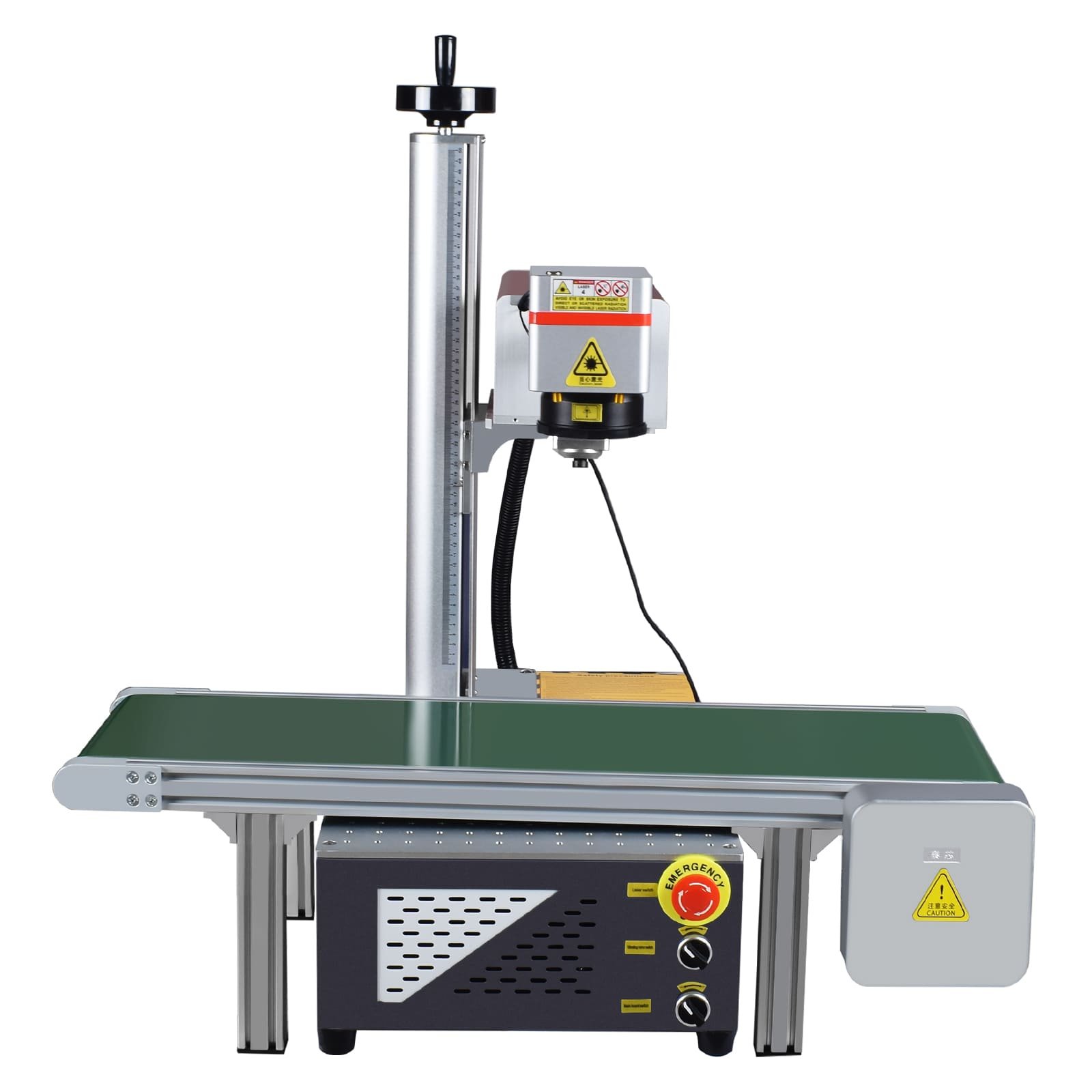

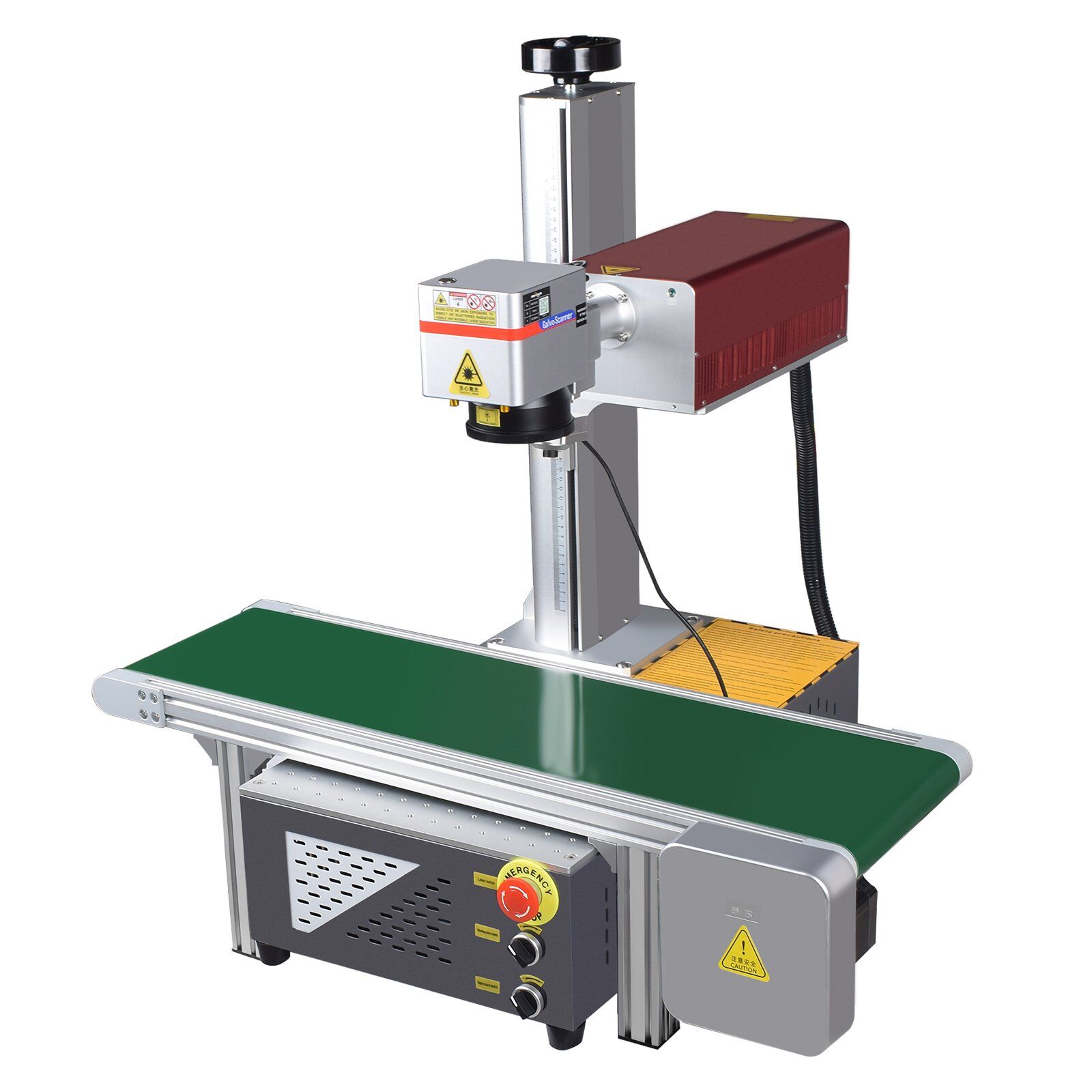

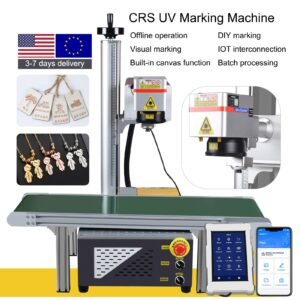

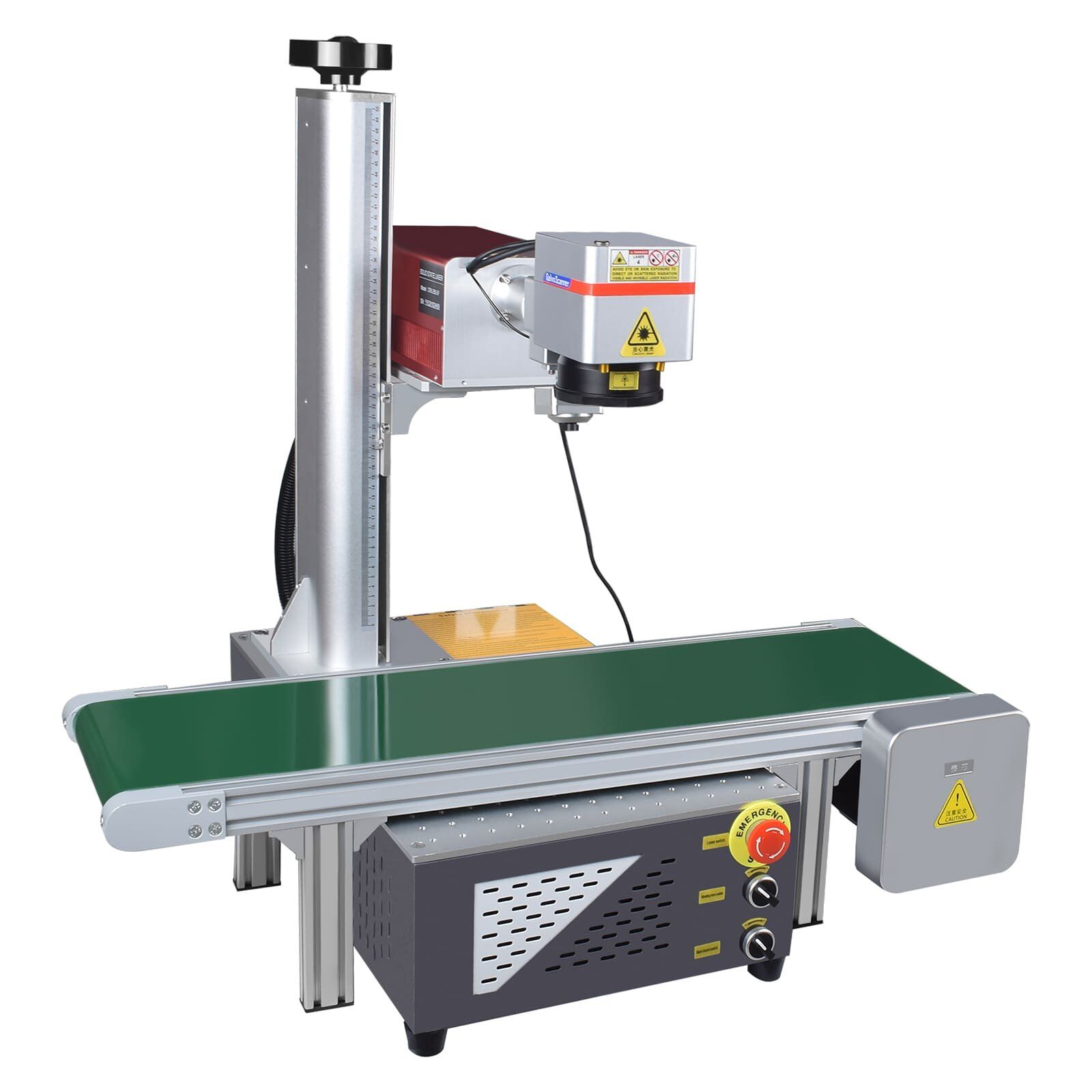

The UV Laser Marking Machine with CCD Vision System & Conveyor is a high-precision automatic laser marking solution designed for continuous industrial production lines. It integrates a 355 nm UV laser source, a CCD visual positioning system, and a conveyor belt module to achieve accurate, repeatable marking on moving or randomly positioned workpieces.

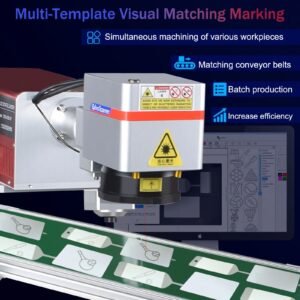

The built-in CCD camera captures real-time images of the workpieces and automatically identifies reference features, allowing the system to correct position and angle deviations without manual alignment. Even when multiple identical parts are placed arbitrarily on the conveyor, each item can be marked at the same predefined position with high consistency.
Using UV laser “cold marking” technology, the machine delivers extremely fine marking quality with minimal thermal impact, making it ideal for applications where surface integrity, precision, and contrast are critical. The system supports multiple marking modes, including standard marking, camera-assisted visual marking, and conveyor-based continuous marking, providing flexible operation for different production requirements.
This machine is widely used in electronics, plastics, glass, PCB, medical products, and other industries that require high-precision, automated laser marking.
Key Features
355 nm UV laser for cold marking with minimal heat-affected zone
CCD vision system for automatic positioning and deviation correction
Conveyor belt for continuous, high-efficiency batch processing
Accurate marking on small, irregular, or randomly placed parts
Supports text, graphics, codes, and precise visual alignment
Stable industrial design suitable for long-time operation
Typical Applications
Electronic components and micro parts
PCB and FPC marking
Plastic and glass products
Medical devices and consumables
Automated production and traceability lines
Technical Specifications
| Category | Specification |
|---|---|
| Laser Type | UV Laser |
| Laser Wavelength | 355 nm |
| Laser Power Options | 5W / 10W |
| Laser Classification | Class 4 |
| Required Optical Density | OD > 6 @ 355 nm |
| Marking Method | Non-contact UV laser marking (cold processing) |
| Vision System | CCD visual positioning system |
| Positioning Mode | Feature recognition with automatic position & angle correction |
| Marking Modes | Standard marking / Visual marking / Conveyor continuous marking |

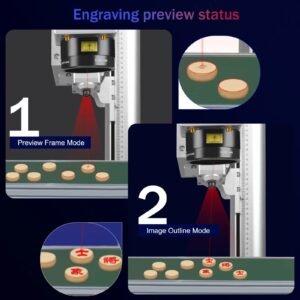

| Canvas Function | Built-in camera canvas for visual alignment and layout |
| Conveyor Type | Integrated desktop automation conveyor belt |
| Conveyor Operation | Continuous batch processing |
| Recommended Conveyor Width | Approx. 200 mm working zone |
| Z-Axis Adjustment | Manual height adjustment with scale ruler |

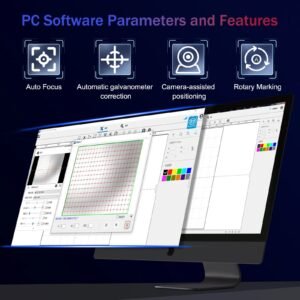

| Control Software | Mantismark |

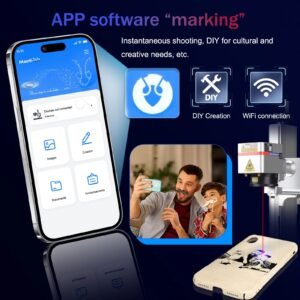

| Connection Methods | Ethernet (LAN) / WiFi |
| Offline Operation | Supported (files downloadable to control panel) |

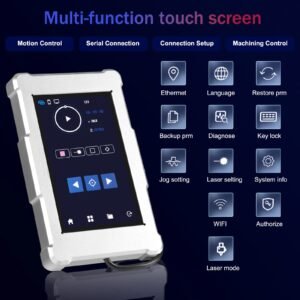

| Control Functions | Start / Pause / Stop / File Download |
| Supported Content | Text, vectors, graphics, vision templates, arrays |
| Cooling System | Air-cooled or Water-cooled (depending on configuration) |
| Cooling Water Temperature | 25 ± 1 °C (water-cooled version) |
| Cooling Medium | Purified water |
| Rated Voltage | 220–240 V AC |
| Rated Frequency | 50 / 60 Hz |
| Safety Features | Emergency stop, laser warning system |
| Compliance Standards | IEC 60825-1, EN ISO 11553-1 |
| Typical Applications | Electronics, plastics, glass, PCB, medical products |
More Product Images – Scotle UV Laser Marking Machine with CCD
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
A UV laser marking machine can process a wide range of heat-sensitive materials, including:
Because UV lasers produce a small heat-affected area, they are suitable for fine marking applications that require high precision and minimal material damage. Sample testing is recommended because results vary according to material composition, color, coating, and surface condition.
The main differences are processing efficiency, suitable applications, cooling method, and cost.
Higher laser power does not always produce a better marking result. A 5W UV laser marking machine is often sufficient for fine marking and heat-sensitive materials, while 10W–20W models are better when higher speed, a larger marking area, or stronger processing capability is required.
Actual performance depends on the material, marking area, field lens, beam quality, parameters, and required result. We recommend providing samples for testing before selecting the power.
Advantages of water-cooled UV laser Marker:
A water-cooled UV laser requires a dedicated temperature-controlled chiller.
Advantages of air-cooled UV laser Marking machine:
Air-cooled configurations are mainly available in stable 5W models. Higher-power air-cooled systems require additional thermal verification. Please confirm the supported duty cycle and operating environment before ordering.
Yes, we provide operation manuals and video training materials.
The designed service life depends on the cooling configuration:
Actual service life depends on:
Maintaining a stable working temperature and keeping the optical system clean can help extend the laser source lifespan.
A higher-power 10W or 15W UV laser can perform multi-pass processing on selected thin materials.
A 2.5D system is recommended because its motorized Z-axis can adjust the focal position as the cutting depth increases.
Reference test limits include:
These values are reference results, not guaranteed cutting capacities. Actual performance depends on:
A sample test is required before purchase. For regular production cutting, a dedicated laser cutting machine is recommended.
