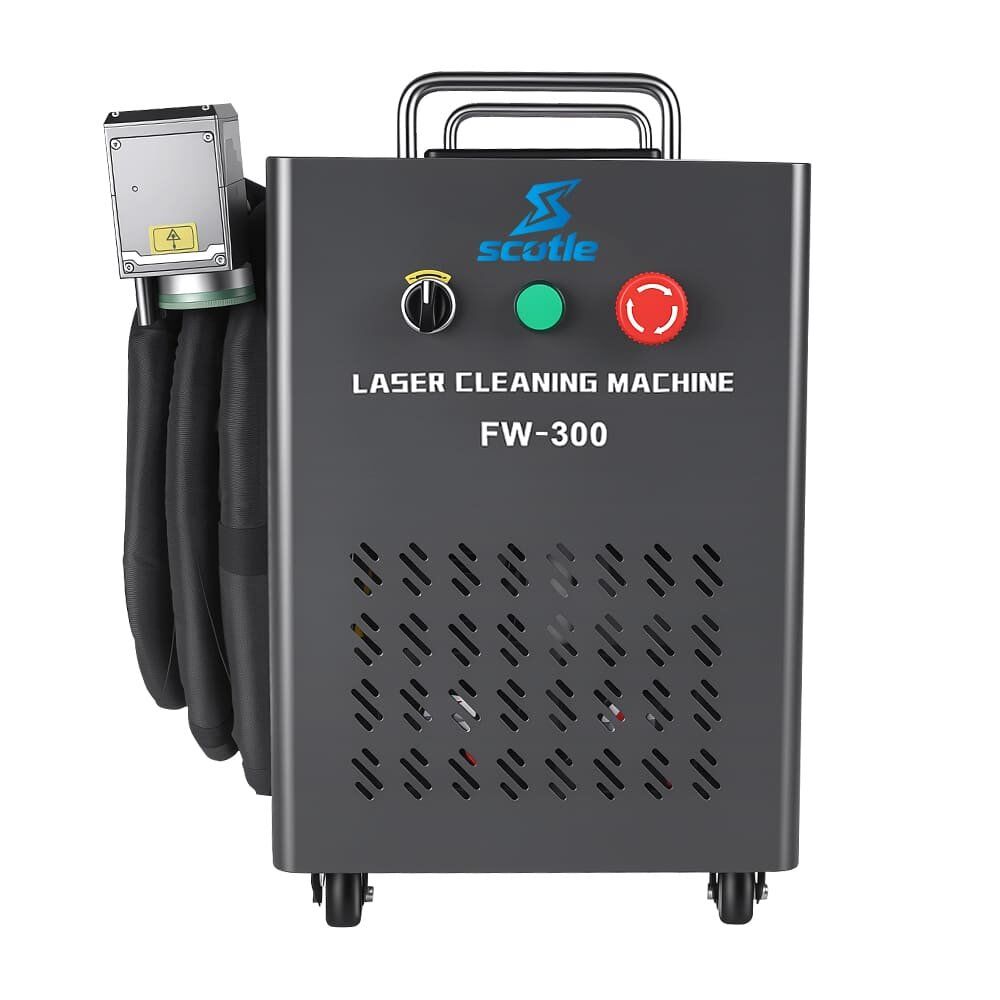

1. Two Functions in One Machine – Combines pulsed laser cleaning and handheld laser marking, reducing equipment investment and saving workspace.
2.Original JPT 300W Pulsed Laser Source – Provides stable beam quality, consistent performance, and long-term reliability. Single-mode Gaussian and multi-mode flat-top configurations are available for different cleaning requirements.
3.Intelligent Dual-Control System – Provides easy touchscreen parameter adjustment and mobile app control for cleaning and marking.
4. Integrated Mobile Design – Features sturdy handles and 360° swivel wheels for easy movement and flexible operation.
5.Lightweight Cleaning Head – Weighs only 760 g and features a 5 m fiber cable for flexible operation.Includes a small control screen for convenient operation and parameter monitoring.
6.Multiple Safety Protections – Ensures safer and more reliable operation.
7. Multiple Scanning Patterns – Different scanning graphics help improve cleaning width, uniformity, and energy distribution for various workpiece shapes.
| Item | Specification |
|---|---|
| Functions | Pulsed Laser Cleaning + Handheld Laser Marking |
| Laser Power | 200W / 300W |
| Laser Source | JPT / GZTECH Pulsed Fiber Laser |
| Beam Options | Single-Mode Gaussian / Multi-Mode Flat-Top |
| Cleaning Area | 125 × 125 mm / 145 × 145 mm |
| Scanning Speed | Up to 30,000 mm/s |
| Cooling Method | Air-Cooled |
| Supply Voltage | AC 100–120V / 200–240V |
| Fiber Cable Length | 5 m |
| Machine Weight | Approximately 52 kg |
Precision Surface Cleaning removes rust, paint, oxides, oil, and other contaminants with controlled heat input and minimal damage to the substrate.
Handheld Laser Marking Supports marking text, logos, numbers, and identification information on metal surfaces through an Android mobile app.
MOQ is 1 set for global orders.
Standard delivery time is 5–14 working days.
We support EXW, FOB, and DDP shipping terms for the USA, Australia, and EU countries.
Shipping methods include air, sea, and express delivery (DHL, FedEx, UPS).
2-year warranty on laser source and lifetime technical support.
Yes, CE, FDA, and IEC 60825-1 certified.
Yes, we support logo, design, and configuration customization.
Yes. It is designed with a smart touchscreen control system and requires only basic training.
Yes, we provide remote technical support, video guidance, and lifetime service assistance.
Tested applications include:
Results depend on the substrate, coating type, thickness, adhesion, color, and laser parameters.
Yes, we provide operation manuals and video training materials.
Cleaning efficiency varies significantly depending on the application. Rust, paint, oil, oxides, molds, wood coatings, and architectural surfaces require different processes.
To estimate productivity, please provide:
A sample test provides the most reliable cycle-time estimate.
Yes. We can provide initial parameter references for common applications.
However, there is no universal setting for every material. Final parameters should be confirmed through testing because the substrate, contamination, thickness, adhesion, field lens, laser-source mode, and required finish all affect the result.
