In this article, we focus exclusively on the working principle of pulsed laser cleaning, explaining the physical and engineering mechanisms that allow a laser cleaning machine to deliver high precision, low thermal impact, and excellent process repeatability in industrial environments.
The Core Principle: Controlling Time Instead of Continuous Heat
Unlike traditional cleaning methods or continuous-wave (CW) laser cleaning, pulsed laser cleaning does not rely on sustained heating.
Its fundamental logic can be summarized as:
The contamination reacts before heat spreads,
and the laser energy ends before the base material heats up.
By precisely controlling time scale and energy concentration, pulsed laser cleaning removes surface layers efficiently while keeping thermal influence on the substrate extremely low.

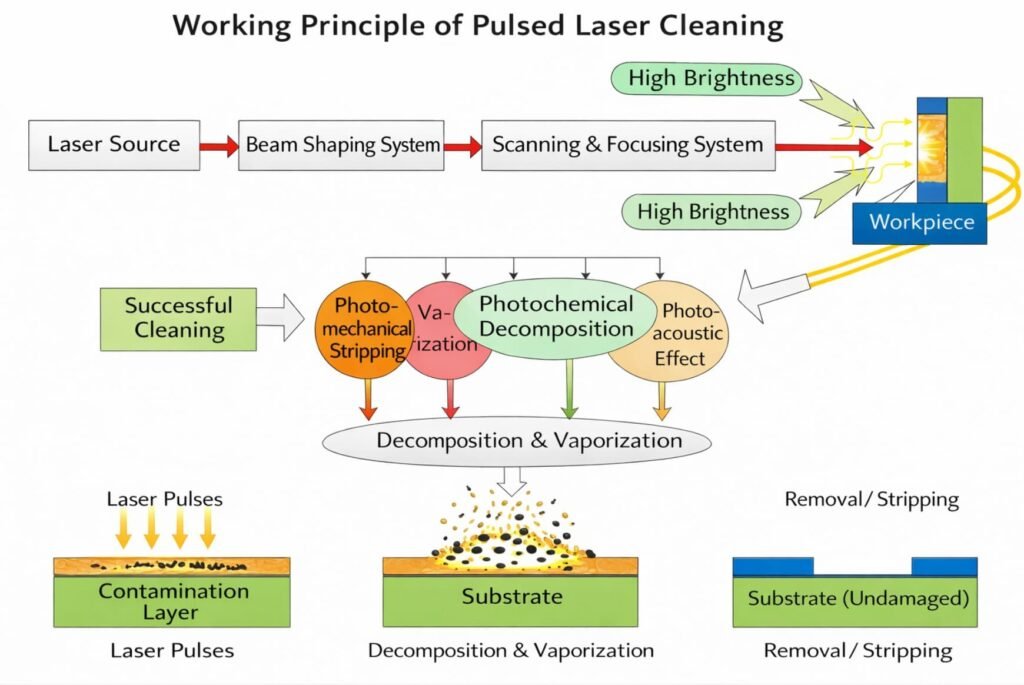

How Pulsed Laser Energy Interacts With the Surface
When a pulsed laser beam is directed onto a contaminated surface, several processes occur in a tightly controlled sequence.
1. Ultra-Short Energy Delivery
- Laser energy is emitted in nanosecond or microsecond pulses
- Each pulse carries very high peak power
- Interaction time is far shorter than thermal diffusion time
As a result, laser energy remains confined to the surface layer.
2. Preferential Absorption by Contaminants
In most real-world applications:
- Rust, oxides, paint, oil, and coatings
- Absorb laser energy more efficiently than the base metal
This causes energy to concentrate within the contamination layer rather than penetrating into the substrate.
3. Rapid Physical Response of the Contamination Layer
Once sufficient energy is absorbed, the contamination layer undergoes one or more physical reactions:
- Instant thermal expansion
- Cracking and delamination at the interface
- Localized vaporization or micro-explosive effects
These reactions weaken or break the bond between the contamination and the base material.
4. Shock Effect and Final Removal
The sudden release of pulsed laser energy also generates:
- Localized pressure changes
- Micro-scale shock waves
These forces lift and eject the already-loosened contamination from the surface, completing the cleaning process.
Why the Base Material Remains Undamaged
One of the most important advantages of pulsed laser cleaning is substrate protection.
Minimal Heat Diffusion
- Heat conduction inside metals requires time
- Pulsed laser interaction occurs faster than thermal diffusion
- The laser pulse ends before heat can propagate into the material
As a result, overall temperature rise in the base material is extremely low.
Controlled Cleaning Thresholds
From an engineering perspective, two thresholds always exist:
- Contamination removal threshold
- Base material damage threshold
Pulsed laser parameters are adjusted to operate between these two limits, ensuring effective cleaning without entering the damage zone.
Key Parameters That Define Cleaning Performance
Cleaning results depend on a combination of parameters, not laser power alone:
- Pulse duration
- Pulse energy
- Repetition frequency
- Energy density (fluence)
- Scanning pattern and overlap
This explains why machines with the same nominal power rating can produce very different cleaning results in practice.
Engineering Advantages Derived From the Principle
Because of this working mechanism, pulsed laser cleaning naturally provides:
- Extremely small heat-affected zones
- High surface control and consistency
- Excellent repeatability in batch production
- Suitability for precision and high-value components
These advantages are not marketing claims—they are direct outcomes of the underlying physics.
Conclusion
The working principle of a pulsed laser cleaning machine is fundamentally based on precise control of time and energy distribution.
Instead of removing contaminants through prolonged heating, pulsed laser cleaning uses instantaneous high-energy interaction to separate surface layers while keeping the base material intact.
Understanding this principle is essential for correctly selecting laser parameters, optical configurations, cleaning heads, and power levels—topics that will be explored in the next articles of this blog series.
