Introduction
Laser marking machines use focused laser energy to create precise and permanent marks on the surface of materials. Unlike traditional marking methods that rely on inks, stamps, or mechanical contact, laser marking modifies the material surface through controlled laser energy.
Because the process is highly precise and non-contact, laser marking has become an efficient solution for modern product identification and traceability.
Understanding how a laser marking machine works helps users better understand the technology behind high-precision marking systems. In this article, we explain the working principle of laser marking machines and the key components that make the system operate efficiently.
Overview of Laser Marking Technology
Laser marking works by directing a high-energy laser beam onto a very small area of the material surface. When the concentrated laser energy interacts with the material, it causes controlled physical or chemical changes.

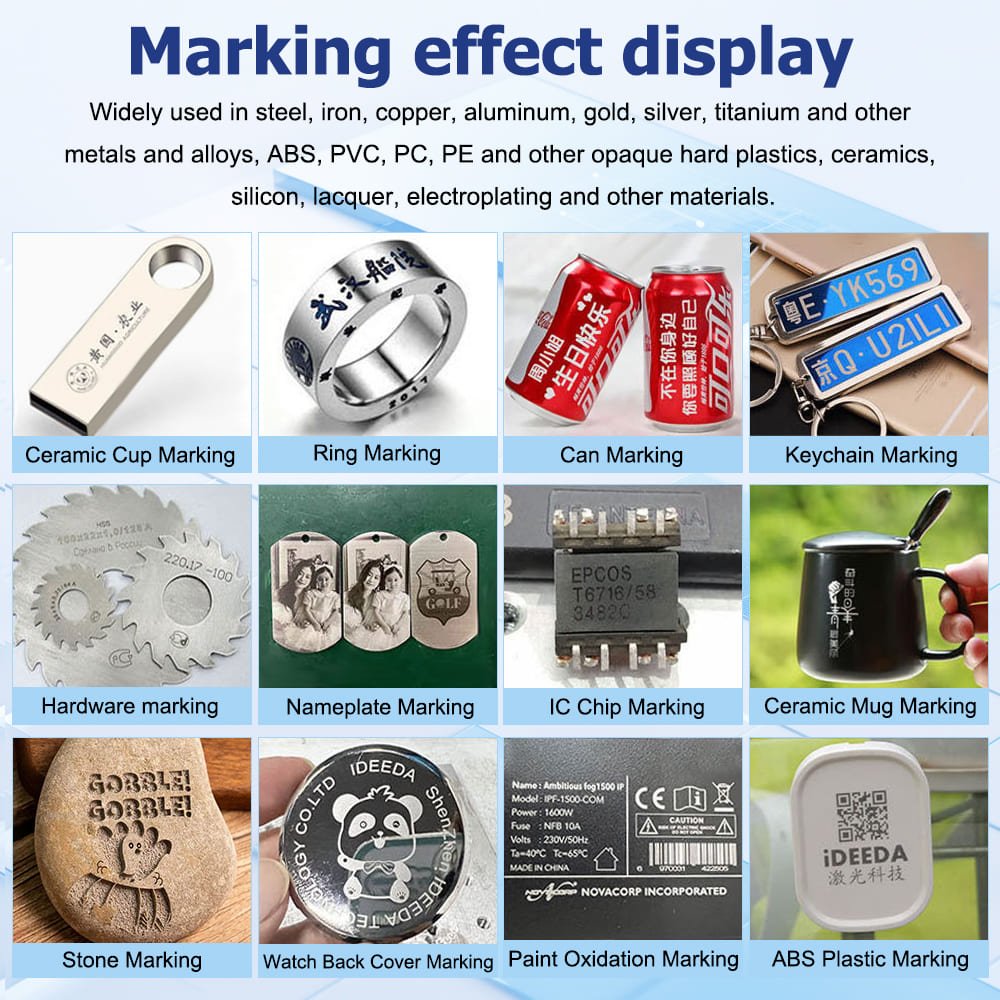

These surface reactions create clear and permanent markings such as:
Text
Logos
Serial numbers
Barcodes
QR codes
Because laser marking does not require mechanical contact or consumables, it provides high precision, excellent durability, and consistent marking quality.

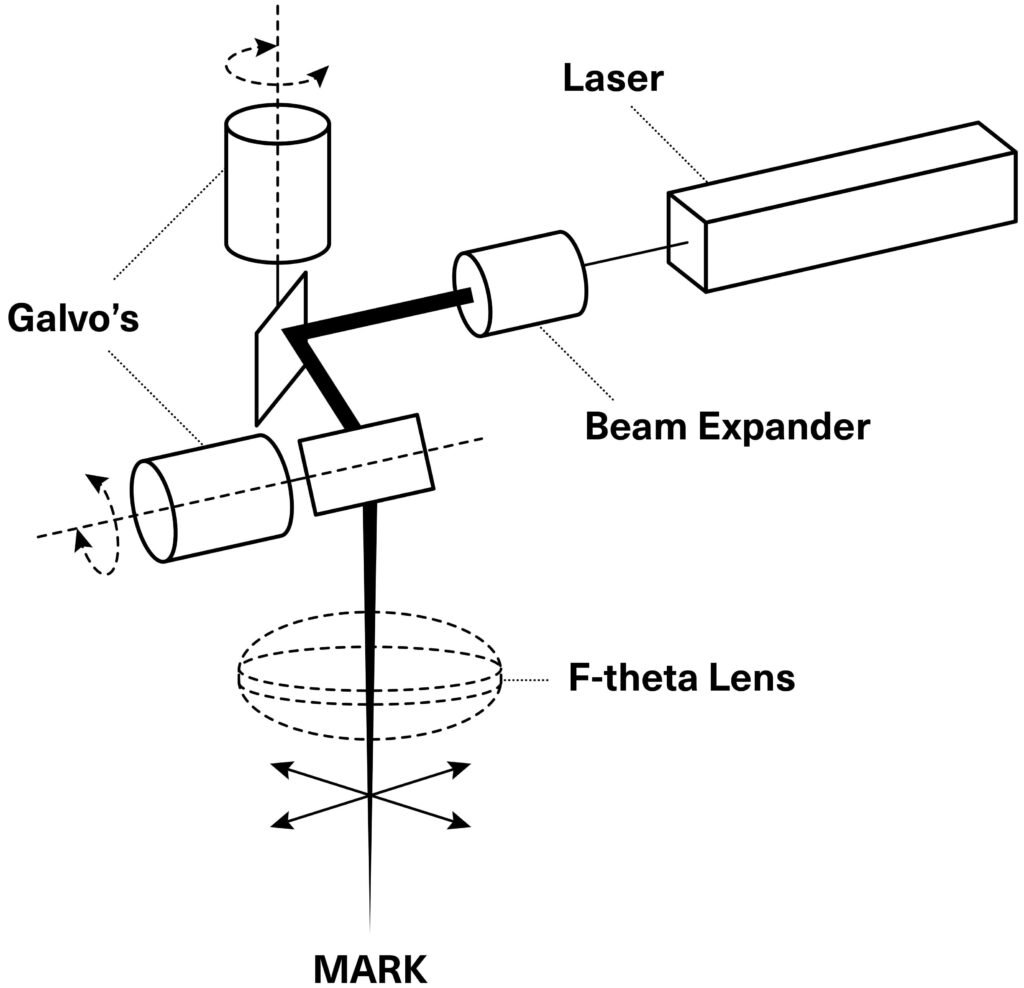

Working Principle of a Laser Marking Machine
The working principle of a laser marking machine is based on focusing laser energy onto the material surface and controlling the beam movement with high precision.
The typical marking process includes four main stages.
1. Laser Generation
The process begins with a laser source, which generates a concentrated laser beam with a specific wavelength and energy level.
The laser source provides the energy required for marking and determines how the laser interacts with different materials.
2. Beam Scanning
A galvanometer scanning system (galvo) moves the laser beam rapidly across the marking area.
The system uses high-speed mirrors to deflect the beam along the X and Y axes, allowing the machine to draw characters, patterns, and codes with extremely high accuracy.
3. Laser Focusing
An F-theta focusing lens concentrates the laser beam into a very small spot on the surface of the material.
By concentrating the energy into a small point, the laser can precisely modify the surface structure of the material.
4. Surface Reaction
When the focused laser beam reaches the surface, the material undergoes a controlled reaction that forms a permanent mark.
Since laser marking is a non-contact process, it does not produce mechanical stress or deformation on the workpiece.
How Laser Marking Creates Permanent Marks
Laser marking creates visible marks by modifying the surface of a material through several physical mechanisms.
Laser Ablation
Laser ablation occurs when the laser energy removes a thin layer of material through rapid heating and vaporization.
This process is commonly used when the marking requires engraving or surface removal.
Oxidation
When certain metals are heated by laser energy, the surface reacts with oxygen and forms a colored oxide layer.
This method is often used for color marking on metal surfaces.
Carbonization
Laser energy can carbonize organic materials, turning the surface darker and producing strong contrast.
This mechanism is often used when marking materials such as:
Plastics
Paper
Wood
Key Components of a Laser Marking Machine
A laser marking system consists of several critical components that work together to ensure stable and accurate marking performance.

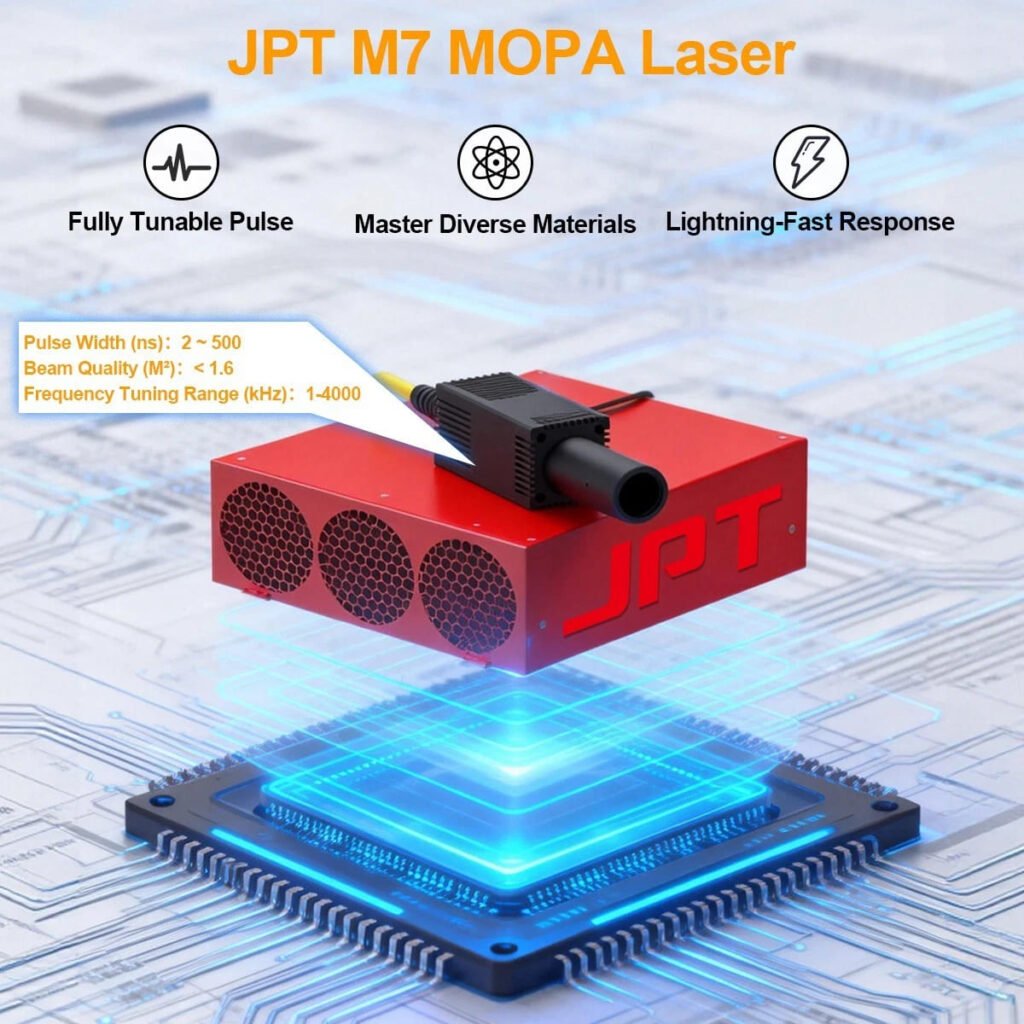

1. Laser Source
The laser source is the core component of the system. It generates the laser beam used for marking.
The laser source determines key parameters such as wavelength, energy output, and marking capability.

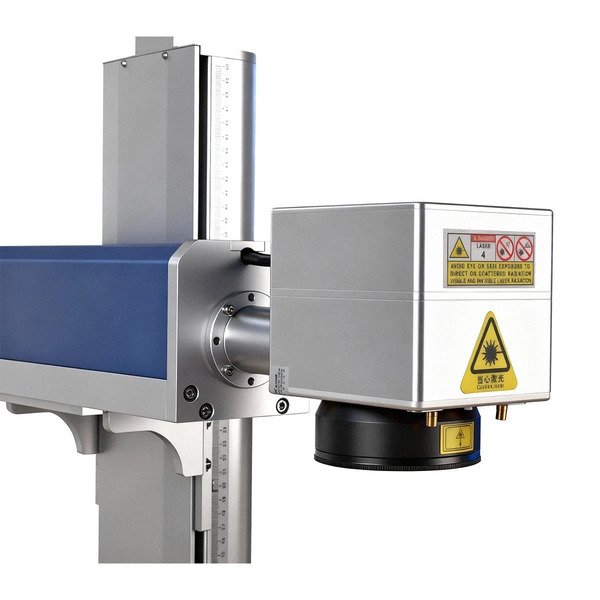

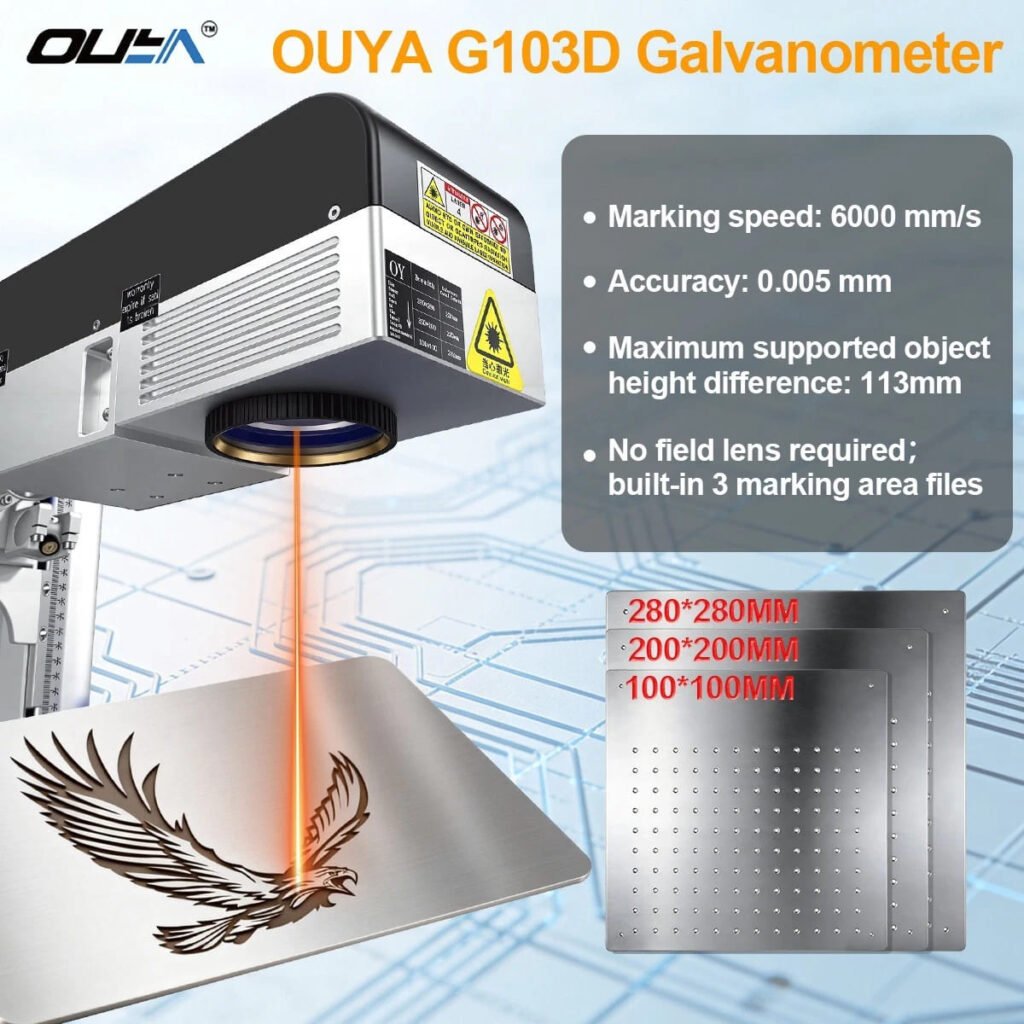

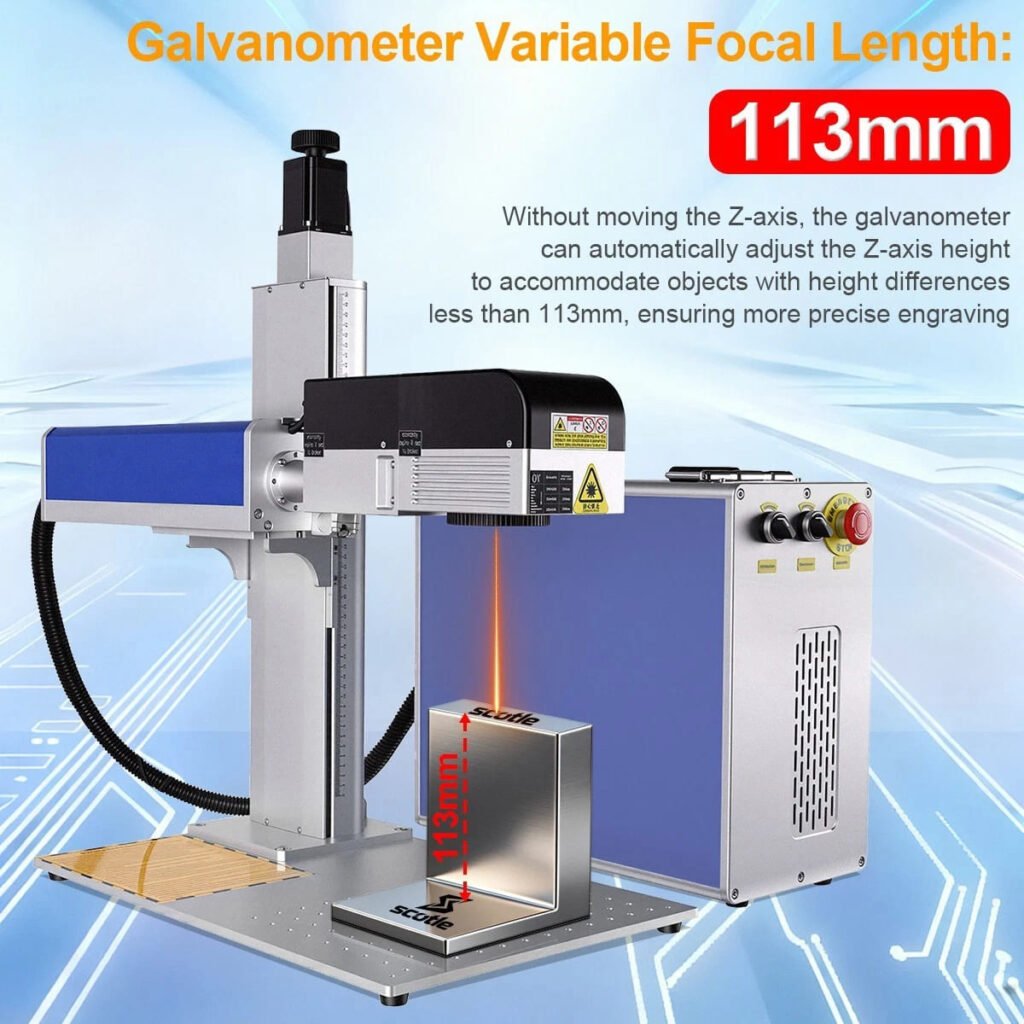

2. Galvo Scanning System
The galvo scanner controls the movement of the laser beam.
By using high-speed mirrors, the system directs the laser beam across the marking area with extremely high speed and accuracy.
Modern galvo scanners can reach marking speeds of several thousand millimeters per second.

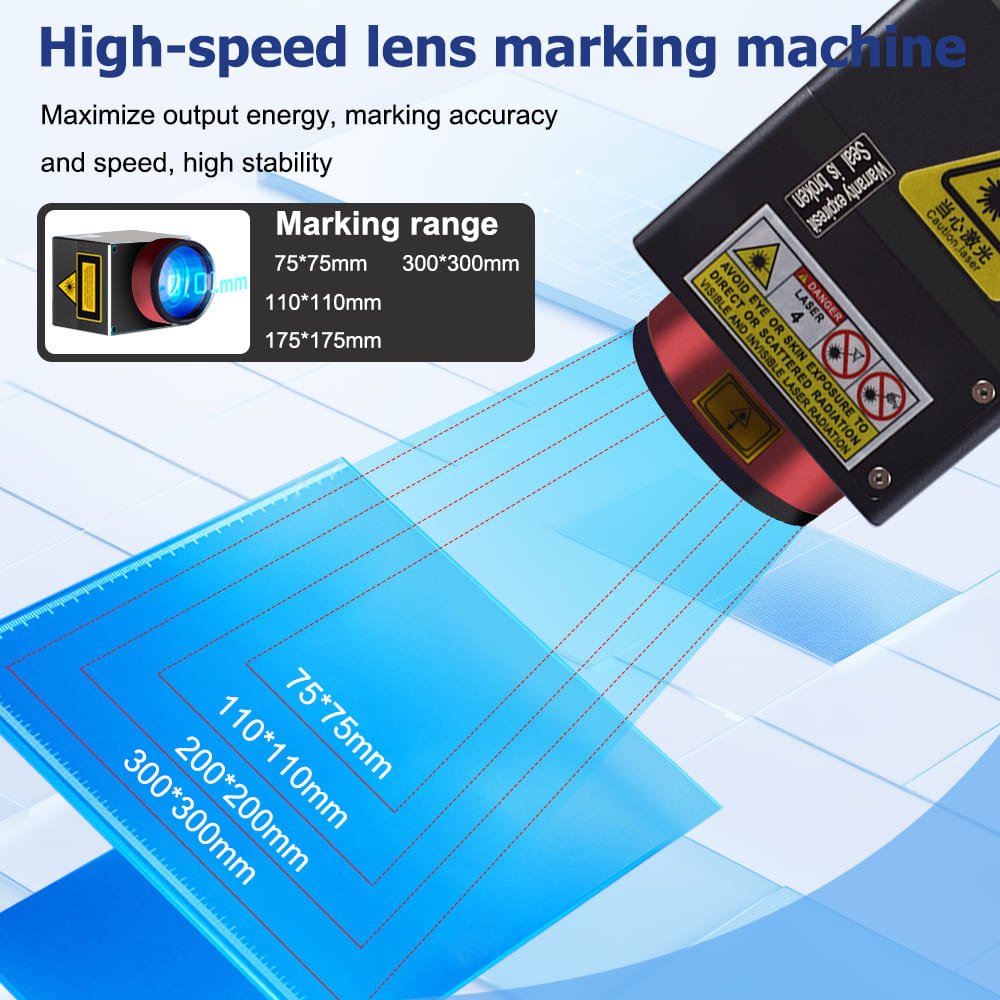

3. F-Theta Focusing Lens
The F-theta lens focuses the laser beam onto the marking surface.
Its functions include:
Concentrating laser energy
Maintaining consistent focus across the marking area
Defining the size of the marking field
Different lenses allow different marking areas depending on the application.

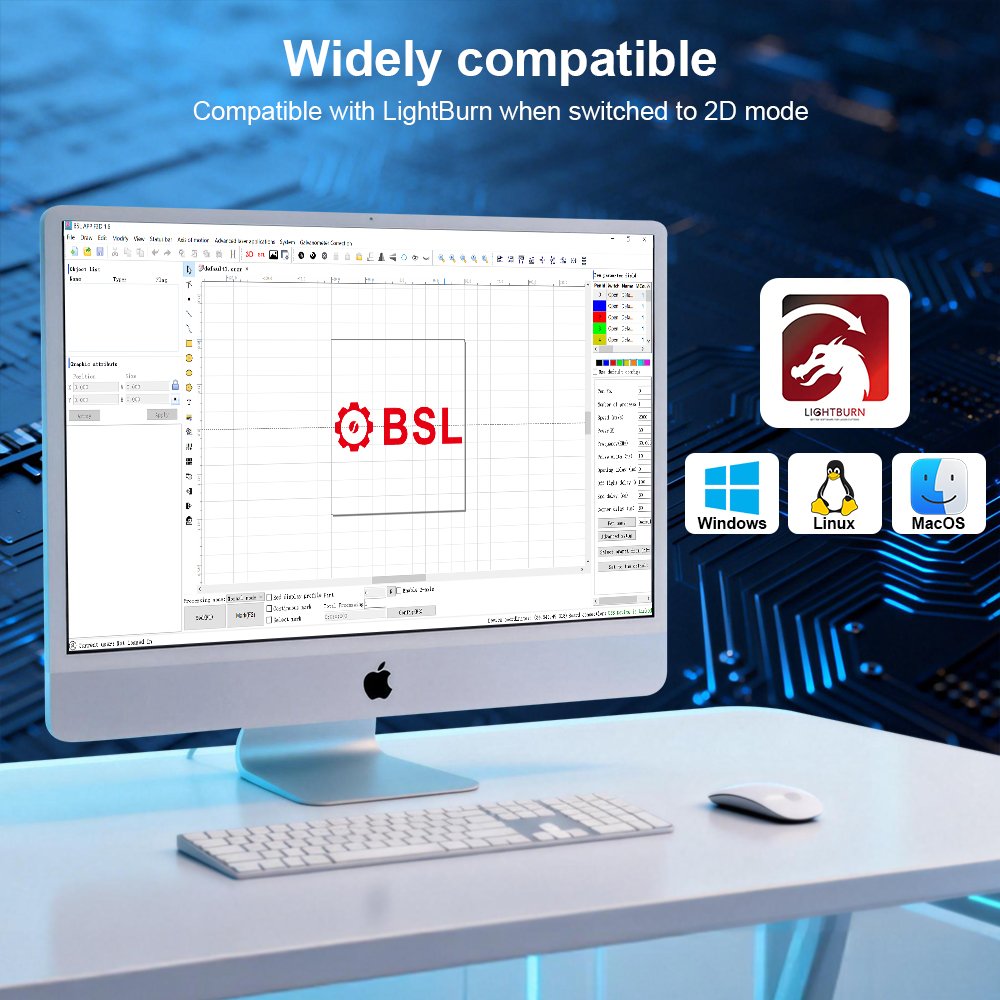

4. Control Software
Laser marking machines are operated through specialized software that converts graphics and text into laser scanning paths.
The software allows operators to adjust parameters such as:
Laser power
Marking speed
Pulse frequency
Line spacing
These settings determine the final marking quality and efficiency.

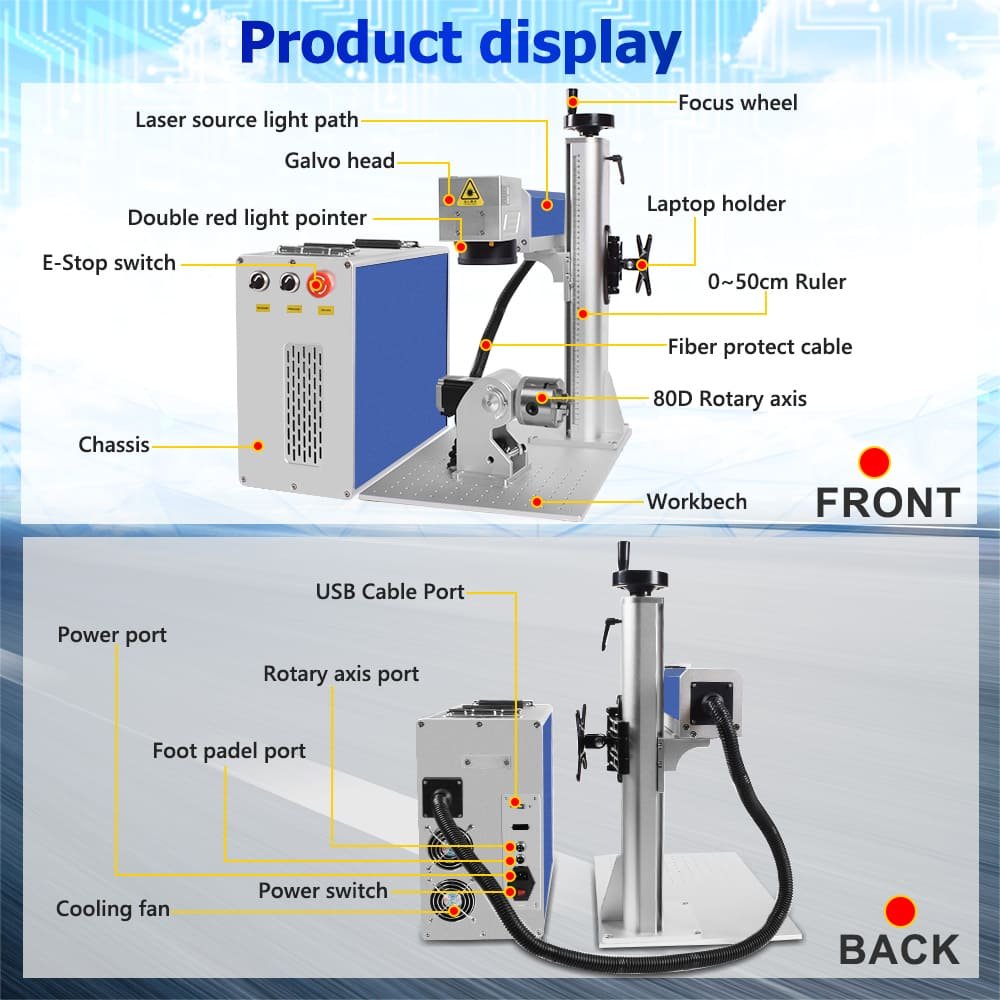

5. Machine Structure and Work Platform
The machine frame and worktable support the workpiece and maintain stability during the marking process.
Additional accessories may include:
Adjustable lifting columns
Rotary attachments for cylindrical objects
Protective safety enclosures
These components help improve flexibility and safety during operation.
Advantages of Laser Marking Technology
Laser marking technology offers several advantages compared with traditional marking methods.
Non-contact processing
High precision and accuracy
Permanent and wear-resistant markings
No consumables such as ink or chemicals
High marking speed
Suitable for automated production systems
Because of these advantages, laser marking has become a widely used solution for modern manufacturing environments.
Conclusion
Laser marking machines create permanent marks by focusing a high-energy laser beam onto the material surface and controlling the beam with high-speed scanning systems. The coordination of the laser source, galvo scanner, focusing lens, and control software enables precise and efficient marking performance.
Understanding how these components work together helps users better understand the technology behind modern laser marking systems and how high-precision marking can be achieved in various production environments.
Scotle currently supplies two main types of laser marking machines: JPT MOPA fiber laser marking machines and UV laser marking machines.
